Jet Master
BC-500
STANDARD FEATURES

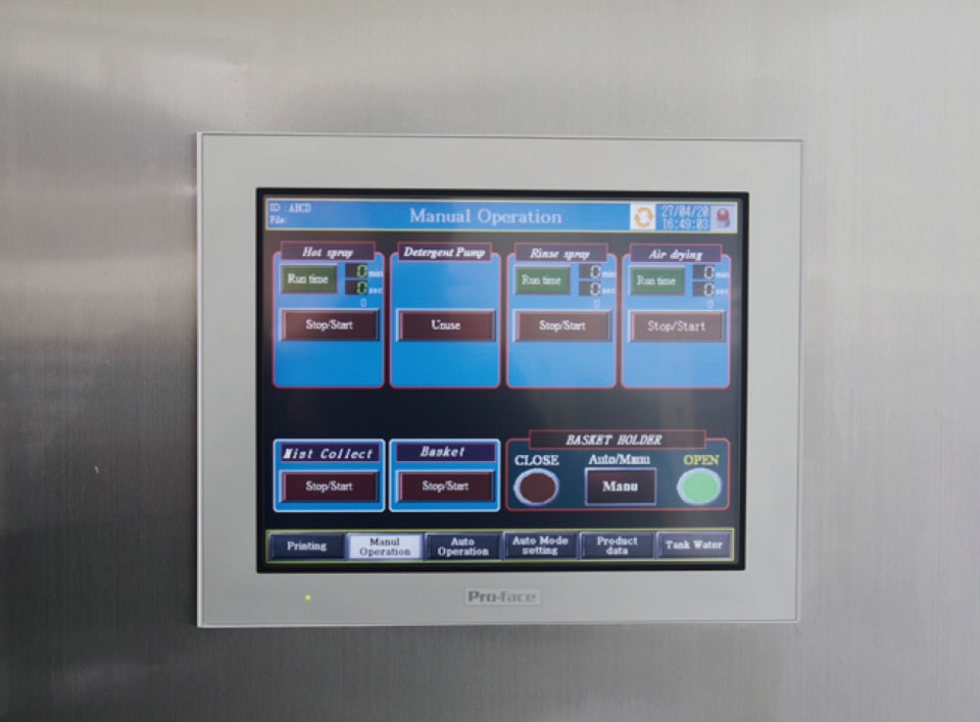

- Each process fully automated by PLC Control
- Fully GMP compatible
- Process time & operator ID validation record by printer

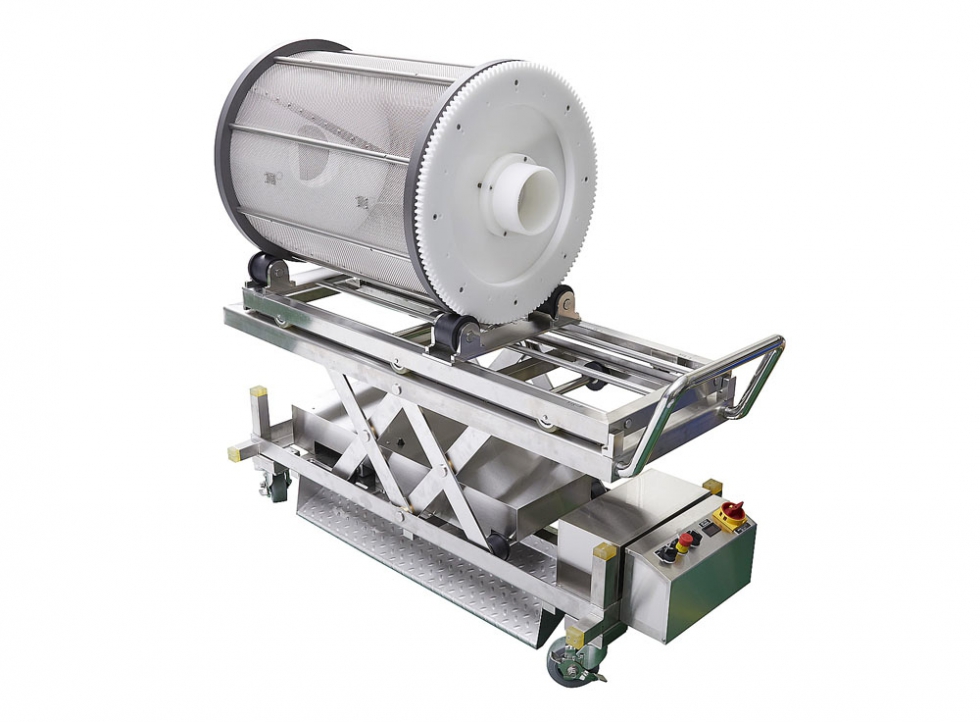

- Various size dryer baskets can be cleaned.
| Technical Specifications | BC-500 Technical Specifications |
| Power Consumption | 13.5kW |
| Voltage | 220 V, 380 V / 3 Ph |
| Frequency | 50 /60 Hz |
| Main Motor | 0.4 kW |
| Water Pump | 3.5kW |
| Ring Blower | 8.6kW |
| Air Pressure | 5kg/cm???? |
| Mist | 0.4 kW |
| Detergent Pump | 0.03 kW |
| Water consumption | Max 60 liter/min |
| Fitting type | Hose nipple (cold, hot, purified water) |
| Dimension | 1,545 x 2,400 x 1,840(H) mm |
CATALOG DOWNLOAD
-
BC-500
pdf | 452.37 KB | 1263 hits
