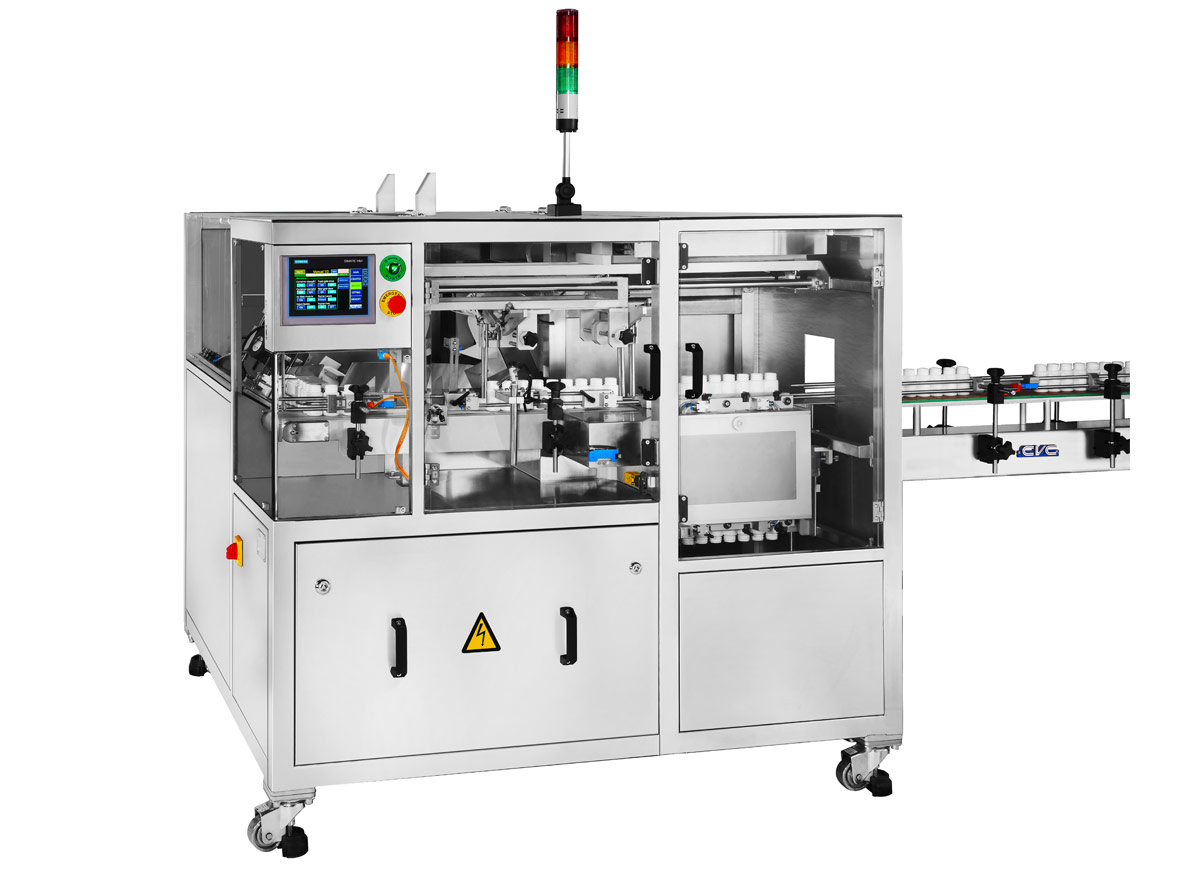

BOTTLE UNSCRAMBLER & AIR RINSER

CVC 1263

The CVC 1263 Bottle Unscrambler is designed to automatically feed bottles from a bin and place them upright onto a conveyor at speeds of up to 80 bottles per minute. The CVC 1263 is built on a Siemens control system including a HMI panel. Options include ionized air rinse with vacuum, fallen bottle sensor with return to bin, low level hopper sensor, tower lamp, and static eliminator bar.

STANDARD FEATURES

  • Display touchscreen instruction for machine operation is available in two languages
  • Interlocked safety guarding
  • Low level hopper sensor
  • Bottle backlog sensor at outfeed
  • Type 304 stainless steel bin, frame, enclosure panels
  • Type 316L stainless steel air rinse nozzles
  • CE standard PC safety guard
  • ISO 9001:2015 certified
CVC 1263
CVC 1263

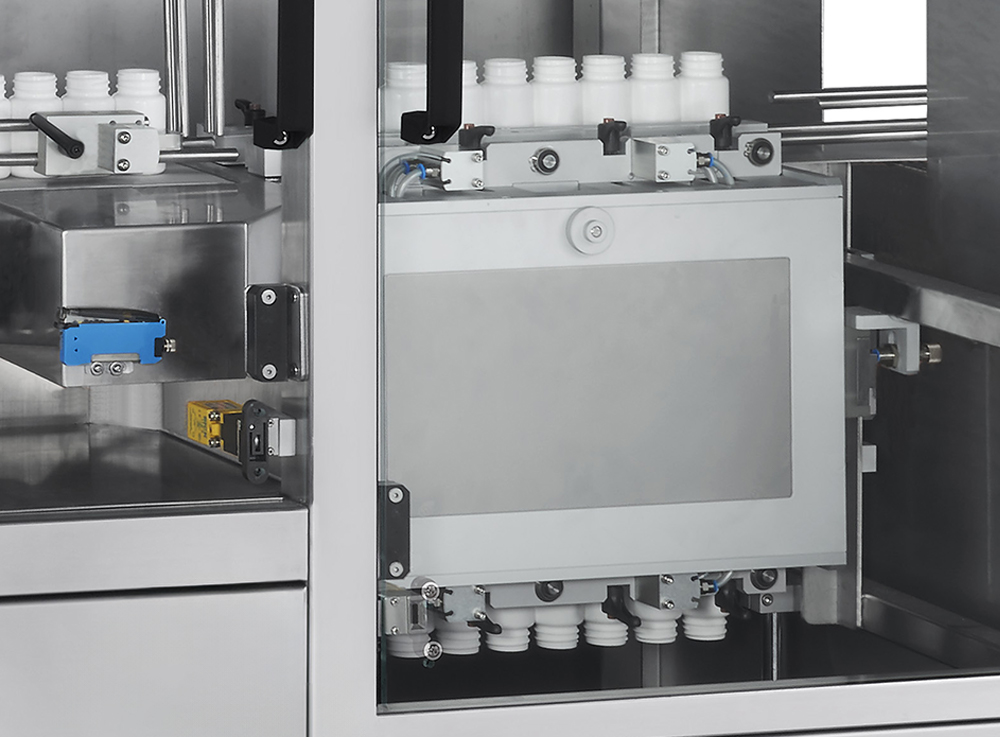

REJECT STATION
REJECT STATION
CVC 1263
CVC 1263
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Ionized air rinse station
  • Vacuum block detection assembly
  • Upside down bottle, fallen bottle reject assembly
  • 21CFR Part 11 compliance
  • OPC UA for data collection
  • Conveyor
  • 3-color stack light
  • Bottle format changeover parts

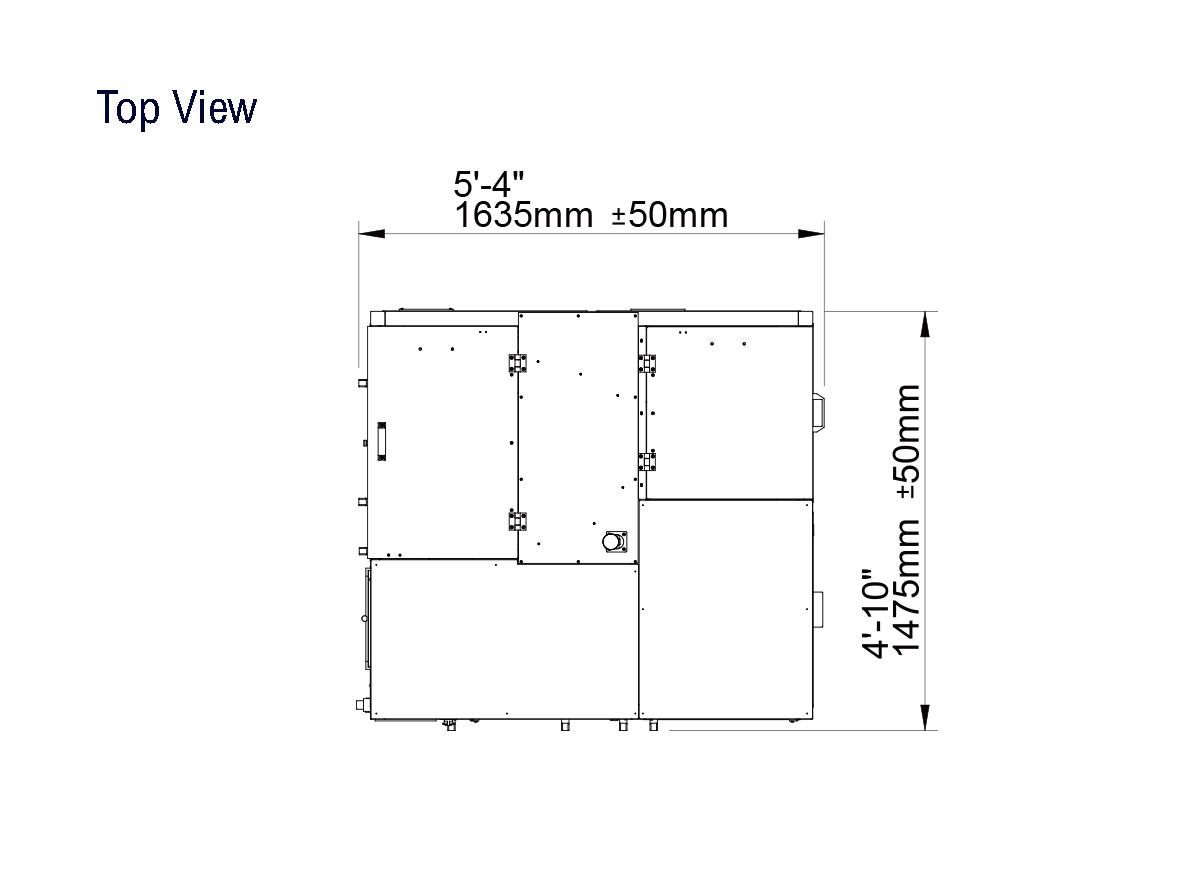

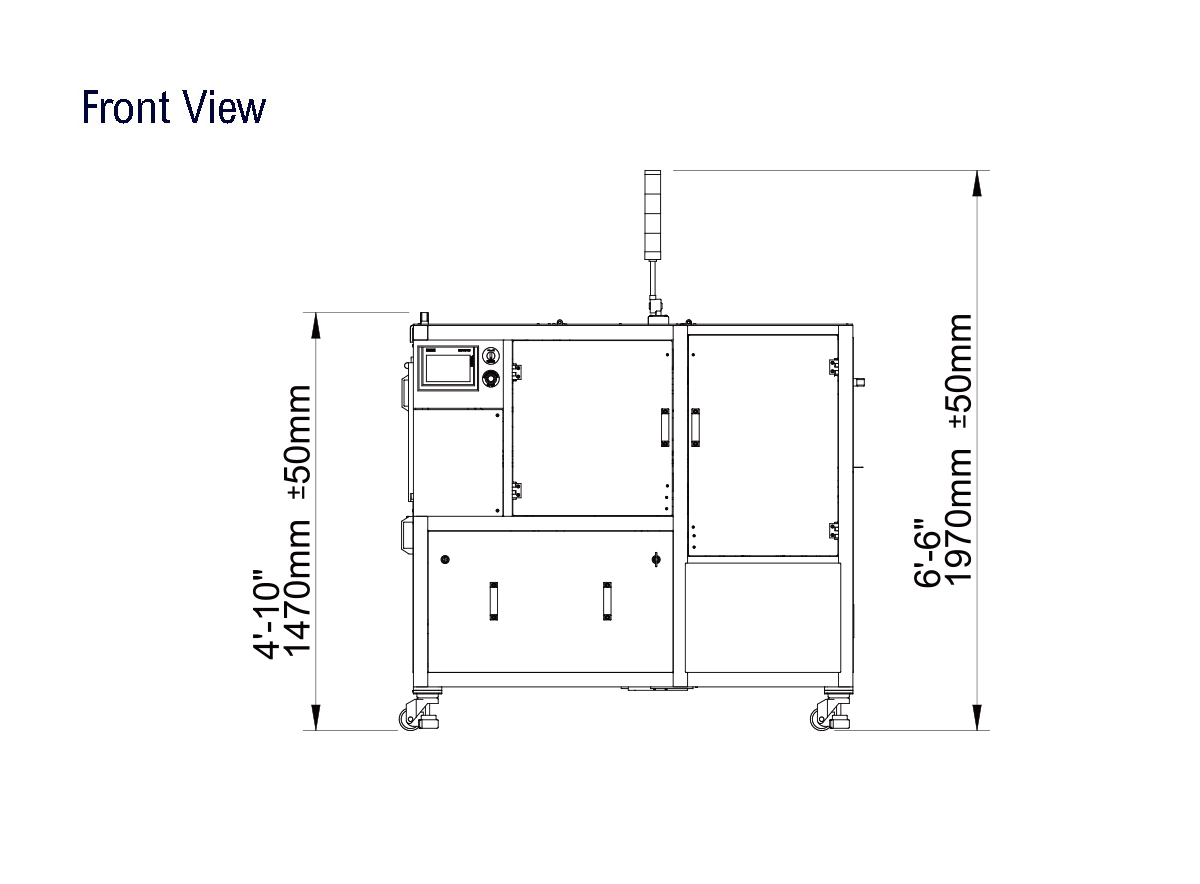

MACHINE LAYOUTS:






The dimensions shown are for standard machine. Optional conveyor can be offered based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year warranty. Full Warranty details are included in our equipment proposals.


Technical Specifications CVC 1263 Technical Specifications
Type U4
Max. Productivity Up to 80 Bottles per Minute(BPM) based on 100ml
(subject to trial confirmation) round bottle
Power source 220 V, 50 Hz, 1 Phase
Power Consumption 1,700 VA (7.8 Amp)
Air Pressure Minimum 87 psi (ISO 8573-1)
Air Consumption 3.5 cfm (100 L/sq. cm) on standard machine
without optional ionized air rinse assembly.
(45.5 cfm when equipped with Air Rinse Assembly)
Consumption Machine Dimensions 5'-4" x 4'-10" x 6'-6" (1631 x 1472 x 1970 mm) (L x W x H)
Air 45.5 cfm (1,300 NLit/m)
Speed Up to 80 Bottles per Minute (BPM)
Bottle Height 2" to 5 ⅞" (50mm - 150mm)
Bottle Diameter 1 ⅛" to 3 ⅛" (30mm - 80mm)
Packing Weight 2204 lbs. (1000 kg)
Machine Weight 1543 lbs. (700 kg)
Noise Level 78 dB
