WALKING BEAM LIQUID FILLER

CVC 3036-8H

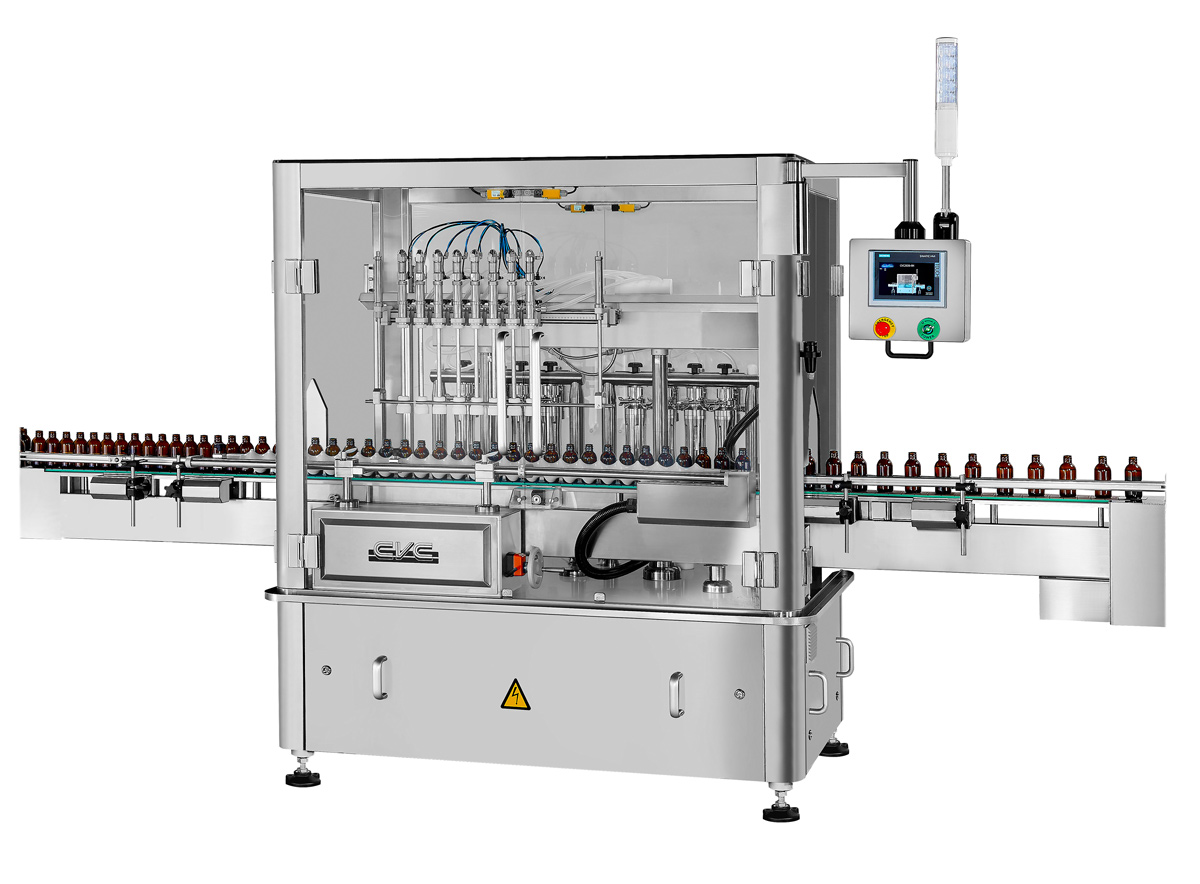

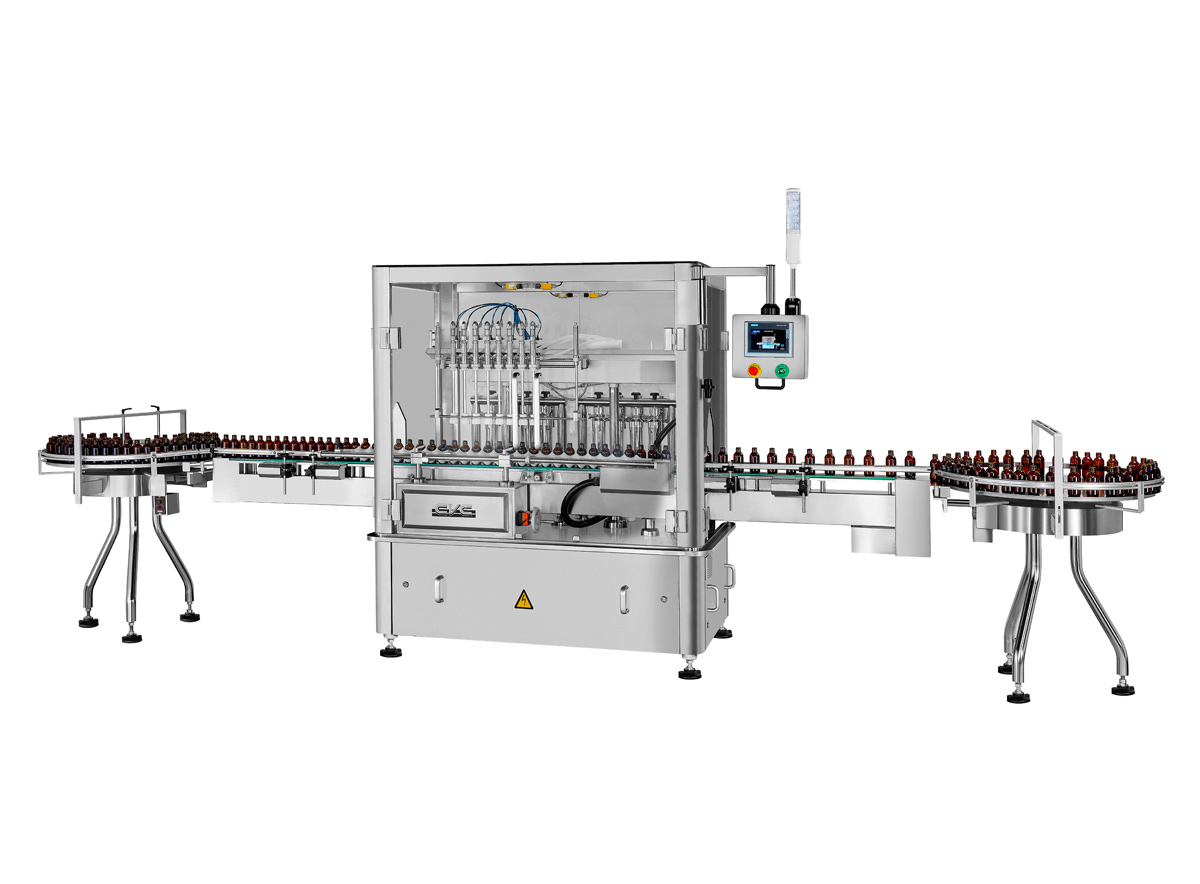

CVC 3036-8H with in-line configuration are really versatile fillers that easily - and inexpensively - accommodates to different bottle sizes.

STANDARD FEATURES

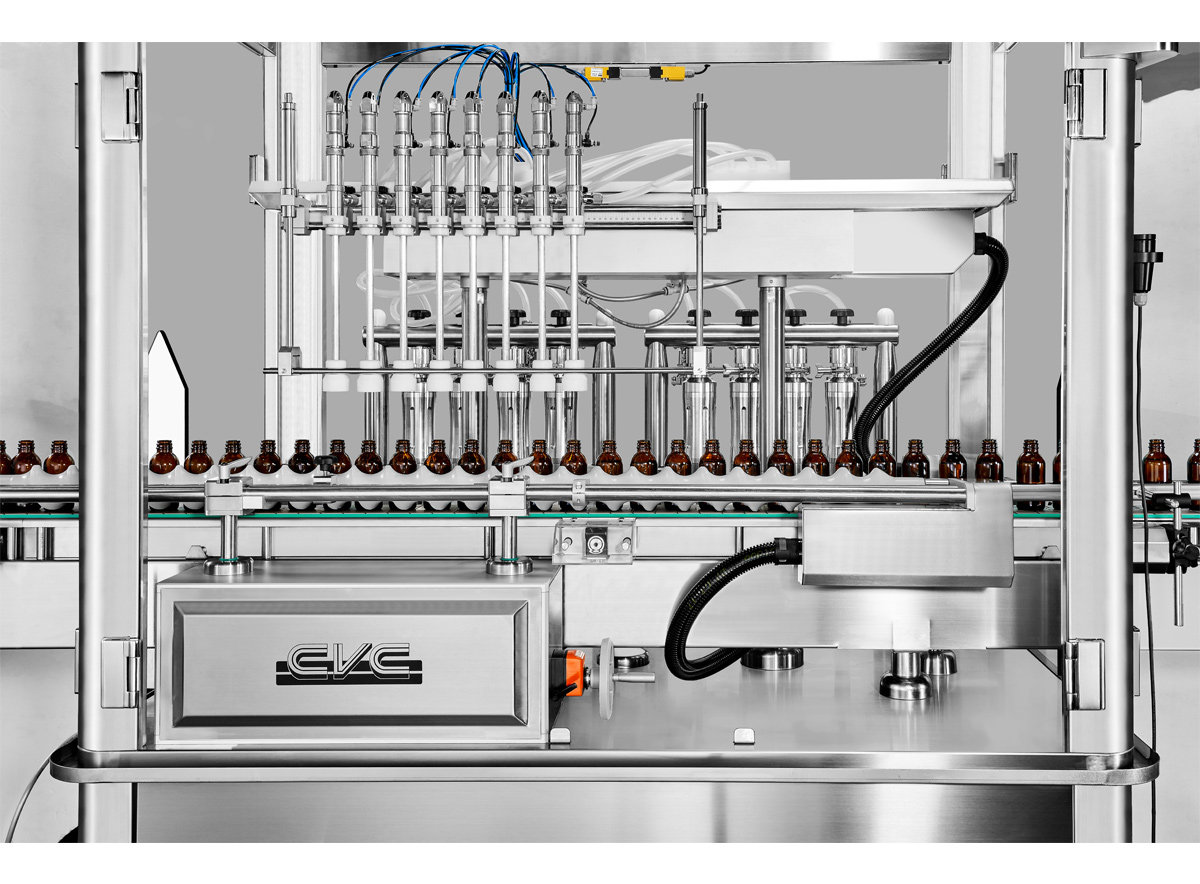

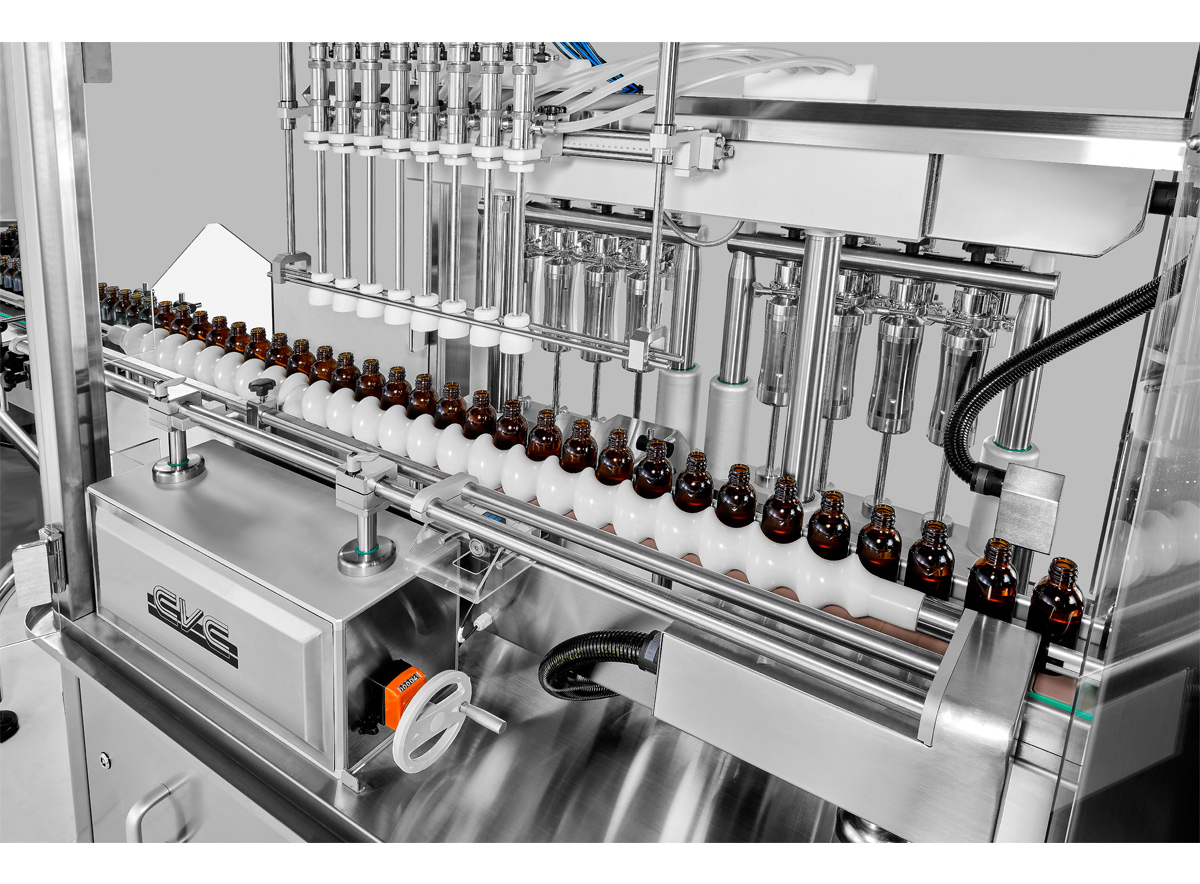

  • Diving type filling mechanism: filling nozzles dip into bottles and move up while liquid is being filled. It features less foaming during filling.
  • 8 filling stations.
  • Servo driven on both volumetric pistons and nozzles.
  • Flexible adjustments can meet different product characteristics and bottle shapes.
  • Various speed settings of liquid filling.
  • Drip tray.
  • Capability of recipe storage.
  • Simple and quick tech mode setup.
  • Track full / track empty sensors.
  • Bottle mouth holder design for special applications (require to conduct our factory test).
  • PLC control with user-friendly operation.

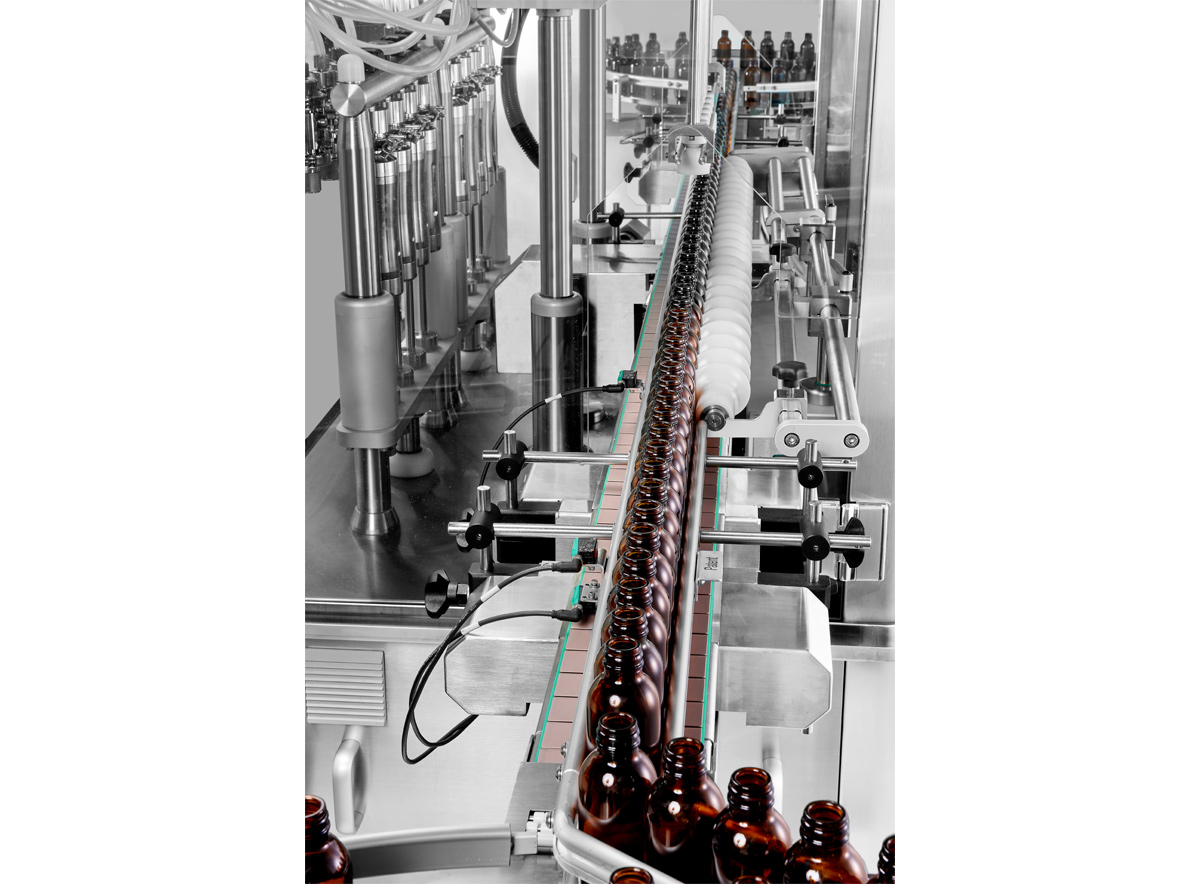

  • Motorized single lane sanitary conveyor. customized conveyor lengths are available upon request.
  • Type 304 stainless steel bin, frame, enclosure panels.
  • Type 316L stainless steel contact parts.
  • ISO 9001 : 2015 certified.
CVC 3036-8H
CVC 3036-8H
CVC 3036-8H
CVC 3036-8H
CVC 3036-8H
CVC 3036-8H
CVC 3036-8H
CVC 3036-8H
CVC 3036-8H
CVC 3036-8H
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Include various sizes of volumetric pistons with fill volume capacity range from 20 ml up to 500 ml
  • Shut-off nozzles
  • 1-on-8 manifold pipe
  • Liquid buffer/storage tanks
  • 21 CFR PART 11 compliance
  • OPC UA for data collection
  • Bottle neck holders
  • Bottle feed screw
  • Bottle feed screw for handling irregular shaped containers



MACHINE LAYOUTS:

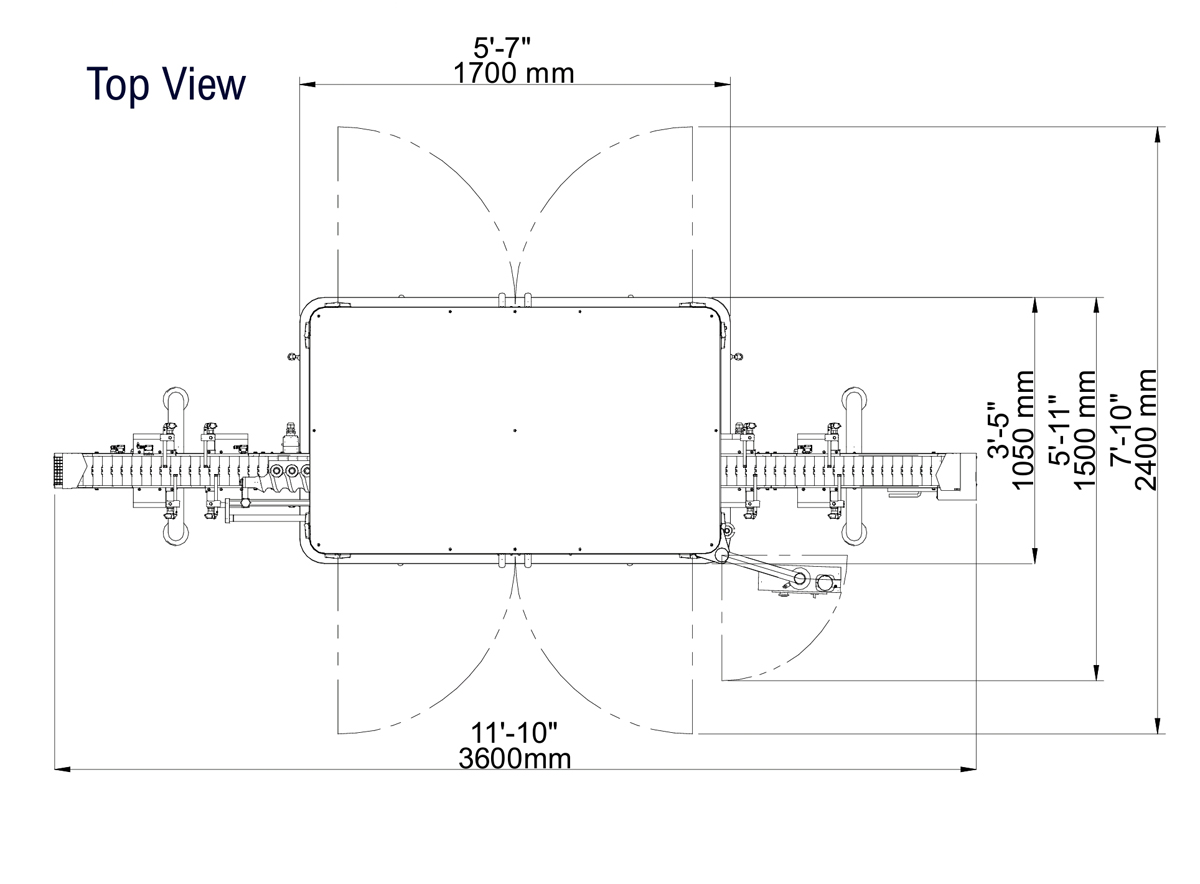

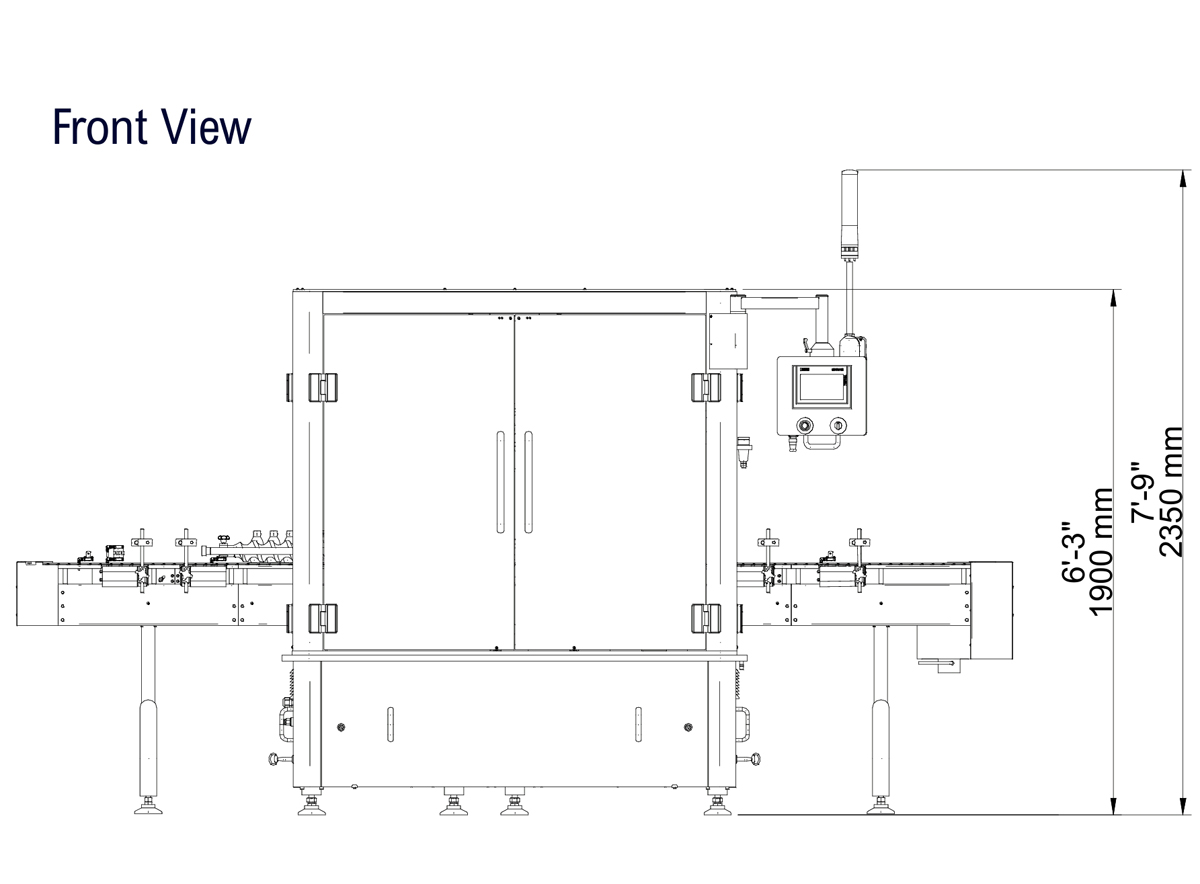

The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

Technical Specifications CVC 3036-8H Technical Specifications
Max. Productivity Up to 96 Bottles per Minute(BPM)
Applicable Bottle Plastic bottles, Glass bottles
Applicable Size Bottle Dia.: 1 ⅛" to 2 ⅝" (30 to 68 mm)
Bottle Height: 2 ½" to 6 ½" (65 to 165 mm)
Mouth Opening (I/D):⅜" to ⅝" (10 to 15 mm), suitable for ¼"(6.5 mm) nozzle,over ⅝"(15 mm) need to match ½"(13 mm) nozzle.
Power Supply 380 V/ 50(60) HZ/ 3 PH
Power Consumption 7000 VA
Air Pressure 6 bar (87 psi)
Air Consumption 50 NLit/m (1.8 CFM)
Consumption Machine Dimensions 11'-10" x 3'-5" x 5'-7" (3600mm x 1050mm x 1700mm) (L x W x H)
Viscosity 2000 cps
Filling Range & Accuracy 20 ml ~ 500 ml ± 1% (Need to adapt different volumetric
piston pumps and proper nozzles)
Amp. About 18A
Net Weight 1240 kg (2733 lbs)
Noise Level 70~76 dB
