IN-LINE LIQUID FILLER

CVC 3036-12

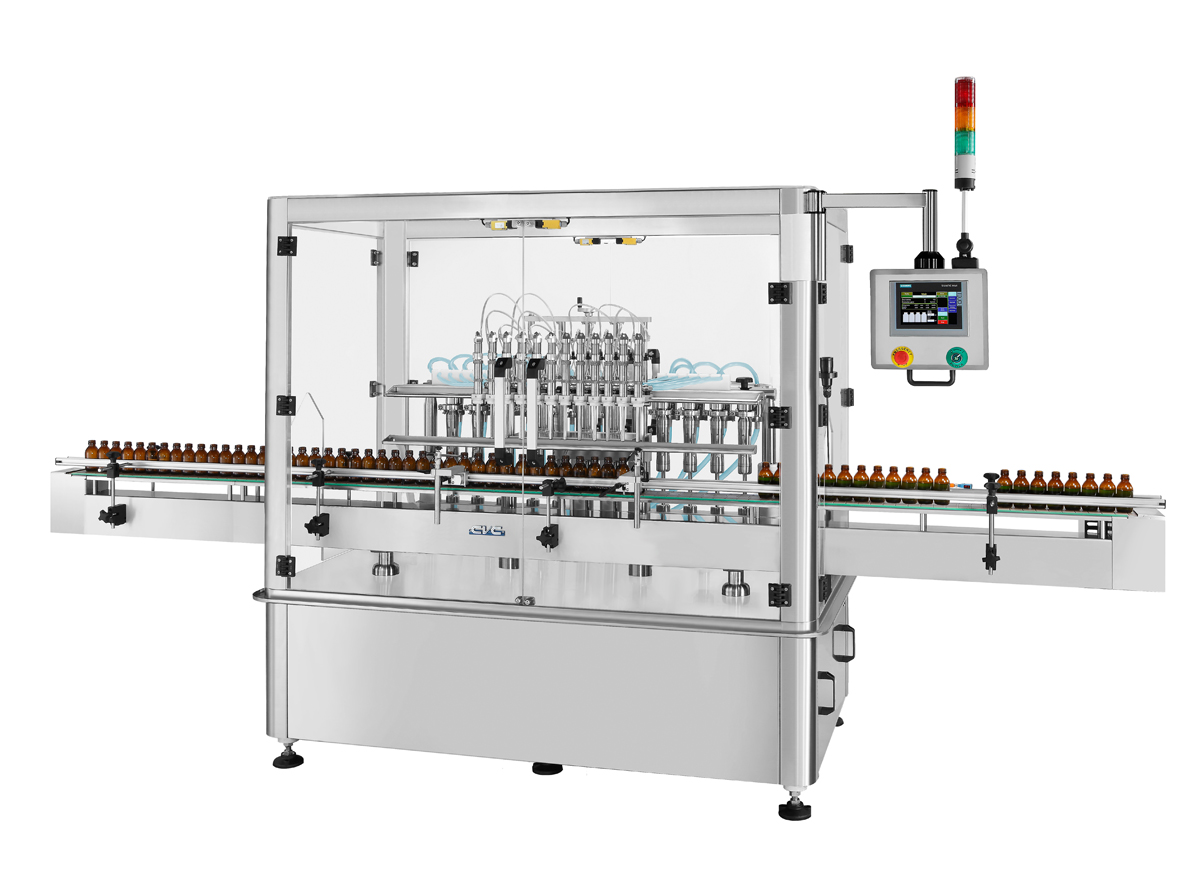

CVC 3036-12 with in-line configuration are really versatile fillers that easily - and inexpensively - accommodates to different bottle sizes. STANDARD FEATURES

STANDARD FEATURES

  • Diving type filling mechanism: filling nozzles dip into bottles and move up while liquid is being filled. It features less foaming during filling.
  • 12 filling stations.
  • Servo driven on both volumetric pistons and nozzles.
  • Flexible adjustments can meet different product characteristics and bottle shapes.
  • Various speed settings of liquid filling.
  • Drip tray.
  • Capability of recipe storage.
  • Simple and quick tech mode setup.
  • Track full / track empty sensors.
  • Bottle mouth holder design for special applications (require to conduct our factory test).
  • PLC control with user-friendly operation.
  • Motorized single lane sanitary conveyor. customized conveyor lengths are available upon request.
  • Type 304 stainless steel & Type 316L stainless steel construction meets cGMP requirements.
  • ISO 9001 : 2015 certified.
CVC 3036-12
CVC 3036-12
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Include various sizes of volumetric pistons with fill volume capacity range from 20 ml up to 500 ml
  • Shut-off nozzles
  • 1-on-12 manifold pipe
  • Liquid buffer/storage tanks
  • 21 CFR PART 11 compliance
  • OPC UA for data collection
  • Bottle neck holders
  • Bottle feed screw
  • Bottle feed screw for handling irregular shaped containers



MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

Technical Specifications CVC 3036-12
Max. Productivity Rates in Excess of 72 Bottles Per Minute (Format Dependent)
Stable Productivity 6 Cycles, 64-72 BPM (base on 100cc filling volume water)
Applicable Bottle Plastic bottles, Glass bottles
Applicable Size Bottle Dia.: 1 ⅛" to 4 ⅜" (30 to 110 mm)
Bottle Height: 2" to 8 ⅝" (50 to 220 mm)
Mouth Opening (I/D): ⅜" to ⅝" (10 to 15 mm), suitable for ¼"(6.5 mm) nozzle,
over ⅝"(15 mm) need to match ½"(13 mm) nozzle.
Power Supply 220 V/ 50(60) HZ/ 1 PH
Power Consumption 6100 VA
Air Pressure 6 bar (87 psi)
Air Consumption 55 NLit/m (1.95 CFM)
Consumption Machine Dimensions 13'-9" x 3'-5" x 7'-3" (4200 mm x 1040 mm x 2200 mm) (L x W x H)
Viscosity 2,000 cps
Filling Range & Accuracy 20 ml ~ 500 ml ± 1% (Need to adapt different volumetric piston pumps and proper nozzles)
Amp. About 28 A
Net Weight 1010 kg (2226 lbs)
Noise Level 70~75 dB
