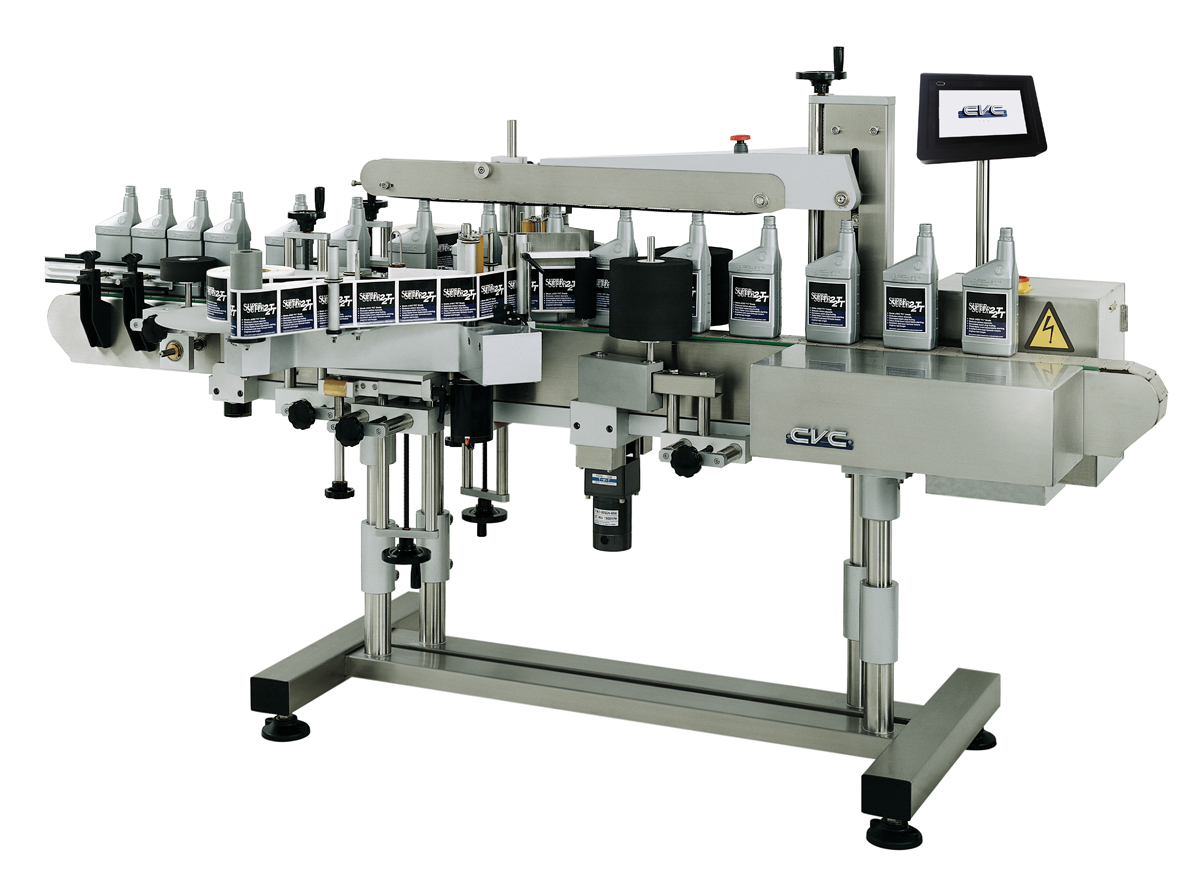

FRONT BACK LABELER

CVC 400

The CVC 400 Front & Back Labeler is built to automatically apply pressure sensitive labels onto the front and/or back of flat sided, oval, and some round containers. The 400 can be ordered with one or two labeling heads and has an optional assembly for applying a label to 3, 4, or 5 panels of a square or rectangular container. The 400 is an ideal machine for contract packagers and manufacturers serving the food, nutraceutical, pharmaceutical, gas, oil, and personal care markets.

STANDARD FEATURES

  • Self Set Auto Adjusting Control System
  • Stainless Steel Frame on lockable casters
  • Stainless Steel flatbed conveyor with 4" wide table top chain (Raised sanitary bed also available)
  • Touchscreen HMI
  • Label head with up to ± 1/32" accuracy (* bottles / containers dependent)
  • Label Sensor for Paper or Opaque Labels (Clear Label Sensor available as Option)
  • Product Sensor with Opaque and Clear Bottle Mode
  • Variable Speed Separator Wheel
CVC-400
CVC-400
CVC 400
CVC 400
CVC 400
CVC 400

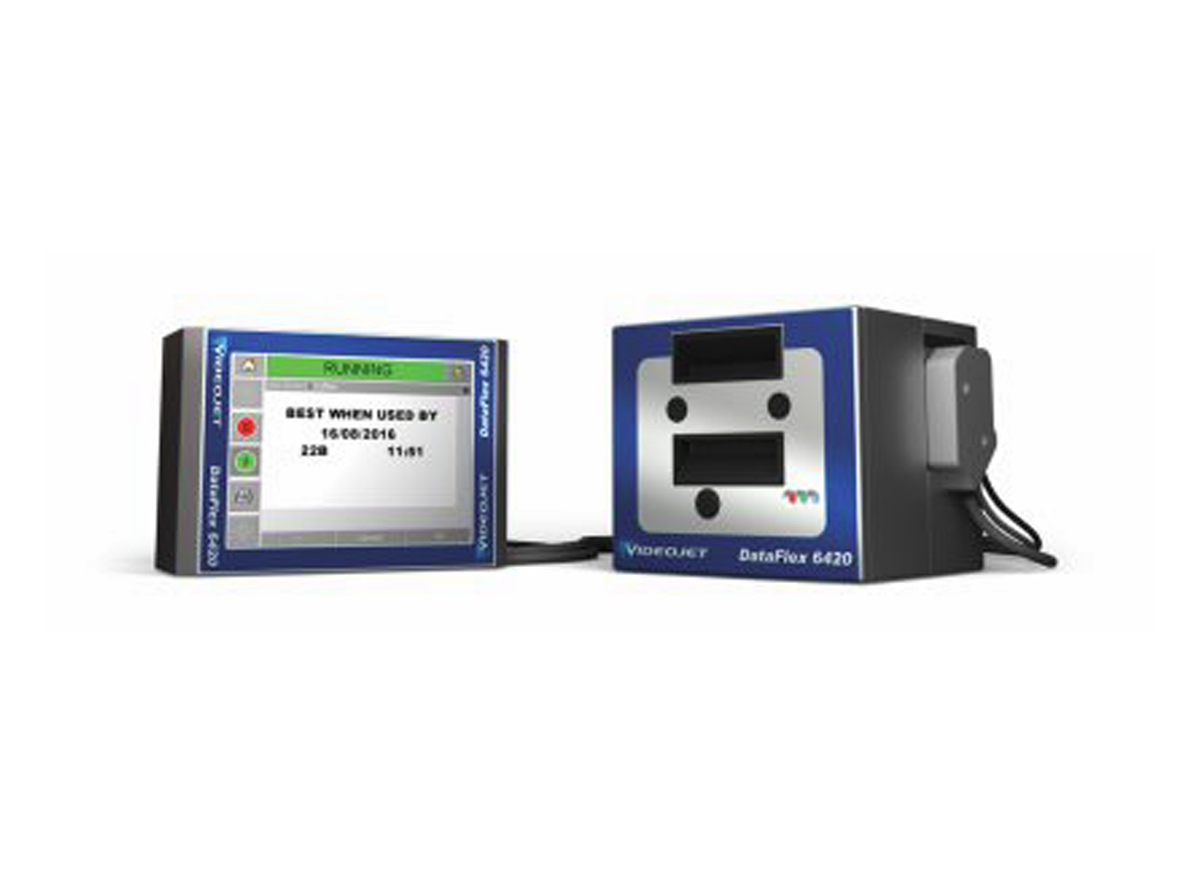

THERMAL TRANSFER PRINTER
THERMAL TRANSFER PRINTER

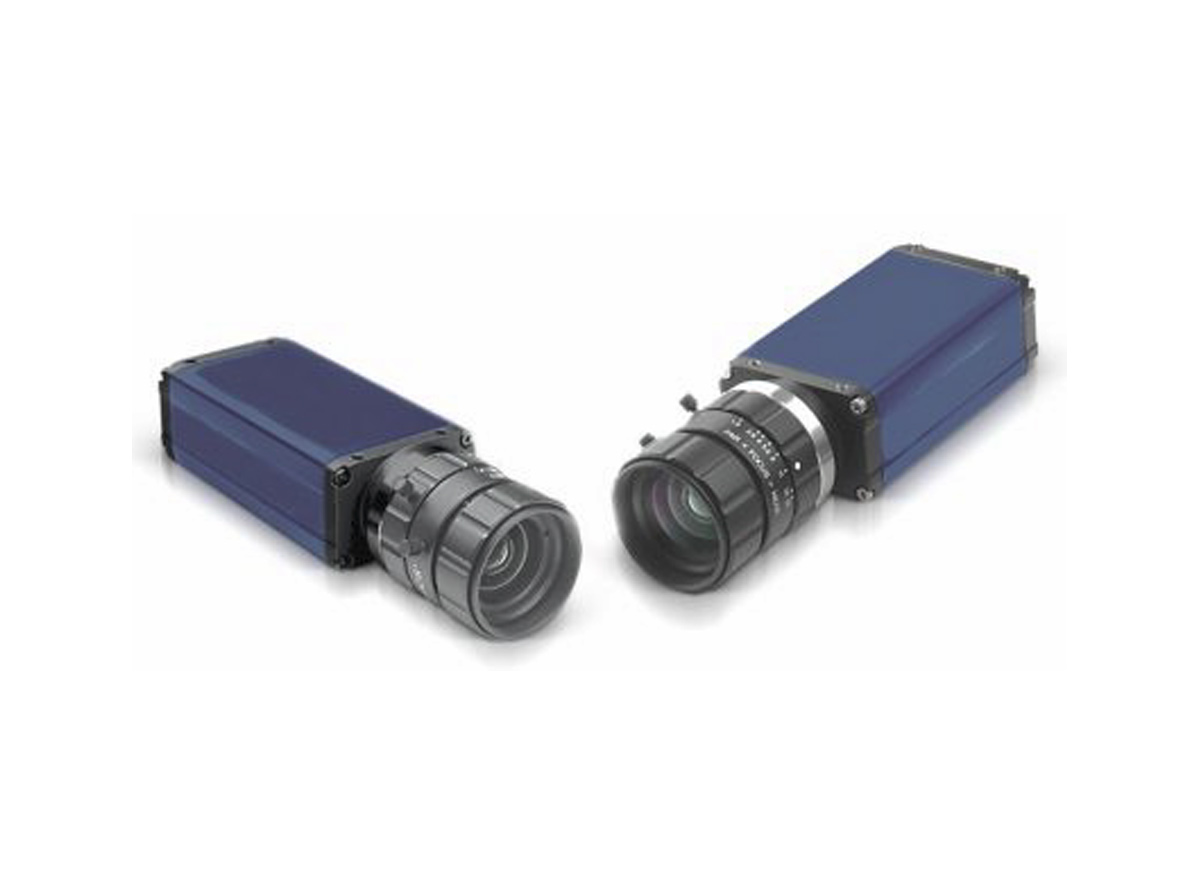

VISION INSPECTION SYSTEMS
VISION INSPECTION SYSTEMS
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Hot Stamp (Lot/Date Coding)
  • Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics)
  • Adjustable Tilt for Tapered Bottles
  • Chain alignment
  • Clear Label Sensor
  • Feed Screw
  • Infeed and Outfeed Conveyor Extensions
  •  Low Label Sensor (Factory Installed Only)
  • Outfeed Collection Tray
  • Product Infeed Tray with Stainless Steel Insert and Paddle for easy product loading

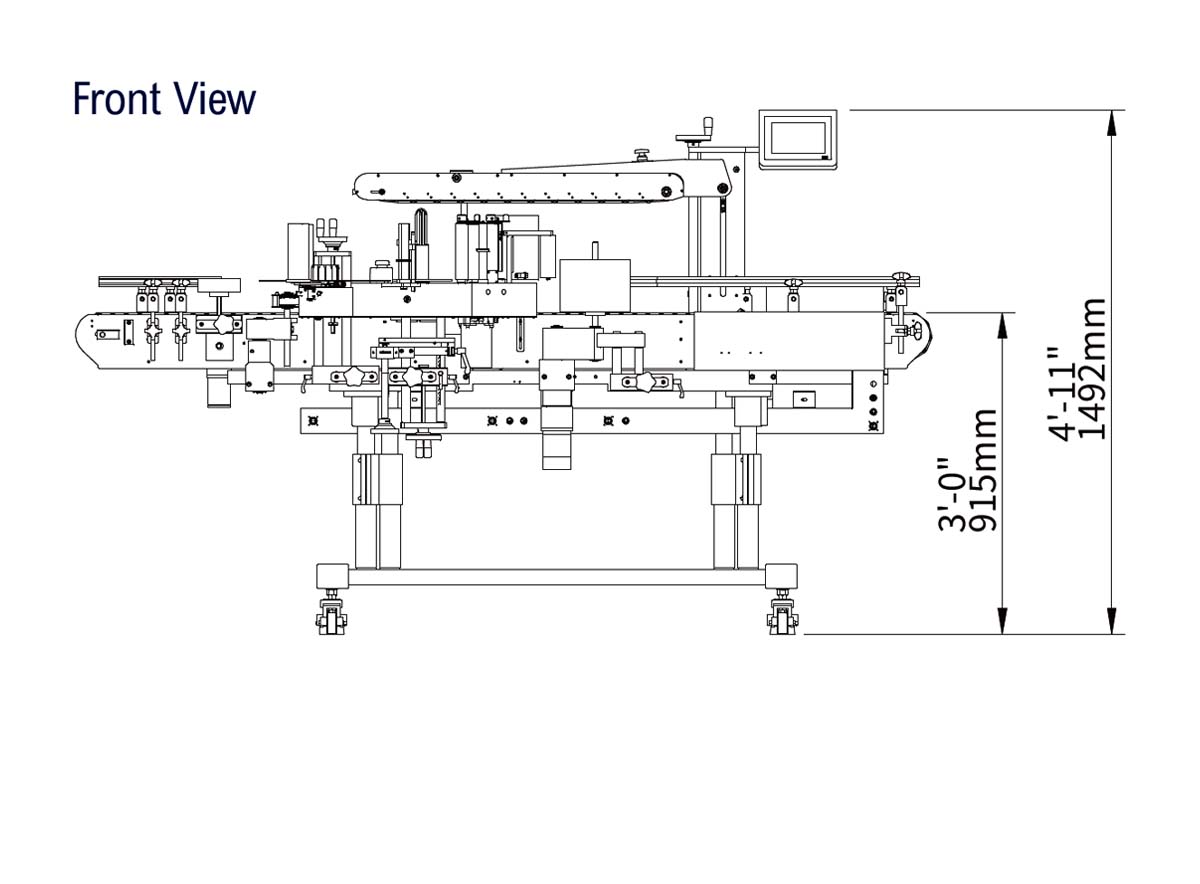

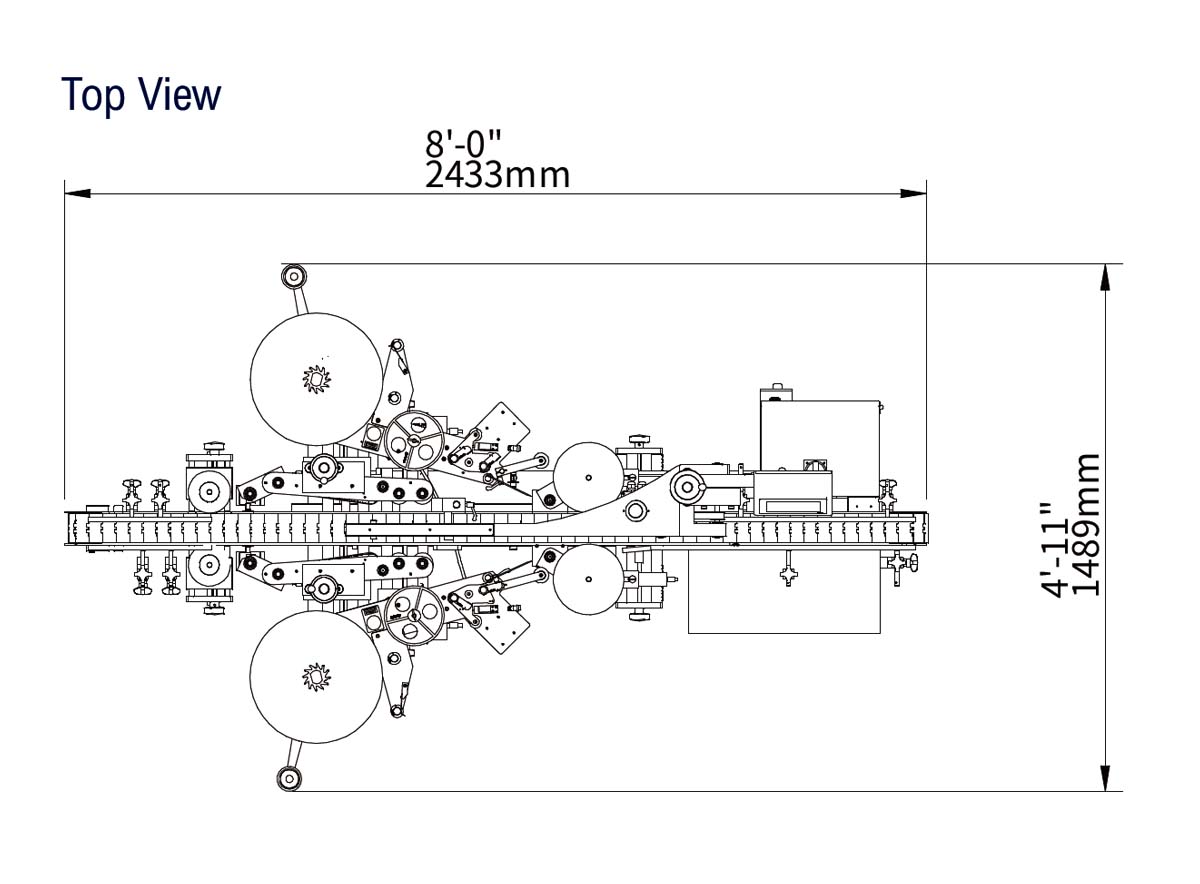

MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.


Note: The actual rates may var y significantly depending on the following: products, product characteristics, required fill counts, quantity or volume, and bottle dimensions.

Technical Specifications CVC 400 Technical Specifications
Power 110V, Single Phase, 5 Amp (220V optional)
Air Pressure Minimum 85 psi (ISO 8573-1)
Air Consumption 4 cfm (for optional reject and Lot/Date printer)
Speed Up to 175 Bottles per Minute (BPM)
Label Width / Height Configurable from ⅜" to 9" (16mm - 229mm) dependent on label head type
Label Length ¼” to 12" (16mm - 305mm)
Label Roll Max 14" (356mm) outside diameter with 3" core
Bottle Height Configurable from 2" to 16" (51mm - 406mm)
Bottle Diameter Configurable from ½" to 6 ¼" (13mm - 159mm) dependent on conveyor width
Dispense Speed Max 23 meters / min.
Conveyor Width Standard 4" (Configurable 6")
Conveyor Length Standard 95 ½”
Conveyor Bed Height Standard 36" (± 2")
Machine Weight 324 kg
