GALLON WRAP LABELER

CVC 310

The CVC 310 Gallon Wrap Labeler is built to automatically apply pressure sensitive labels onto large diameter round containers. The 310's extended wrap station includes a vacuum system for applying labels up to 17.5" in length and can be ordered with a 10" wide conveyor. The 310 is an ideal machine for contract packagers and manufacturers ser ving the nutraceutical, food, chemical, personal care, and household product markets.

STANDARD FEATURES

  • Self Set Auto Adjusting Control System
  • Stainless Steel Frame on lockable casters
  • Stainless Steel flat bed conveyor with 6" wide table top chain
  • Touchscreen HMI
  • Label head with up to ± 1/32" accuracy (* bottles / containers dependent)
  • 18" long Integrated Wrap Station with vacuum assist
  • Label Sensor for Paper or Opaque Labels
  • Product Sensor with Opaque and Clear Bottle Mode
  • Variable Speed Separator Wheel

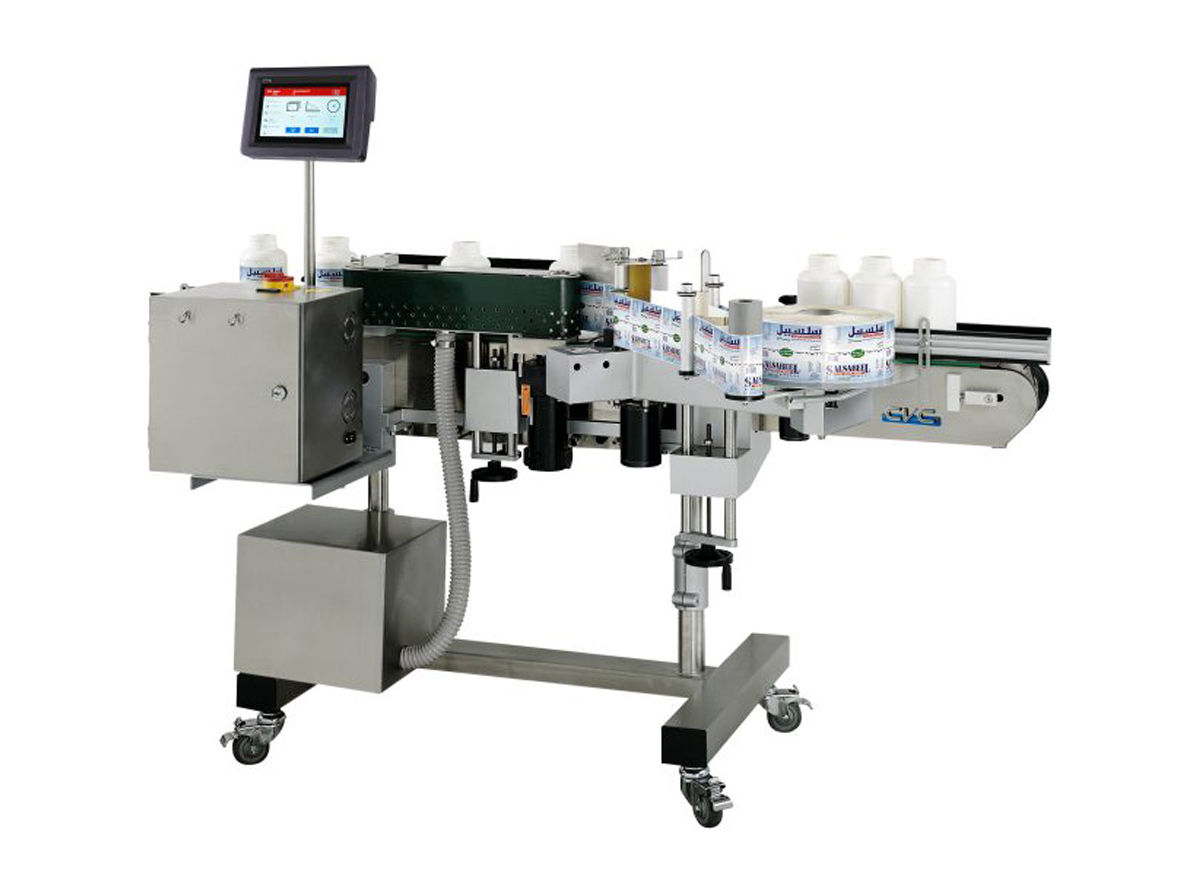

CVC 310
CVC 310

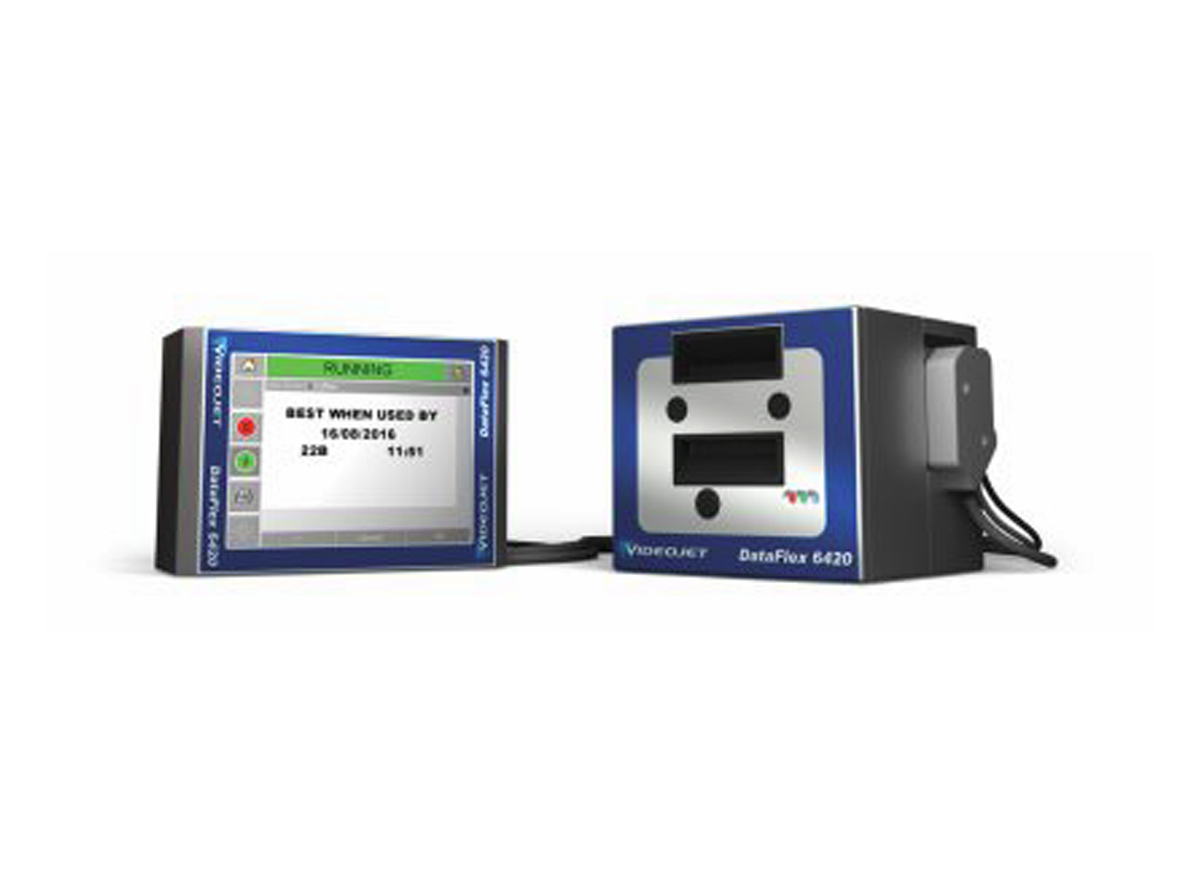

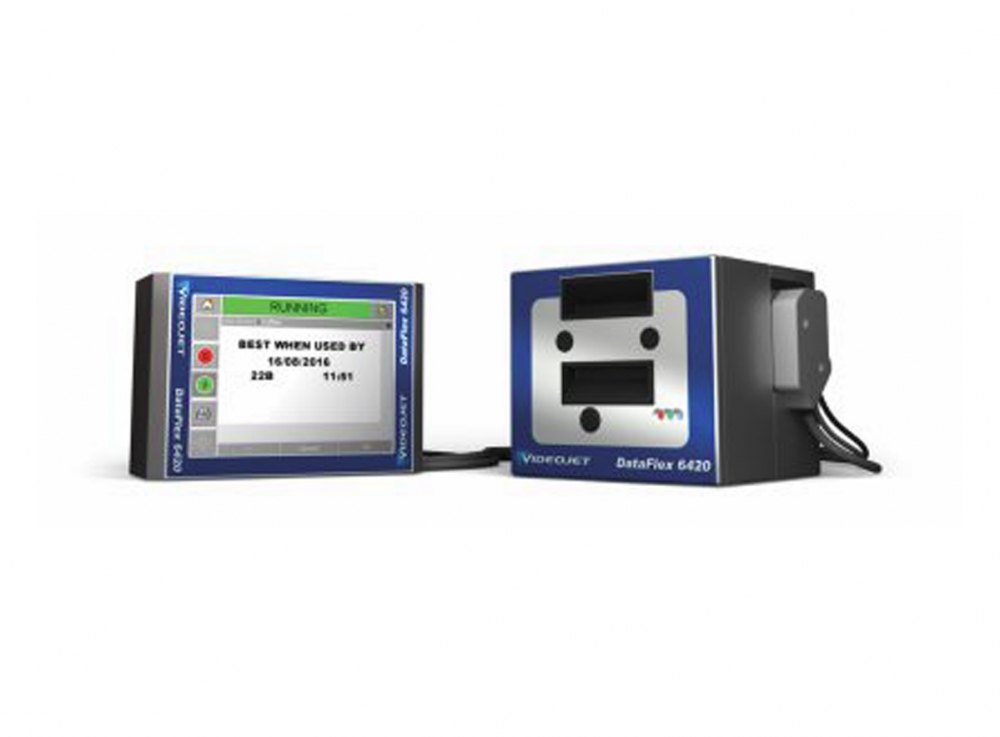

THERMAL TRANSFER PRINTER
THERMAL TRANSFER PRINTER

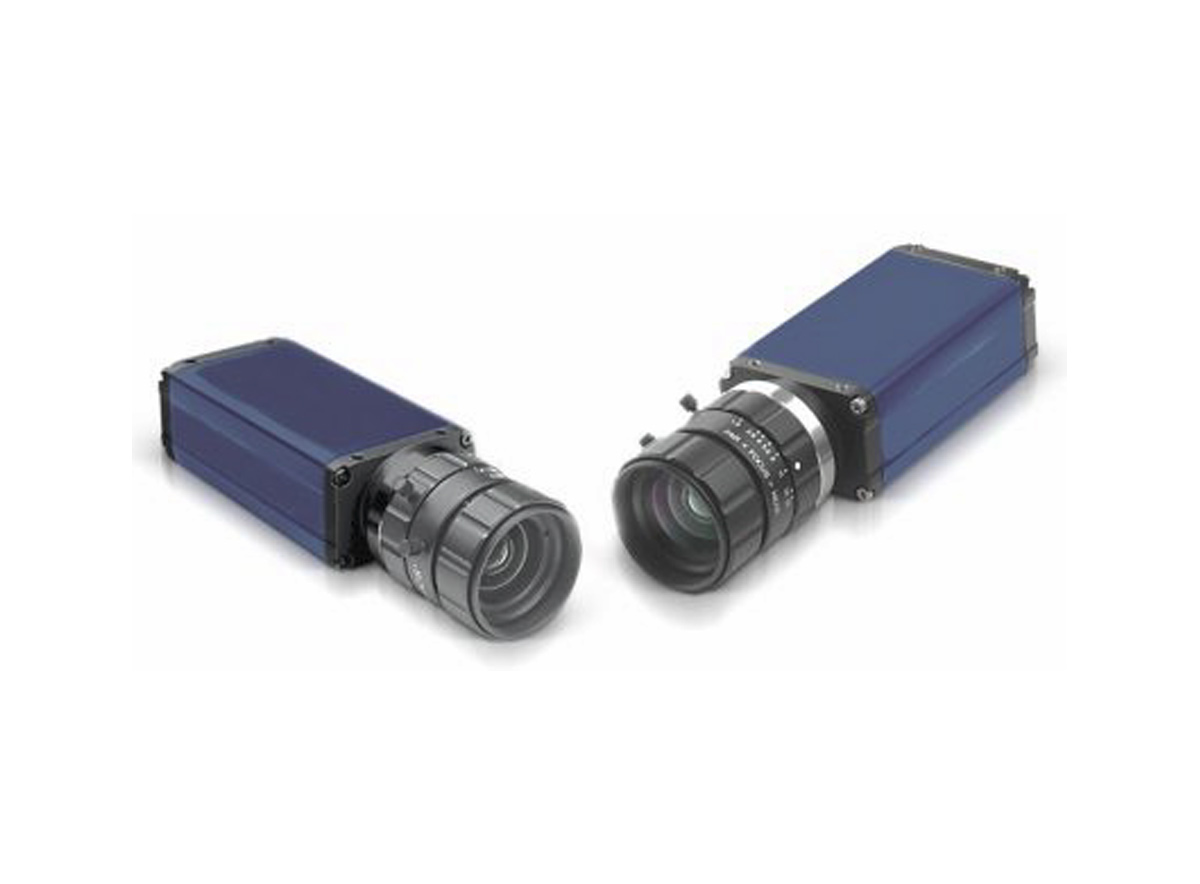

VISION INSPECTION SYSTEMS
VISION INSPECTION SYSTEMS
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Hot Stamp (Lot/Date Coding)
  • Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics)
  • Bottle Rejection System (Air Blow or Cylinder)
  • Clear Label Sensor
  • Custom Wrap Belts
  • Feed Screw
  • Infeed and Outfeed Conveyor Extensions
  • Laser Bar Code Verification
  • Loading and Collecting Turn Tables
  • Low Label Sensor (Factory Installed Only)
  • Missing Label Detection System (UV)

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

Note: The actual rates may var y significantly depending on the following: products, product characteristics, required fill counts, quantity or volume, and bottle dimensions.

Technical Specifications CVC 310 Technical Specifications
Power 110V, Single Phase, 6 Amp (208V optional)
Air Pressure Minimum 85 psi (ISO 8573-1)
Air Consumption 4 cfm (for optional reject and Lot/Date printer)
Speed Up to 160 Bottles per Minute (BPM)
Label Width / Height ⅜" to 9" (10mm - 229mm) dependent on label head type
Label Length ⅝" to 17¼" (16mm - 451mm)
Label Roll Max 14" (356mm) outside diameter with 3" core
Bottle Height 1" to 12" (25mm - 305mm)
Bottle Diameter 1" to 10" (25mm - 254mm) dependent on conveyor width
Dispense Speed Max 38 meters / min.
Conveyor Width Standard 6" (also available in 10")
Conveyor Length Standard 79", Extendable
Conveyor Bed Height Standard 36" (± 2")
Machine Weight 210 kg
