HORIZONTAL AMPULE LABELER / VIAL LABELER

cvc 350

The CVC 350 Horizontal Ampule Labeler is built to automatically apply pressure sensitive labels onto round containers that will not convey upright on a conveyor. The CVC 350 comes with a roller chain conveyor and can be purchased with an optional product loader. The CVC 350 is an ideal machine for contract packagers and manufacturers serving the biotech, nutraceutical, cosmetic, and personal care markets.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

STANDARD FEATURES

  • Self-set auto adjusting control system
  • Stainless steel frame on lockable casters
  • Touchscreen HMI
  • Label head with up to ± 1 mm accuracy (*bottles / containers dependent)
  • Label sensor for paper or opaque labels
  • Product sensor with opaque
  • Compact design, available with both on-line and off-line operations.
  • Type 304 stainless steel construction
  • ISO 9001 : 2015 certified
CVC 350
CVC 350

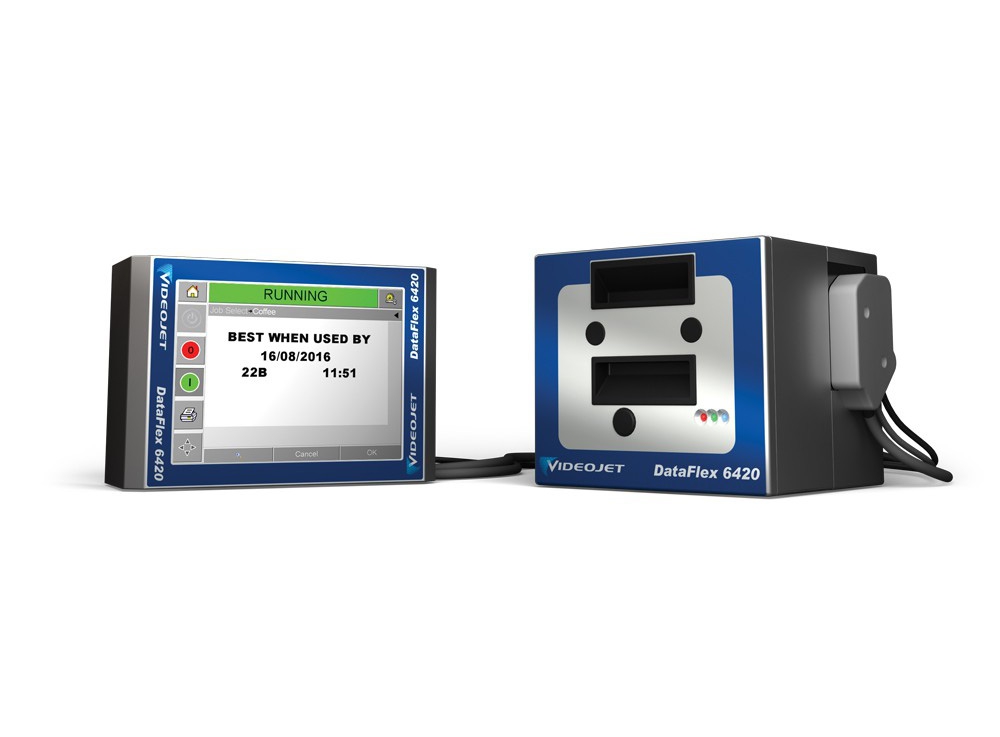

THERMAL TRANSFER PRINTER
THERMAL TRANSFER PRINTER
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • C60 Hot Stamp (Lot/Date Coding)
  • Missing Hot Stamp Imprint Check
  • Integrated Thermal Printer (Lot/Date, Bar Code and Graphics)
  • Dataflex or Similar Lot/date Code Printer
  • Clear , Metalic or Color Label Sensor
  • Product Loader
  • Adjustable Tilt for Tapered Bottles
  • Custom made Wrap Station
  • Automatic Vertical Stand-up Accumulation System

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.



Technical Specifications CVC 350 Technical specifications
Power source 110V/220V, Single Phase
Power Consumption 352 VA (3.2Amp/110V, 1.6Amp/220V)
Air Pressure 6 bar (87 psi) (ISO 8573-1)
Air Consumption 50 NLit/m (2cfm) (for optional Lot/Date printer)
Consumption Machine Dimensions 5'-8" x 2'-7" x 5'-1" (1,730 mm x 800 mm x 1,560 mm) (L x W x H)
Speed Up to 250 Bottles per minute (BPM) (subject to our trial confirmation)
Label Width / Height Configurable from ⅝" to 3 ¾" (15mm - 96mm) dependent on label head type
Label Length ⅝” to 3" (15mm - 75mm)
Label Roll Max 14" (356mm) outside diameter with 3" (76mm) core
Bottle Height Configurable from 1 ⅝" to 2 ¾" (40 mm - 70 mm)
Bottle Diameter Configurable from ⅜" to 1" (10 mm - 24 mm) dependent on conveyor width
Conveyor Width Configurable up to 5 ⅝" (144mm) / 7 ⅝" (194mm)
Conveyor Length Standard 66 ⅞" (1700mm) (Extendable)
Machine Weight 230 kg (507 lbs)
Noise Level 70~75 dB
