SEMI-AUTO TABLET/CAPSULE COUNTER

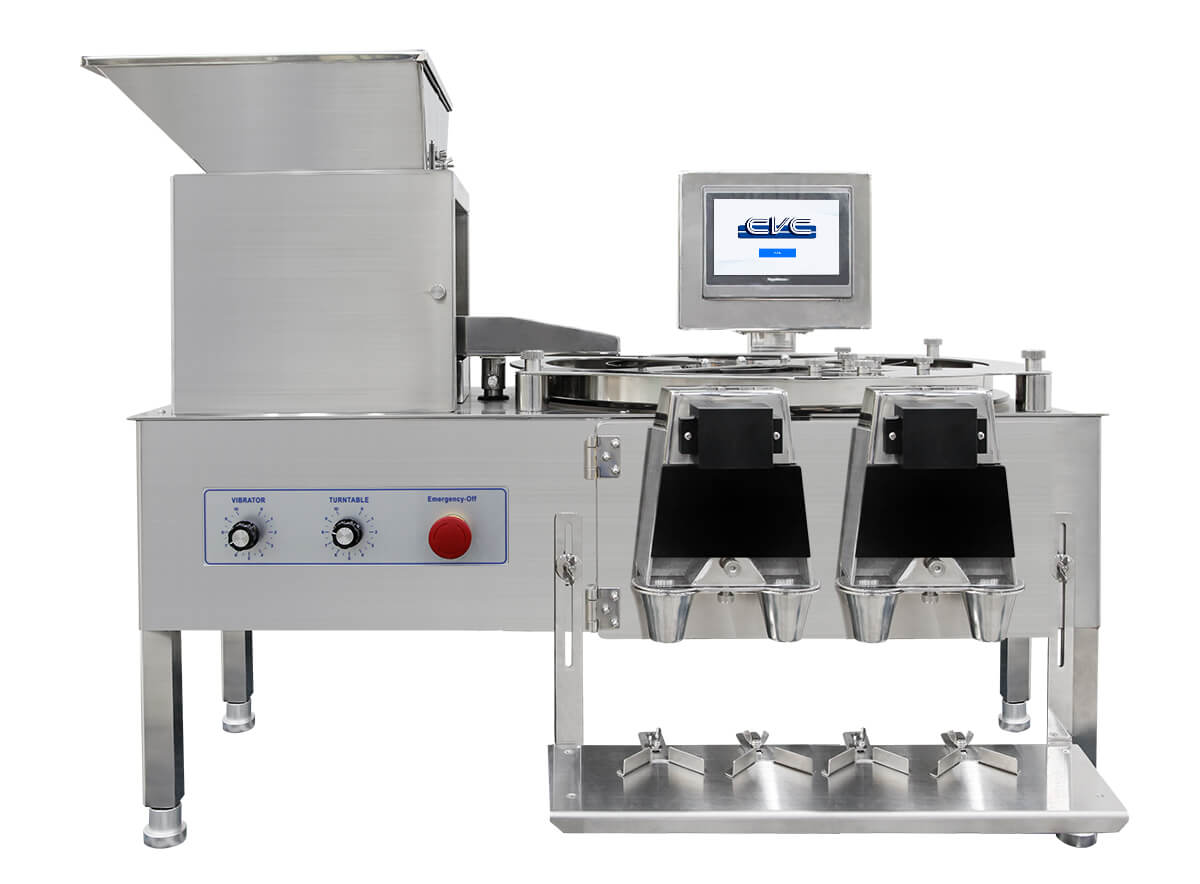

CVC SC204-TS

Counting speed for the model CVCSC204-TS is double that of the CVCSC202-TS when running tablet products. Easy operator movements include placing two empty bottles and taking away two filled bottles.

STANDARD FEATURES

  • Stainless steel construction with acrylic housing, meets cGMP standards.
  • A unique sensor design prevents miscounts caused by voltage change or direct light to the counting head.
  • Counting speed is adjustable.
  • The vibrator tablet/capsule loading chute speed is adjustable to equal the counting speed.
CVC SC204-TS
CVC SC204-TS
CVC SC204-TS
CVC SC204-TS
Previous Next Play Pause
CVC SC204-TS CVC SC204-TS

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • A dust accumulator is attached inside of the machine to protect machine count accuracy.

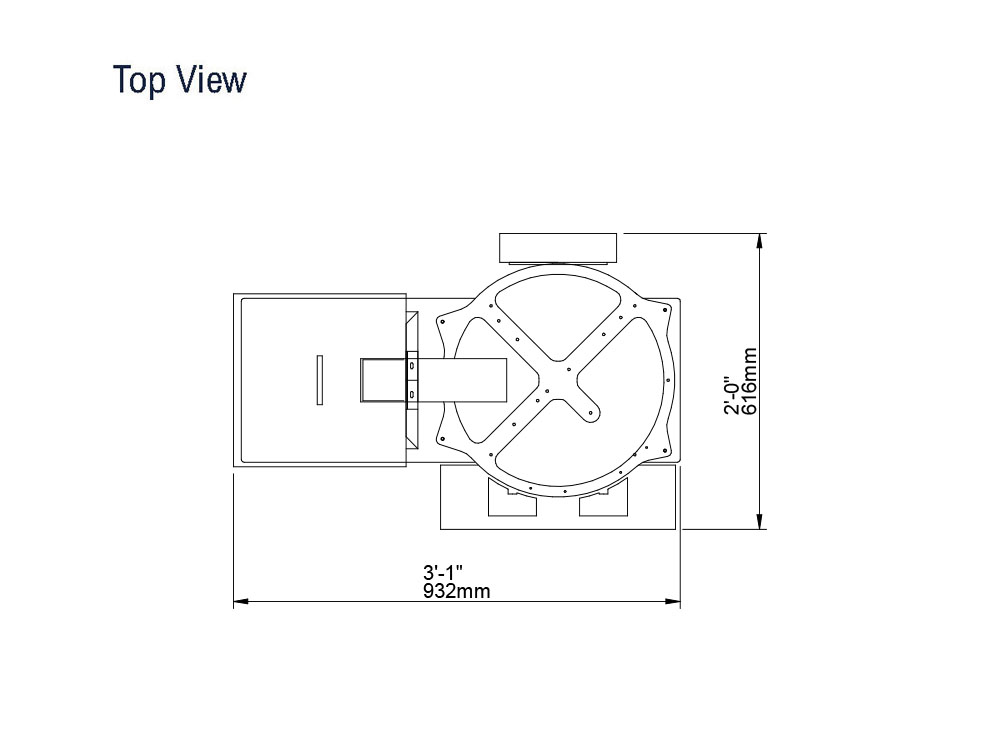

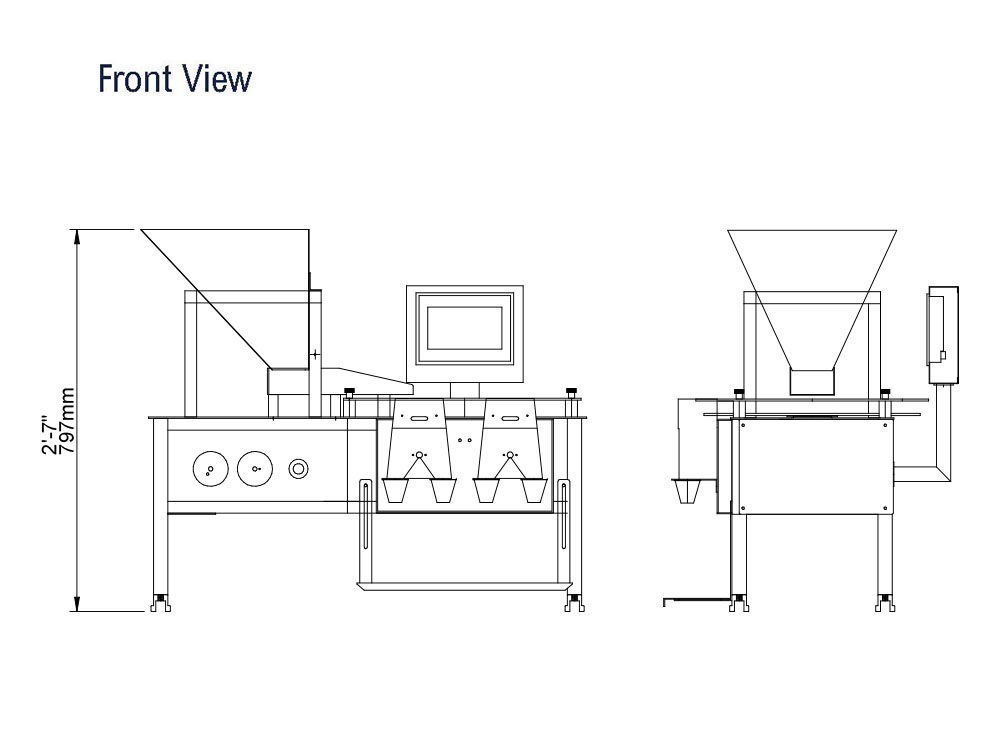

MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

Note: The actual rates may var y significantly depending on the following: products, product characteristics, required fill counts, quantity or volume, and bottle dimensions.

Technical Specifications CVC SC204-TS Technical Specifications
Capacity Tablet 2,000 - 3,600 ，Capsule 1,300 (per minute.)
Power source 110-120V or 220-240V 50/60 Hz / 1 phase
Power Consumption 350 W
Consumption Machine Dimensions 3'-0" x 2'-2" x 2'-8" (925mm x 650mm x 824mm) (L x W x H)
Bottle Height 2" to 7⅞" (50mm-200mm)
Bottle opening 1" to 4" (25mm-100mm)
Bottle Diameter 1⅛" to 4" (30mm-100mm)
Product Width (Dia.) ¼" to ¾" (5mm-20mm)
Product Length ¼" to 1⅛" (5mm-30mm)
