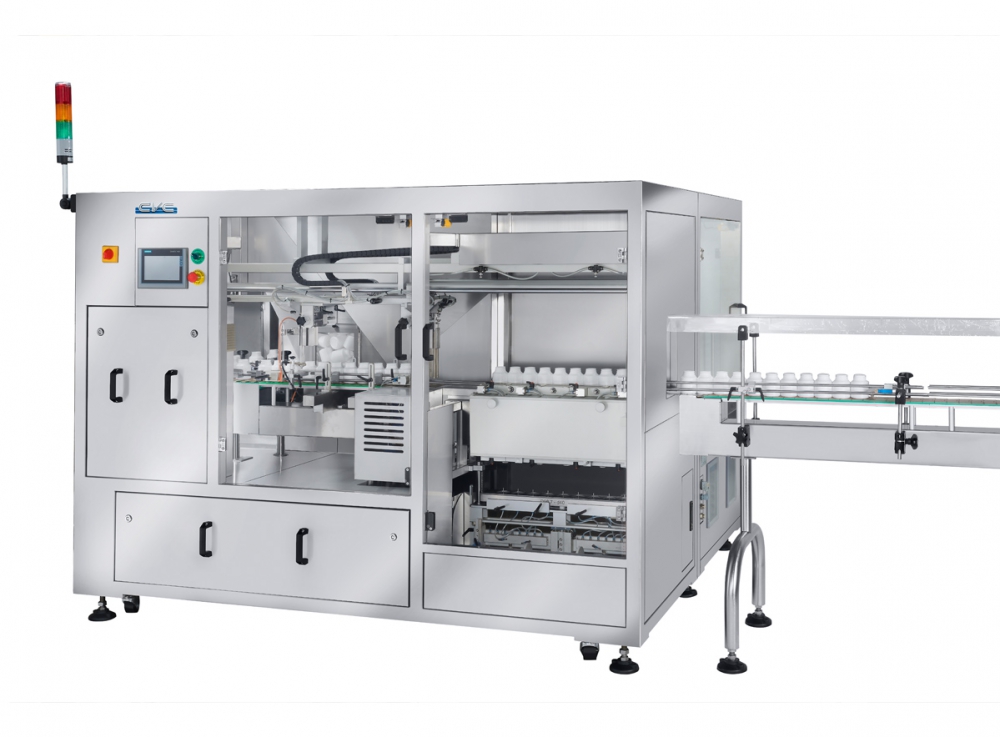

BOTTLE UNSCRAMBLER & AIR RINSER

CVC 1263D

The CVC 1263D Bottle Unscrambler is designed to automatically feed bottles from a bin and place them upright onto a conveyor at speeds of up to 120 bottles per minute. The CVC 1263D is built on a Siemens control system including a HMI panel. Options include ionized air rinse with vacuum, fallen bottle sensor with return to bin, low level hopper sensor, tower lamp, and static eliminator bar. No change parts required.

STANDARD FEATURES

  • Display touchscreen instruction for machine operation is available in two languages
  • Interlocked safety guarding
  • Low level hopper sensor
  • Bottle backlog sensor at outfeed
  • Type 304 stainless steel bin, frame, enclosure panels.
  • Type 316 stainless steel contact parts.
  • ISO 9001:2015 certified.
CVC 1263D
CVC 1263D

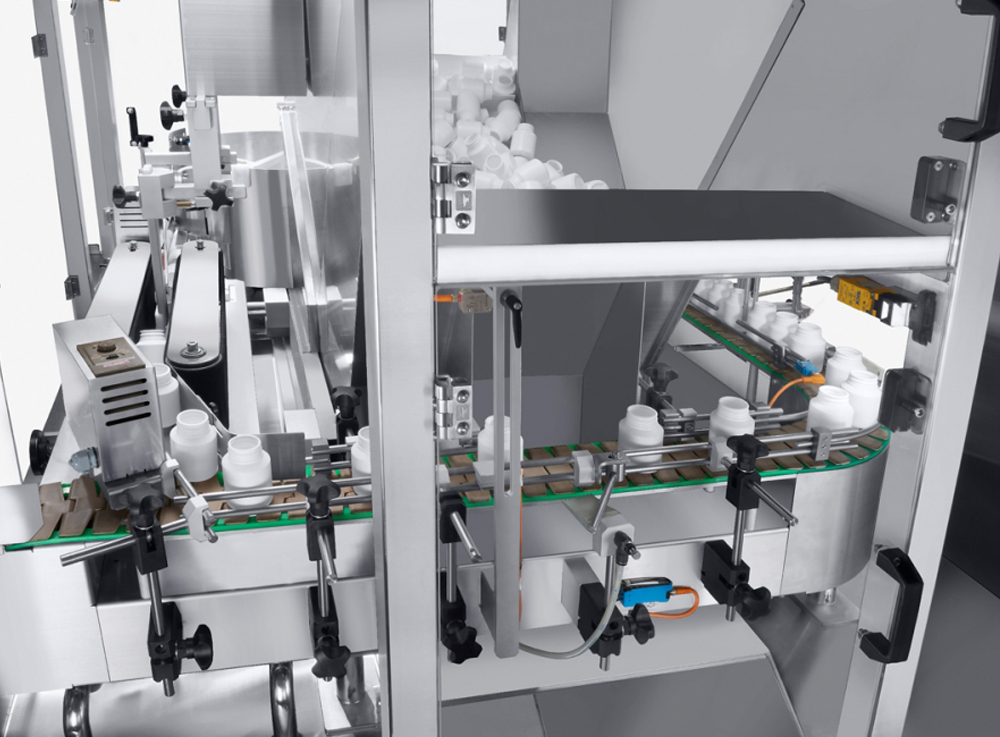

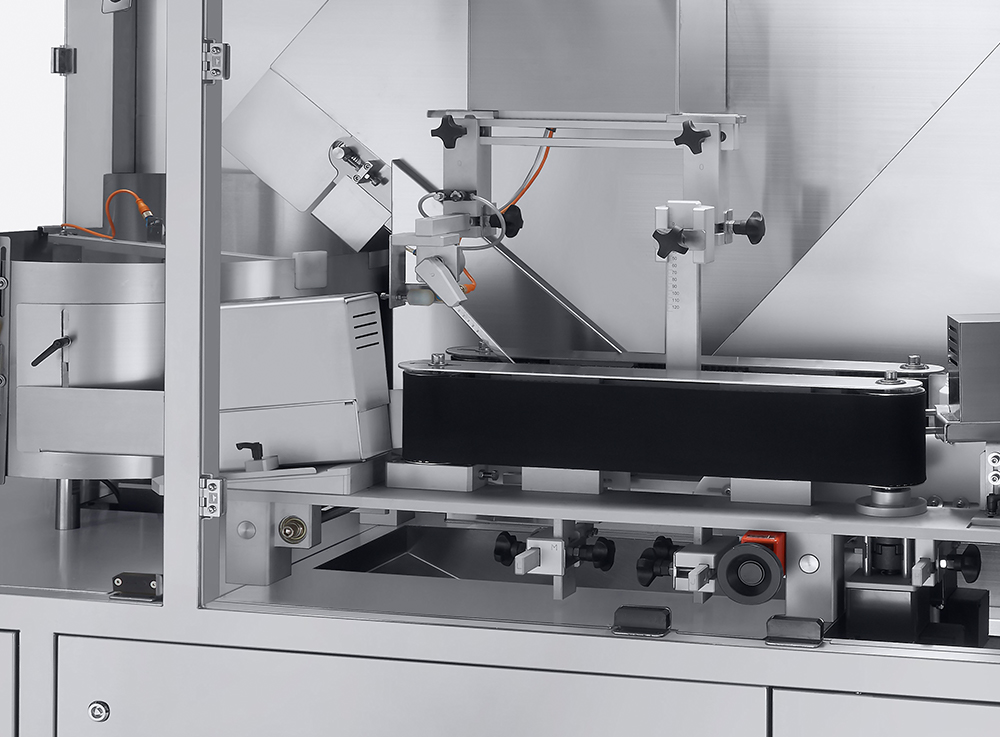

BOTTLE ORIENTATING ASSEMBLY
BOTTLE ORIENTATING ASSEMBLY
BOTTLE ORIENTATING ASSEMBLY
BOTTLE ORIENTATING ASSEMBLY
CVC 1263D
CVC 1263D
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Static Electricity Eliminator
  • Vacuum block detection assembly
  • Upside down bottle, fallen bottle reject assembly
  • Tower lamp
  • 21CFR Part 11 License

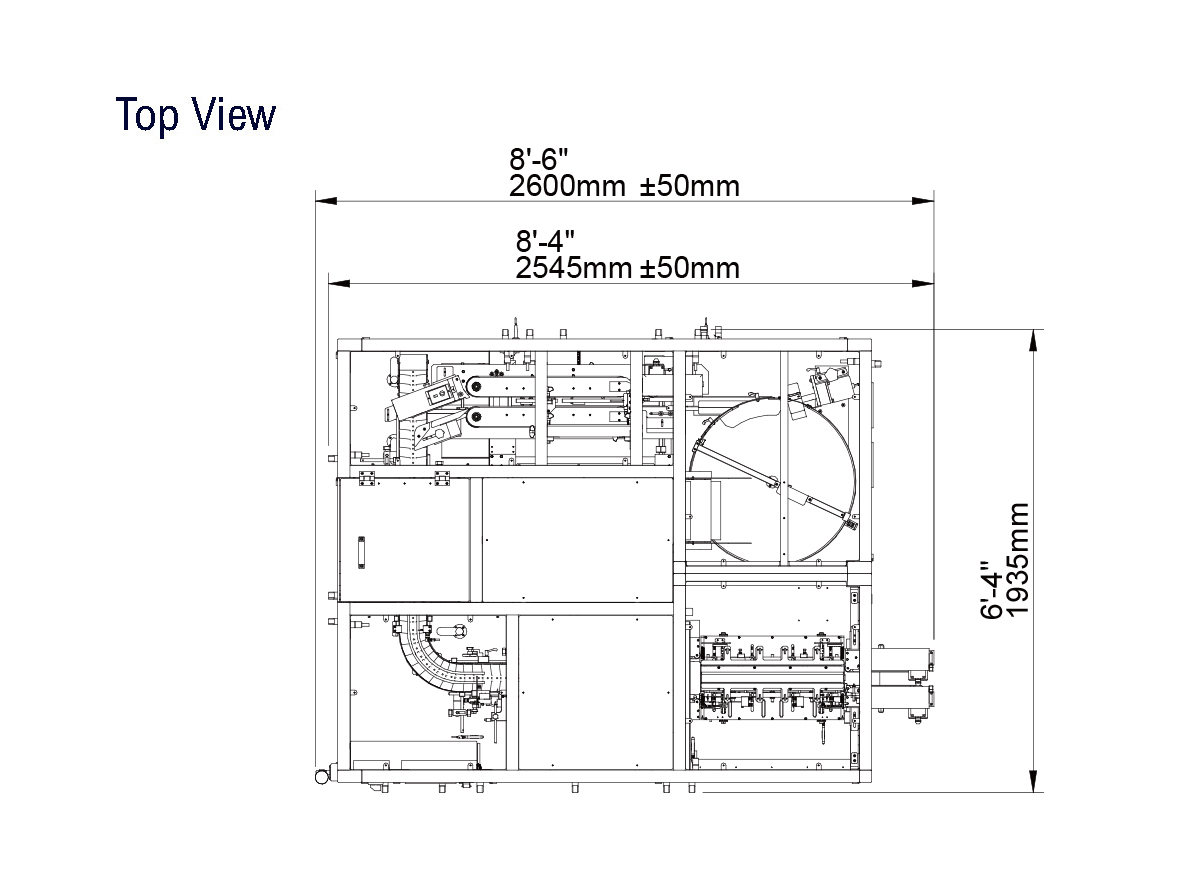

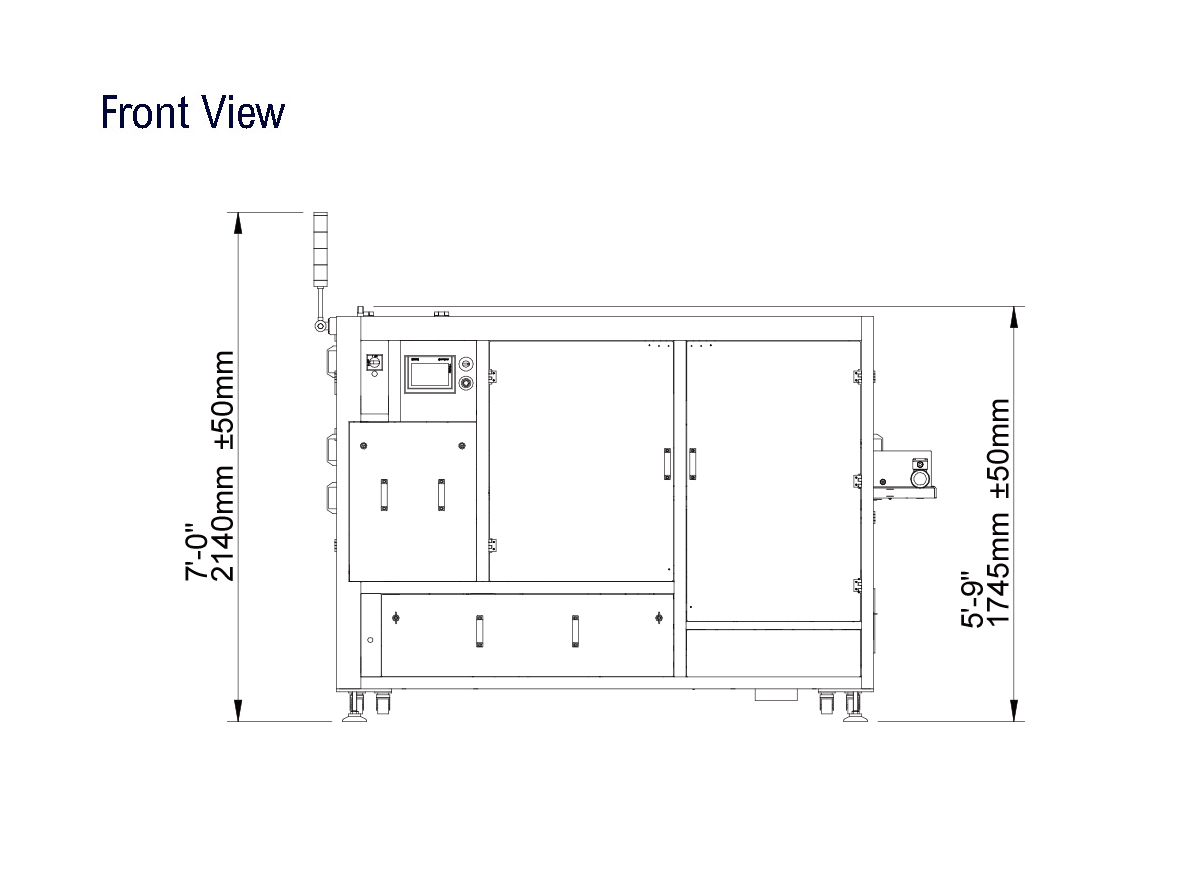

MACHINE LAYOUTS:






The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 1263D Technical Specifications
Type U4.D
Power source 220V, 50 Hz, 1 Phase
Power Consumption 5 Amp (8.6 Amp when equipped with Air Rinse & Vacuum)
Air Pressure Minimum 87 psi (ISO 8573-1)
Air Consumption 4.2 cfm (100 L/min.) on standard machine
without optional ionized air rinse assembly.
(52.5 cfm when equipped with Air Rinse Assembly)
Consumption Machine Dimensions 7'-10" x 6'-4" x 7'-0" (2380 x 1932 x 2140 mm) (L x W x H)
Speed Up to 120 Bottles per Minute (BPM)
Bottle Height 2" to 7 ⅞" (50mm - 200mm)
Bottle Diameter 1 ⅛" to 4 ¾" (30mm - 120mm)
Packing Weight 3638 lbs. (1650 kg)
Machine Weight 2646 lbs. (1200 kg)
Noise Level 78 dB
