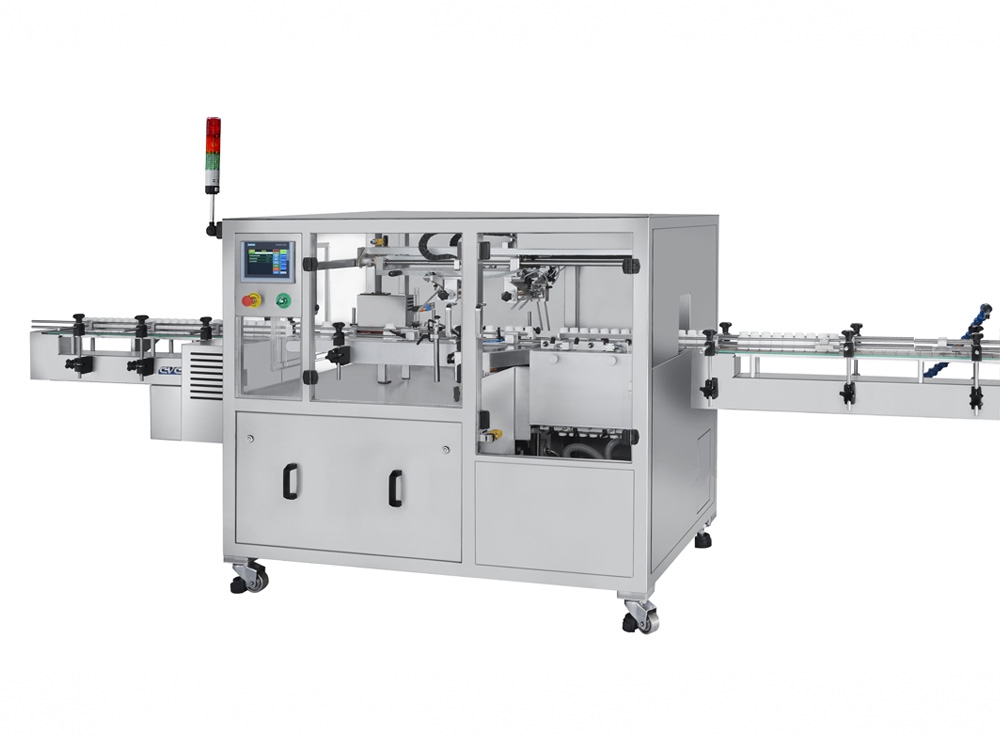

BOTTLE AIR RINSER

CVC 1102

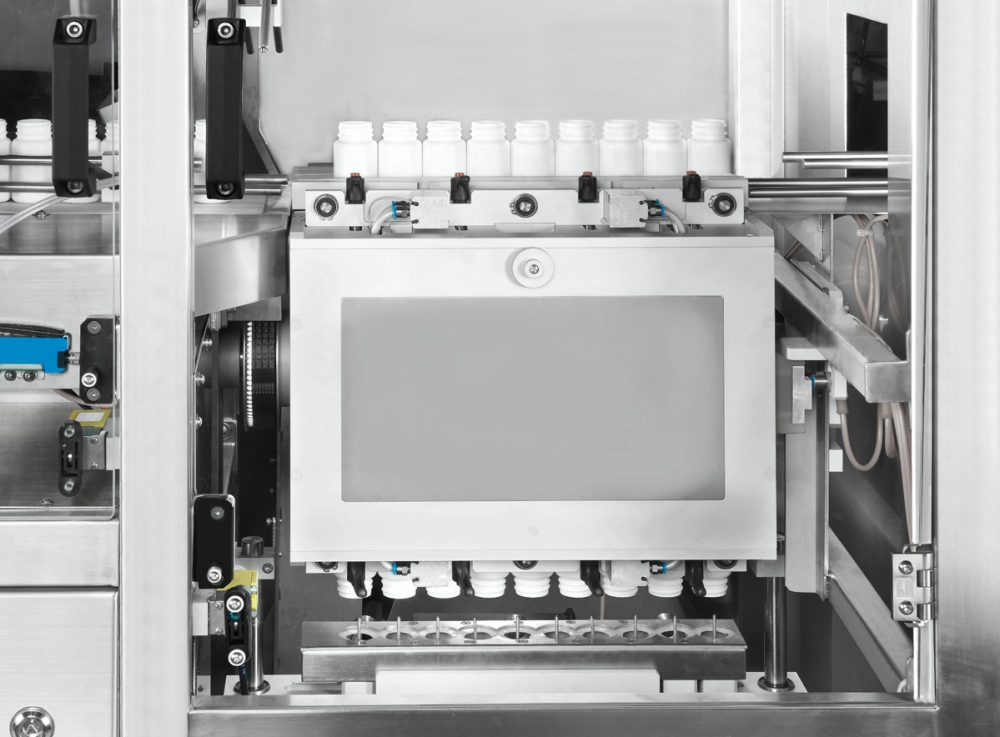

The CVC 1102 Bottle Air Rinser is Equipped with powerful clean air jet and vacuum suction which are combined with 180-degree inversion of bottle at speeds of up to 80 bottles per minute. The CVC 1102 series Automatic Bottle Air Rinser are the ideal solution for oral products lines to achieve cGMP compliance.

Different bottle sizes are easily change over with customized bottle format change parts.

STANDARD FEATURES

  • Display touchscreen instruction for machine operation is available in two languages.
  • Interlocked safety guarding.
  • Bottle backlog sensor at outfeed.
  • Type 304 stainless steel bin, frame, enclosure panels.
  • Type 316 stainless steel contact parts.
  • ISO 9001:2015 certified.
CVC 1102
CVC 1102
CVC 1102
CVC 1102
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Static eliminator bar in disc sorter
  • Ionized air rinsing assembly with collection tray
  • Tower lamp
  • 21CFR Part 11 License

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 1102 Technical Specifications
Type U4.4
Power source 220V, 50 Hz, 1 Phase
Power Consumption 5.5 Amp (equipped with Air Rinse & Vacuum)
Air Pressure Minimum 87 psi (ISO 8573-1)
Air Consumption 1.75 cfm (50 L/min.) on standard machine
without optional ionized air rinse assembly.
Consumption Machine Dimensions 5'-6" x 3'-5" x 4'-8" (1680 x 1050 x 1432 mm) (L x W x H)
Speed Up to 80 Bottles per Minute (BPM)
Bottle Height 2" to 5 ⅞" (50mm - 150mm)
Bottle Diameter 1 ⅛" to 3 ⅛" (30mm - 80mm)
Packing Weight 1234 lbs. (560 kg)
Machine Weight 1124 lbs. (510 kg)
Noise Level 78 dB
