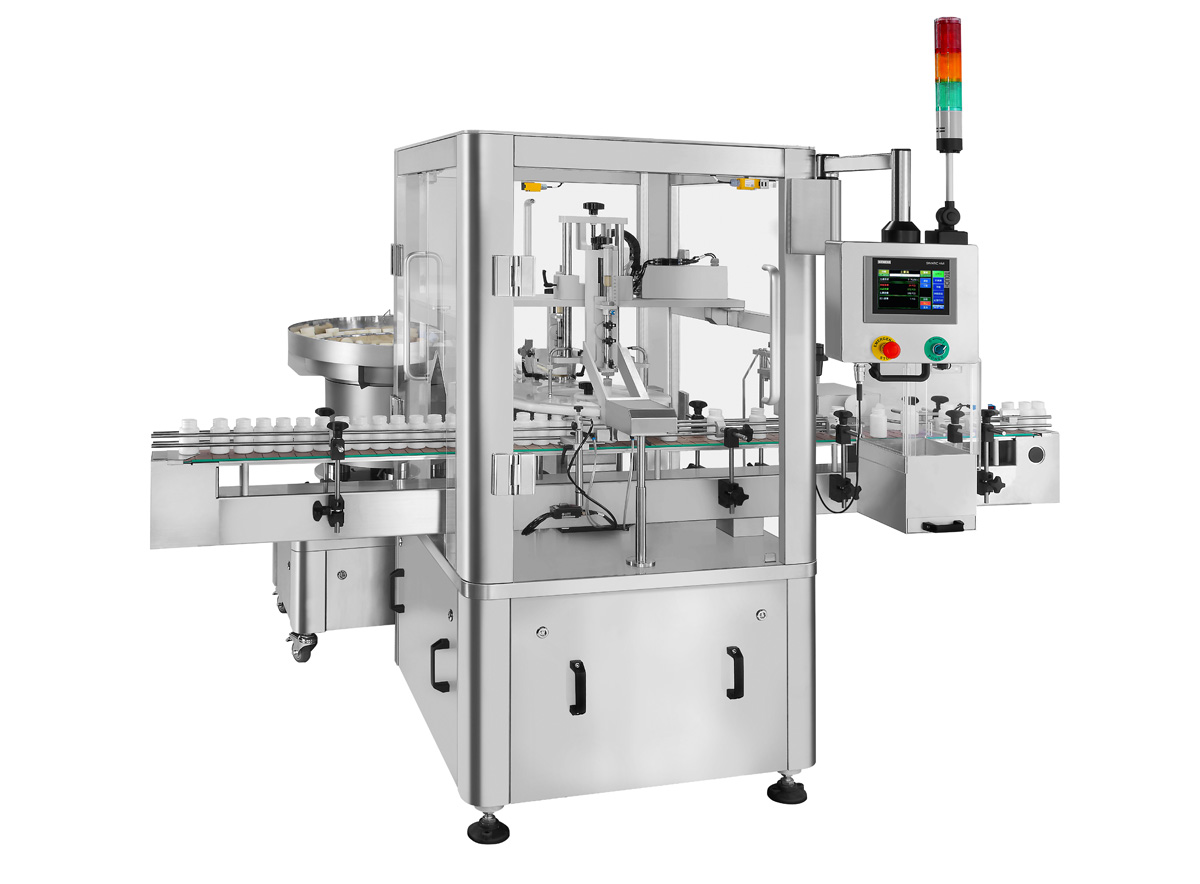

PLASTIC FOAM STOPPER INSERTER

CVC 1115

The CVC 1115 Plastic Foam Stopper Inserter at speed of up to 70 insertions per minute. The system is designed to comply with cGMP requirements and is controlled by Siemens PLC.

STANDARD FEATURES

  • Servo motor and Siemens PLC Controlled
  • No-bottle no-fill
  • Vibratory Feeder Bowl
  • Safety guards with automatic machine stop
  • Emergency Button
  • Pneumatic gating with container detection
  • Quick and easy change over
  • cGMP compliance
  • Type 304 stainless steel bin, frame, enclosure panels
  • ISO 9001:2015 Certified
CVC 1115
CVC 1115
CVC 1115
CVC 1115

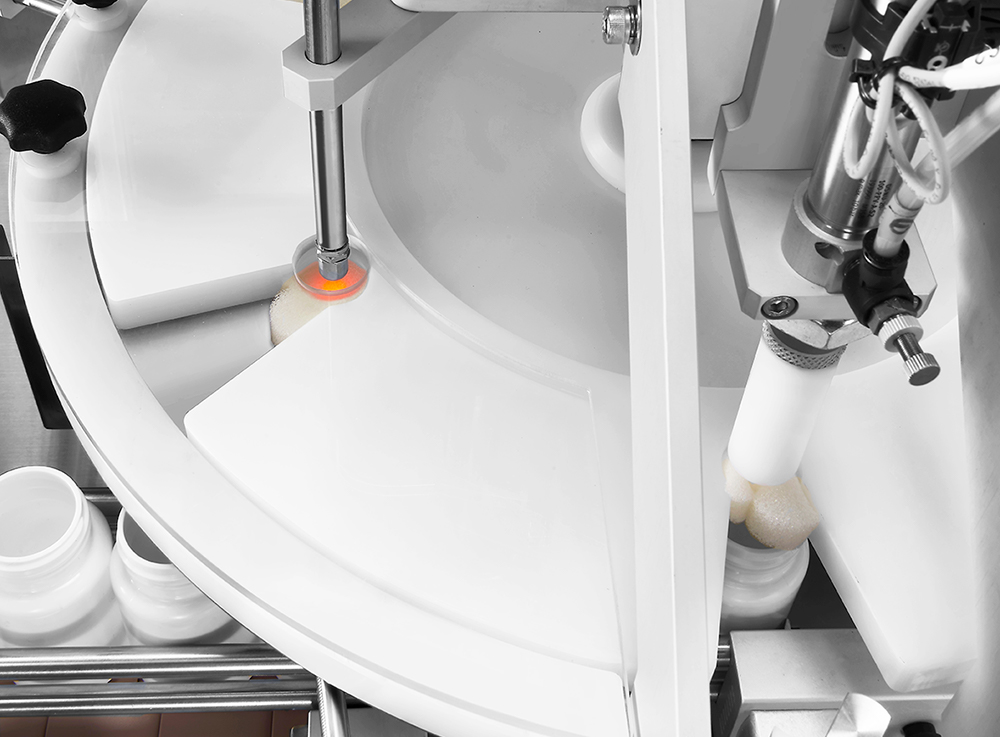

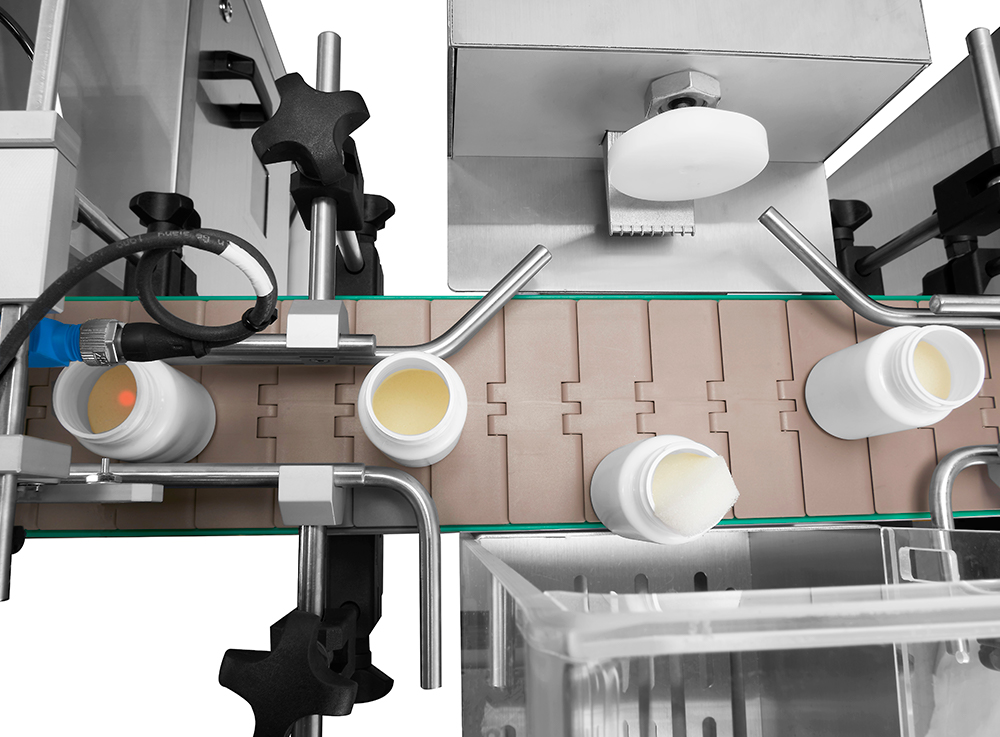

Missing plastic foam detection & reject system
Missing plastic foam detection & reject system

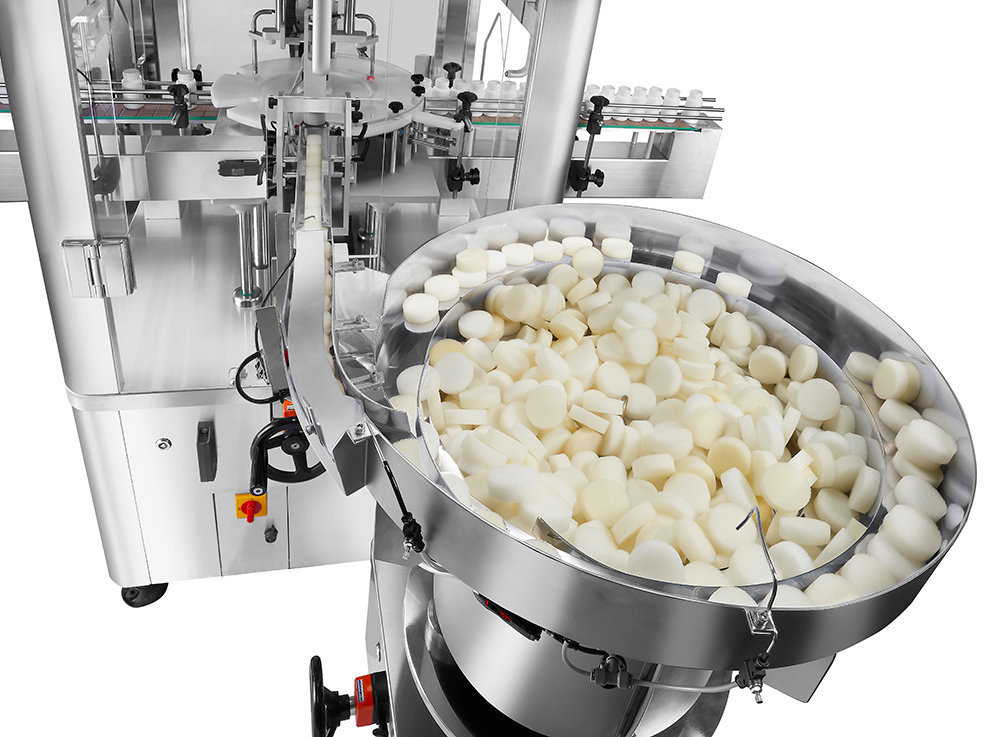

Automatic unscrambling vibrators for plastic foam.
Automatic unscrambling vibrators for plastic foam.
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Motorized sanitary conveyor (6" wide belt available)
  • Missing plastic foam detection & reject system
  • Tower lamp
  • 21 CFR Part 11 License

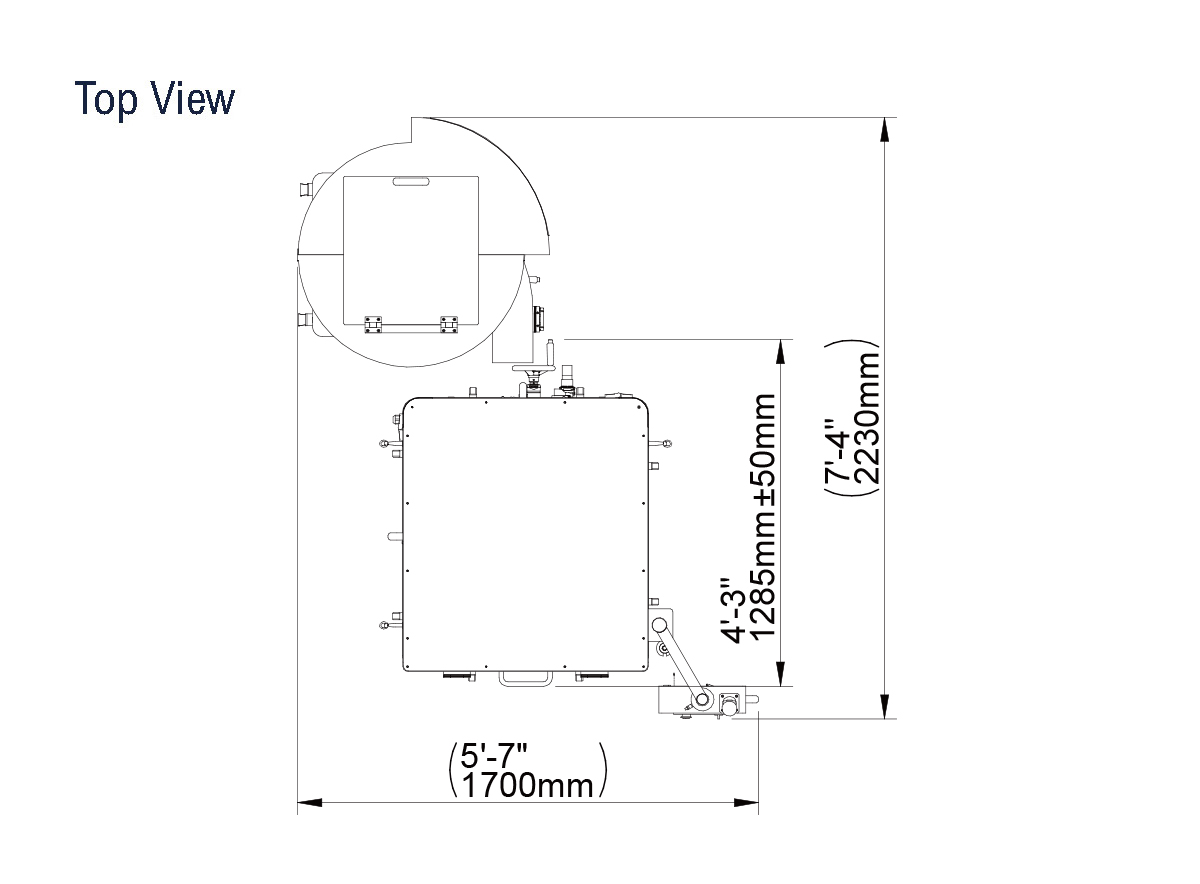

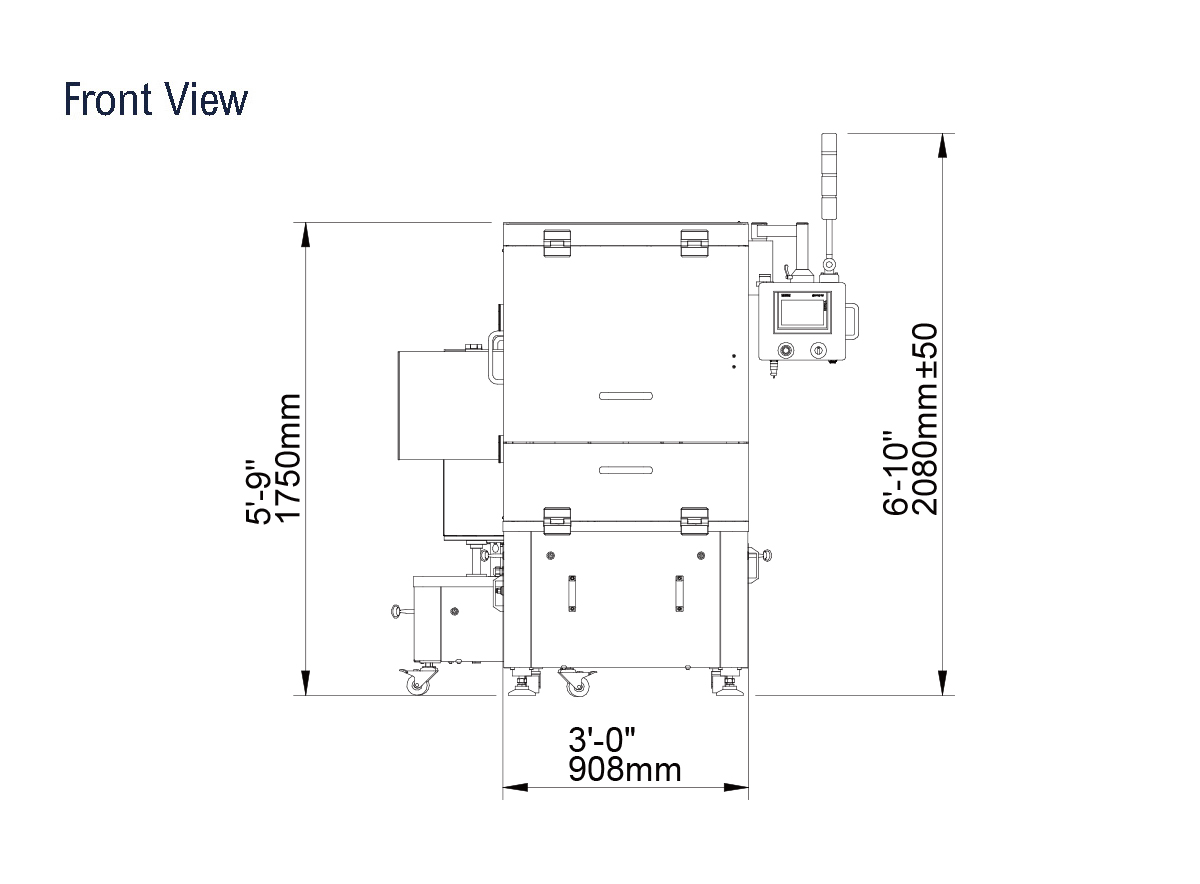

MACHINE LAYOUTS:






The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

Technical Specifications CVC 1115 Technical Specifications
Power Supply 220 V/ 50 HZ/ 3 PH
Power Consumption 1950 VA
Air Pressure 6 kgf/cm² (87psi) (ISO 8573-1)
Air Consumption 200 L/min (7 CFM)
Consumption Machine Dimensions 8'-2" x 6'-8" x 5'-9" (2500 mm x 2025 mm x 1758 mm) (L x W x H)
Speed Up to 70 Bottles per Minute(BPM) with single insertion per head
Bottle Height 1⅝" to 4¾" (40 mm - 120 mm)
Bottle Diameter 1⅝" to 3⅛" (40 mm - 80 mm)
Neck Opening 1⅝" to 3" (40 mm - 75 mm)
Foam Dia. 1⅝" to 3" (40 mm - 75 mm)
Foam Height ⅝" to ¾" (15 mm - 20 mm)
Net Weight 1000 kg
Noise Level 70~78 dB
