INLINE CAPPER

CVC 1206

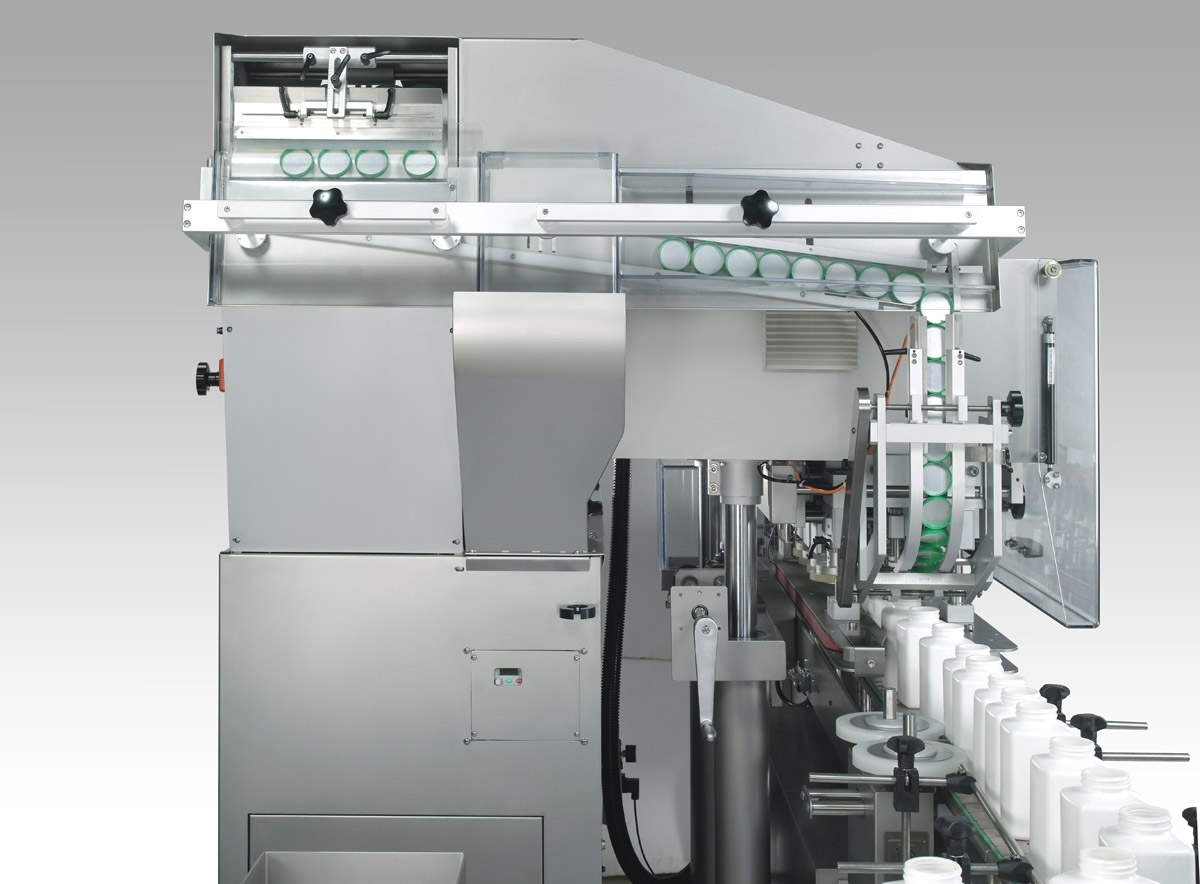

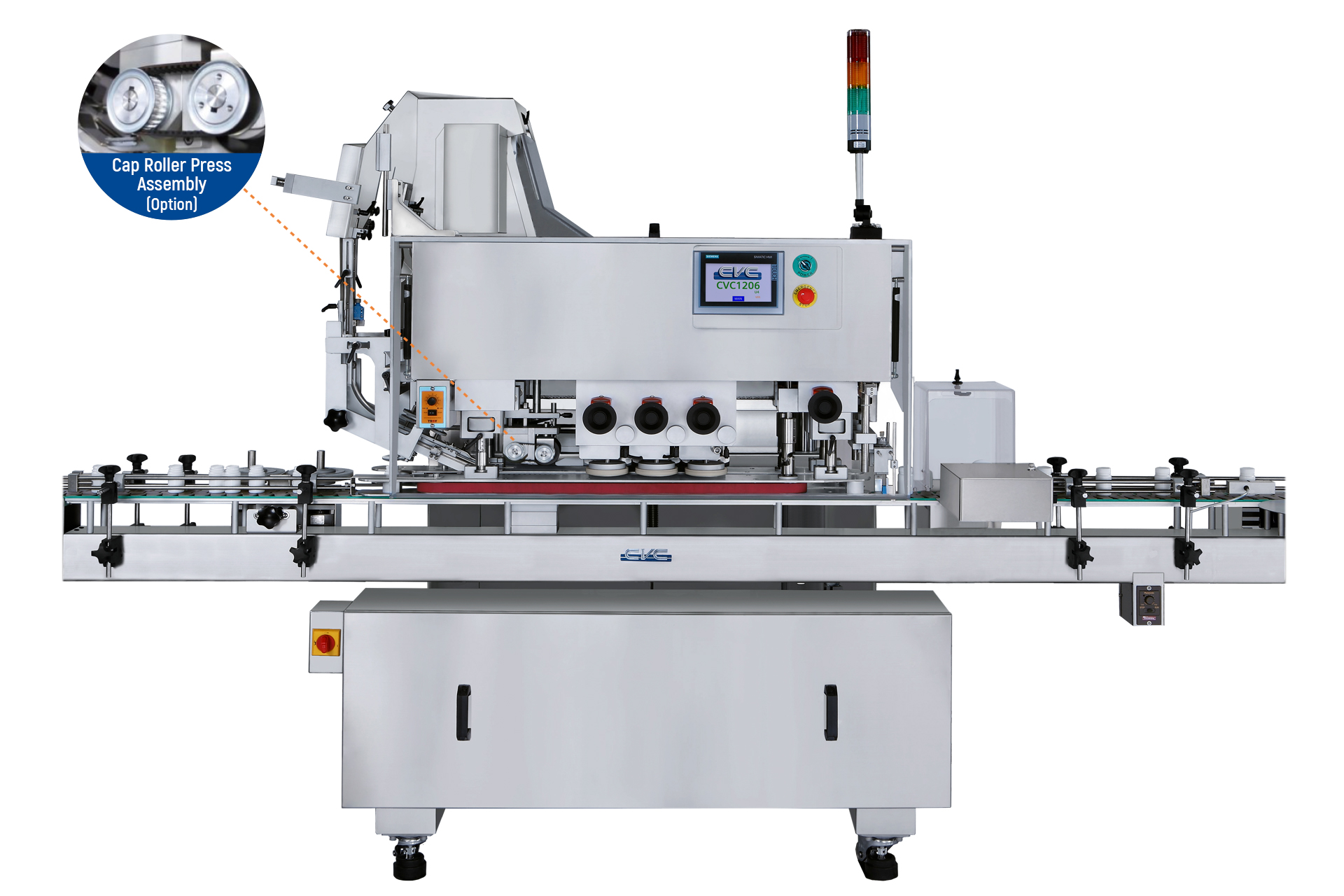

The CVC 1206 Capper is a very flexible machine designed to apply and tighten screw-on caps onto containers at rates of up to 140 bottles per minute. The CVC 1206 is Siemens PLC controlled. The system is designed with two pair of belt tightening belt assemblies. Options include tower lamp, hopper level control, cap inspection (level cap, foil seal, and no cap), reject, and reject verification.

  • Built to cGMP standards
  • Stainless steel construction
  • Quick and easy change over

STANDARD FEATURES

  • Siemens PLC Controlled
  • Cap tightening station with 2 belt tightening systems
  • 9.1 cu ft. integrated cap hopper elevator
  • ISO 9001:2015 certified

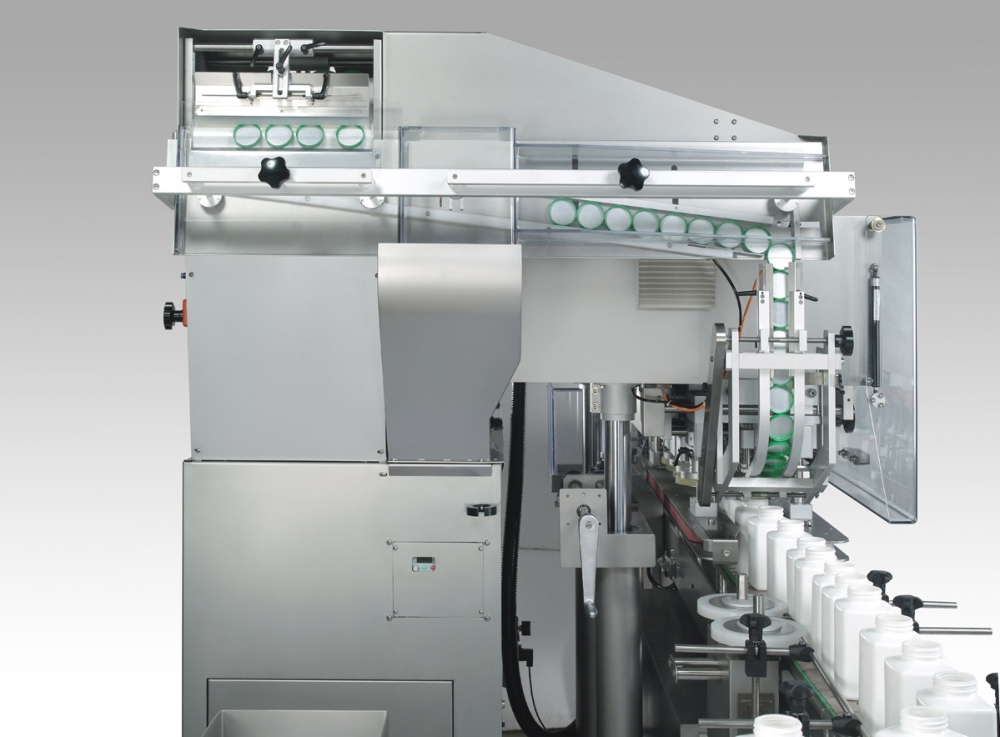

CVC 1206
CVC 1206
CVC 1206
CVC 1206
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Motorized sanitary conveyor (6" wide belt available)
  • Tower lamp, hopper level control
  • Cap inspection package (level cap, no cap, foil presence)
  • Rejection system, reject confirmation
  • Dual-belt gripping system
  • 21 CFR Part 11 License

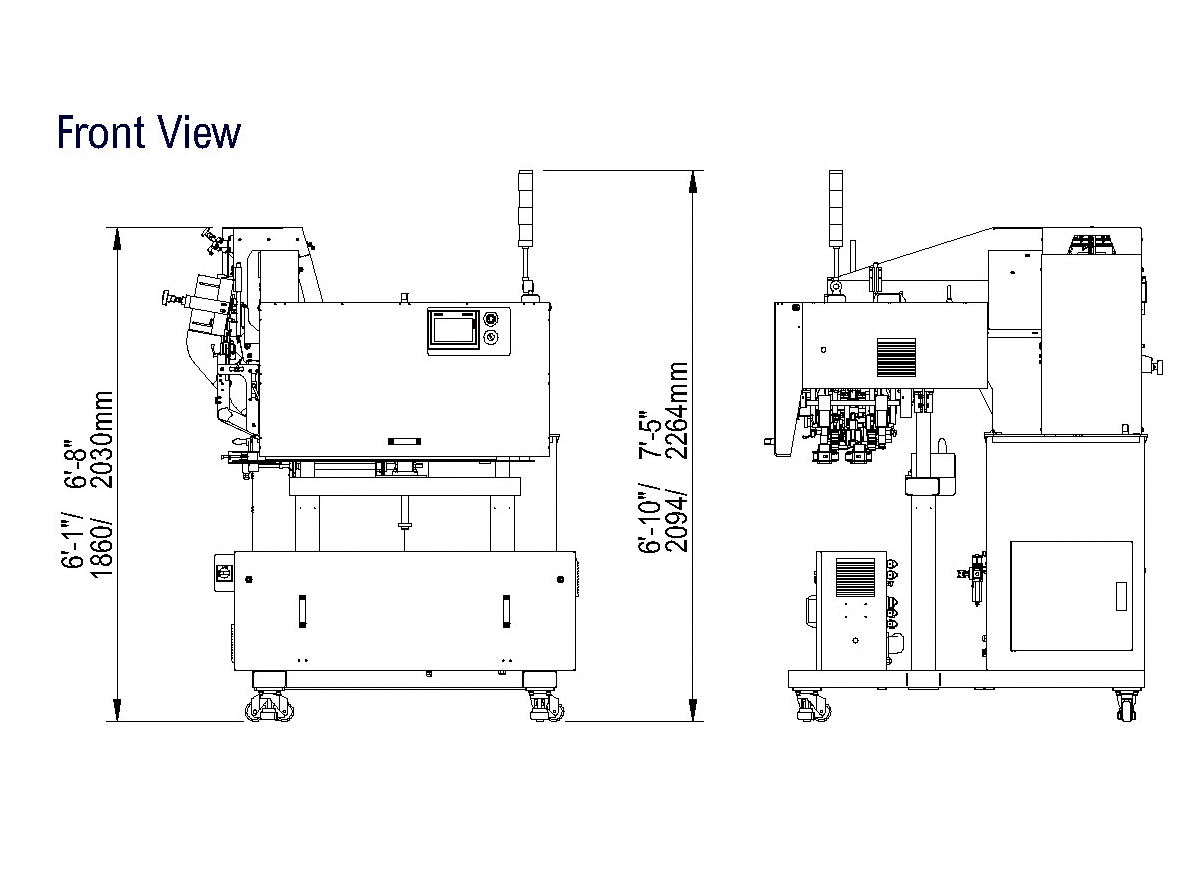

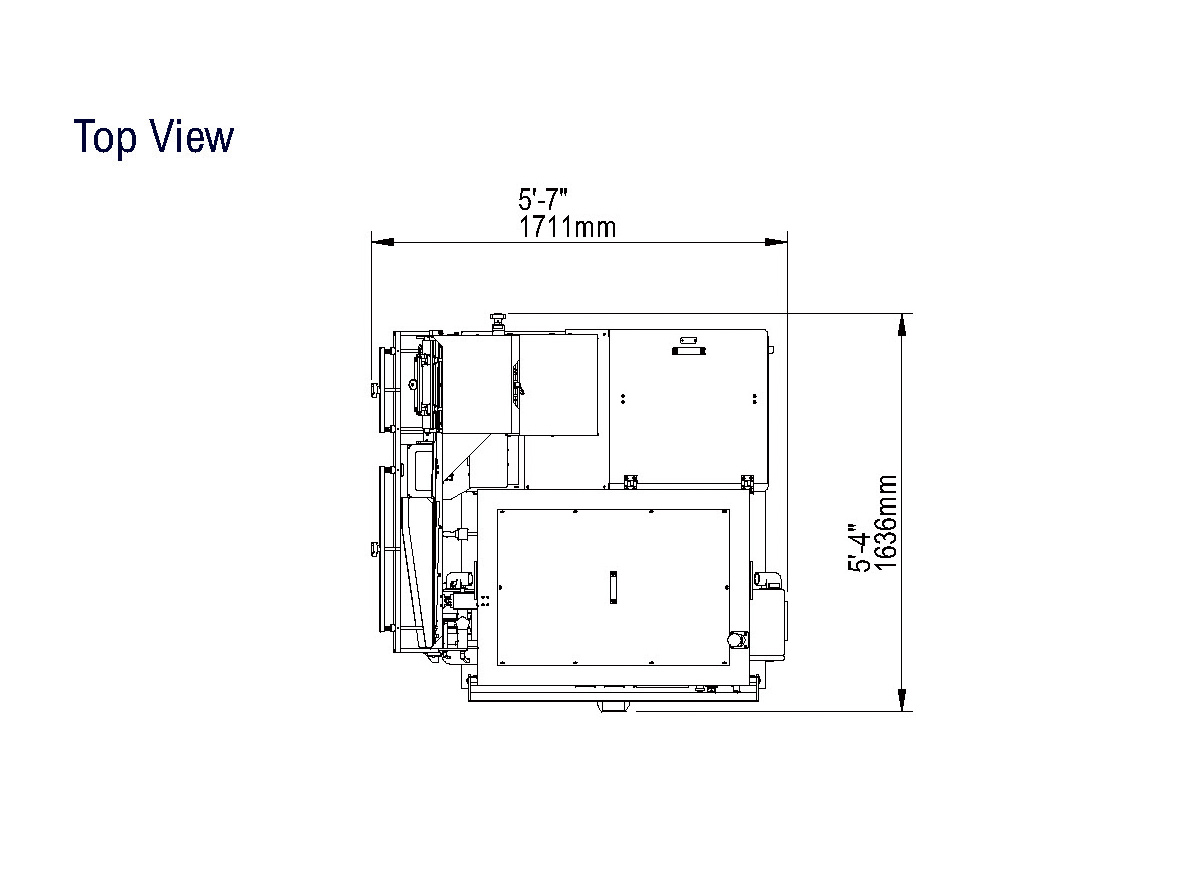

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals.


Technical Specifications CVC 1206 Technical Specifications
Cap Height ⅛” to ¾” (3mm - 22mm)
Cap Type Plastic screw and CRC
Cap Diameter 1-⅛” to 2-¾” (30mm - 70mm)
Power source 220V, 50/60 Hz, Single Phase
Power Consumption 7.5 Amp
Air Pressure Minimum 85 psi (ISO 8573-1)
Consumption Machine Dimensions 5'-7" x 5'-4" x 7'-5" (1711mm x 1636mm x 2264mm) (L x W x H)
Speed Up to 140 Bottles per Minute(BPM)
Bottle Height 2" to 7-⅞" (50mm to 200mm)
Bottle Body Height 2" (51mm) below the shoulder
Bottle Diameter 1-⅛” to 4½" (30mm - 114 mm) (maximum 7½” bottle diameter on a 6" wide conveyor)
Hopper Weight 397 lbs. (180kg)
Machine Weight 1684 lbs. (764kg)
Noise Level 78 dB
