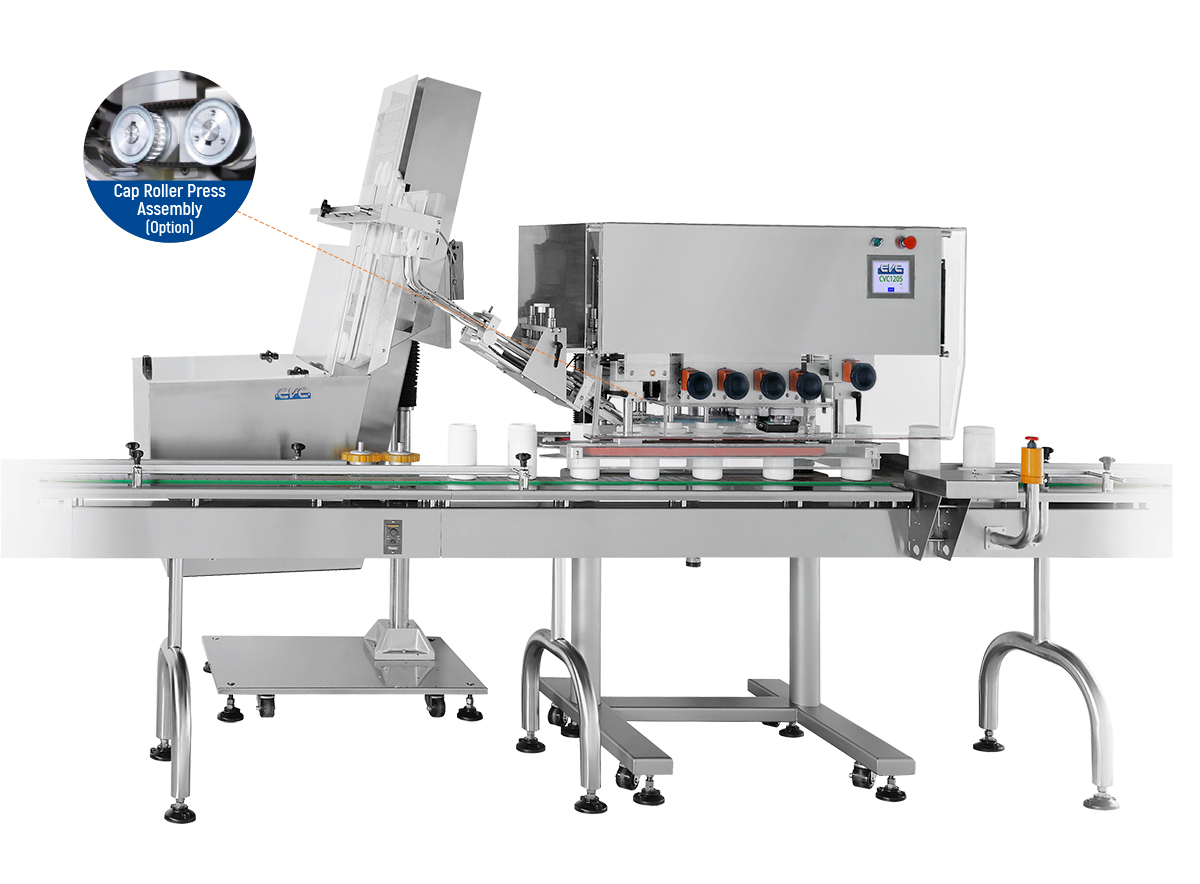

INLINE CAPPER WITH HOPPER ELEVATOR

CVC 1205

The CVC 1205 Capper is a very flexible machine designed to apply and tighten screw-on caps onto containers at rates of up to 140 bottles per minute. The CVC 1205 is Siemens PLC controlled. Options include tower lamp, hopper level control, cap inspection (level cap, foil seal, and no cap), reject, and reject verification.

STANDARD FEATURES

  • PLC Controlled
  • Memory capacity for 10 jobs
  • Cap tightening station with 3 sets of spindles
  • 9.1 cu ft. integrated cap hopper elevator
  • ISO 9001:2015 certified

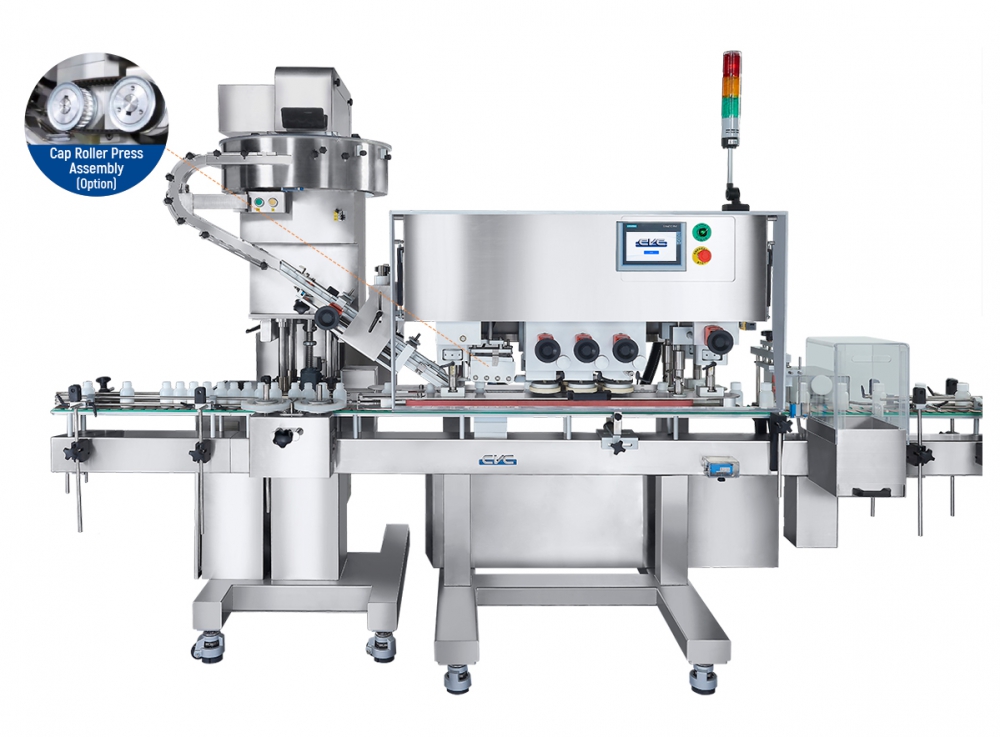

CVC 1200W & CVC 1205
CVC 1200W & CVC 1205
CVC 1200K CENTRIFUGAL CAP FEEDER
CVC 1200K CENTRIFUGAL CAP FEEDER

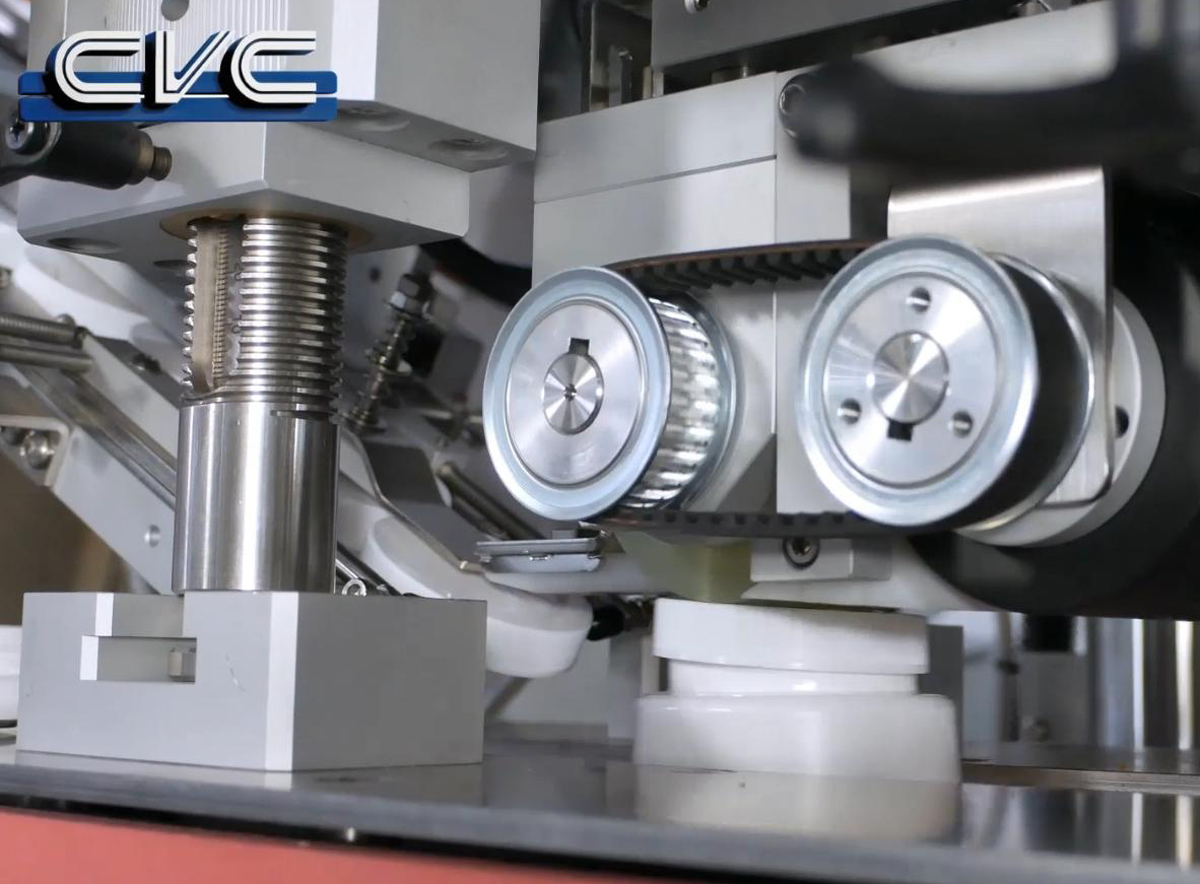

壓輪組+獨立式上壓臂設計
壓輪組+獨立式上壓臂設計
壓輪組+獨立式上壓臂設計
壓輪組+獨立式上壓臂設計

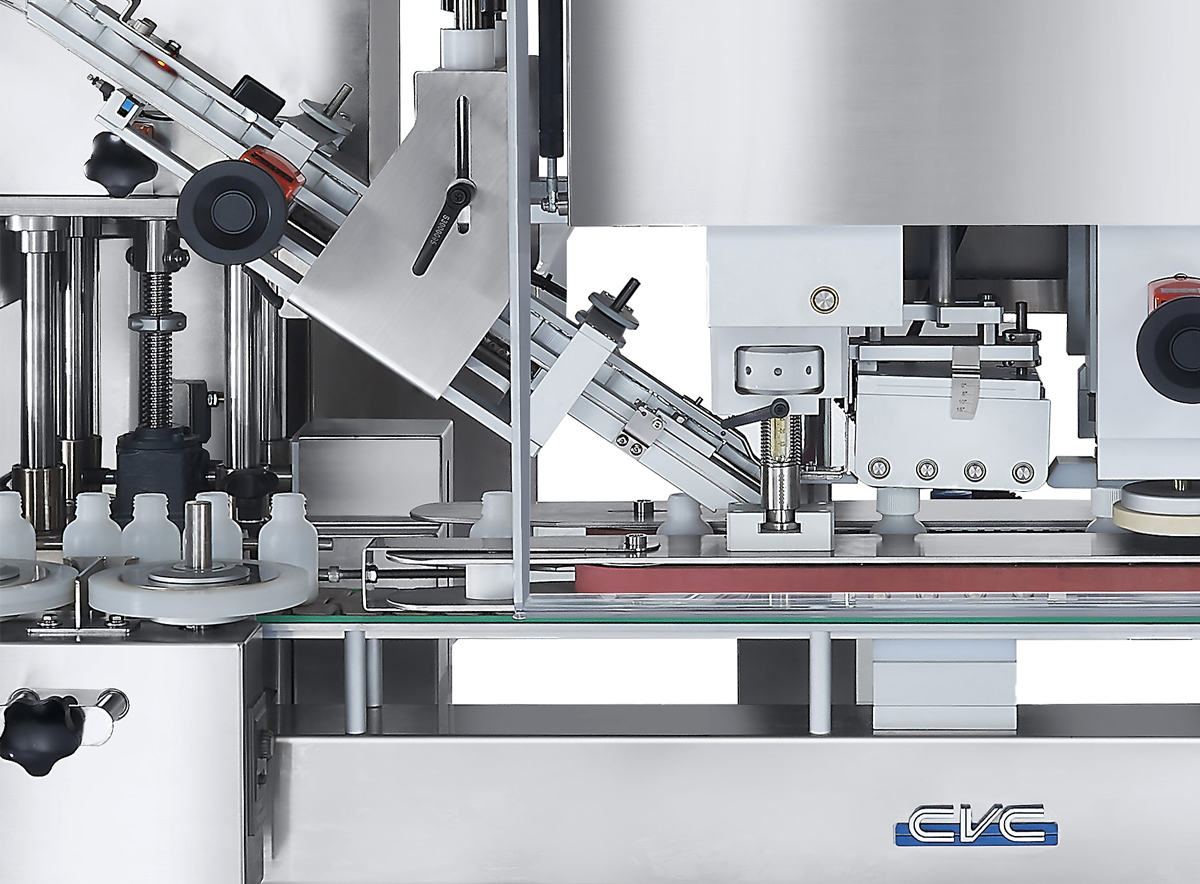

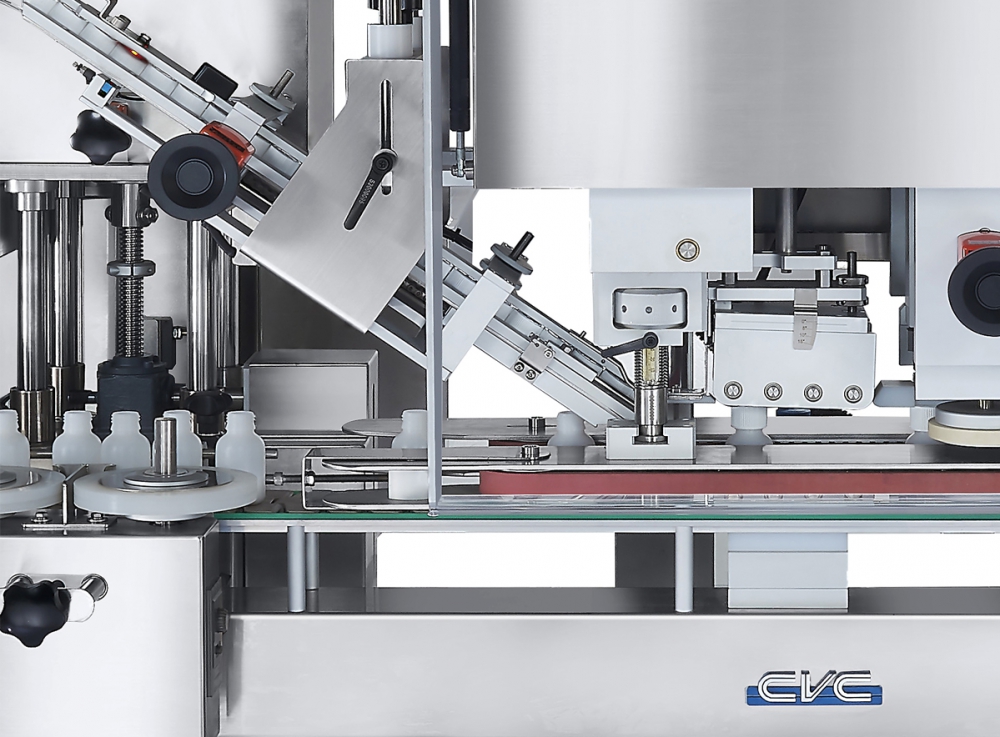

CVC 1205
CVC 1205

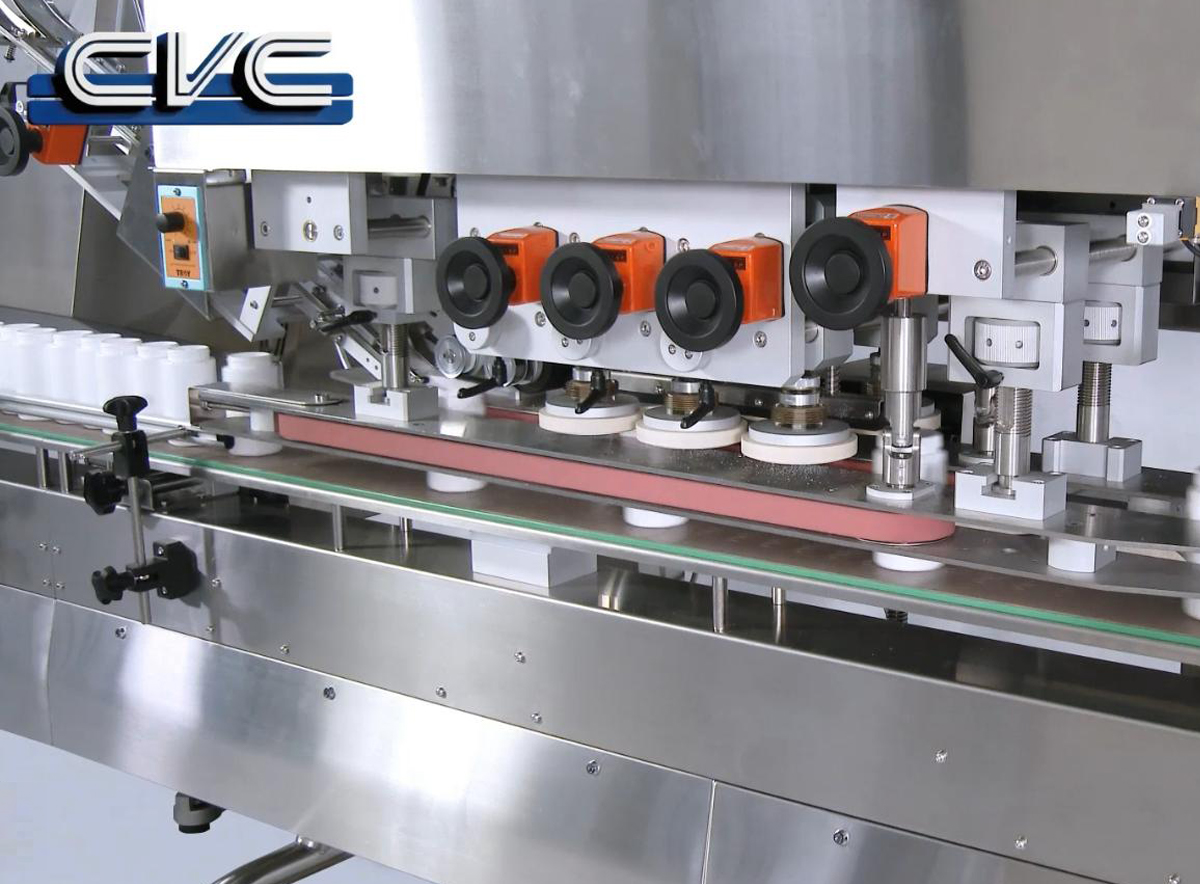

spindles
spindles

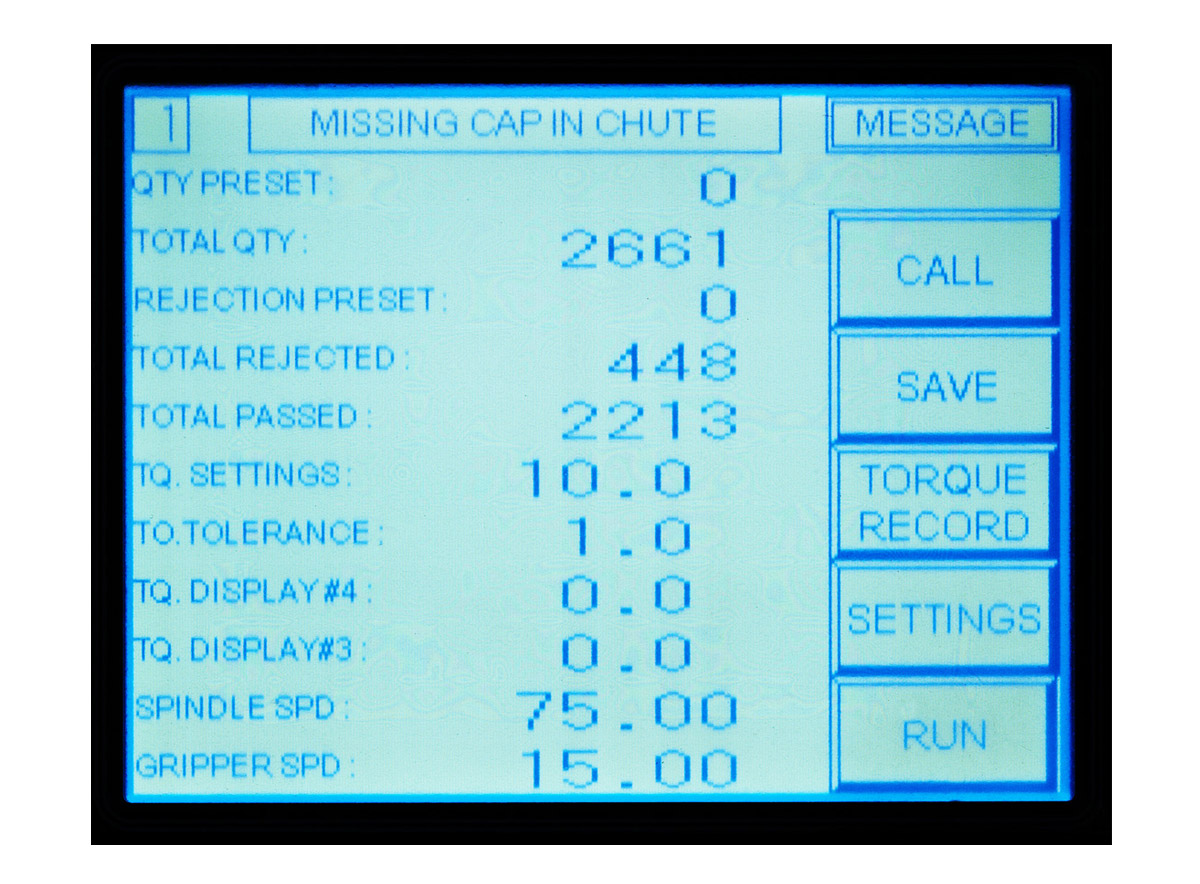

screen
screen

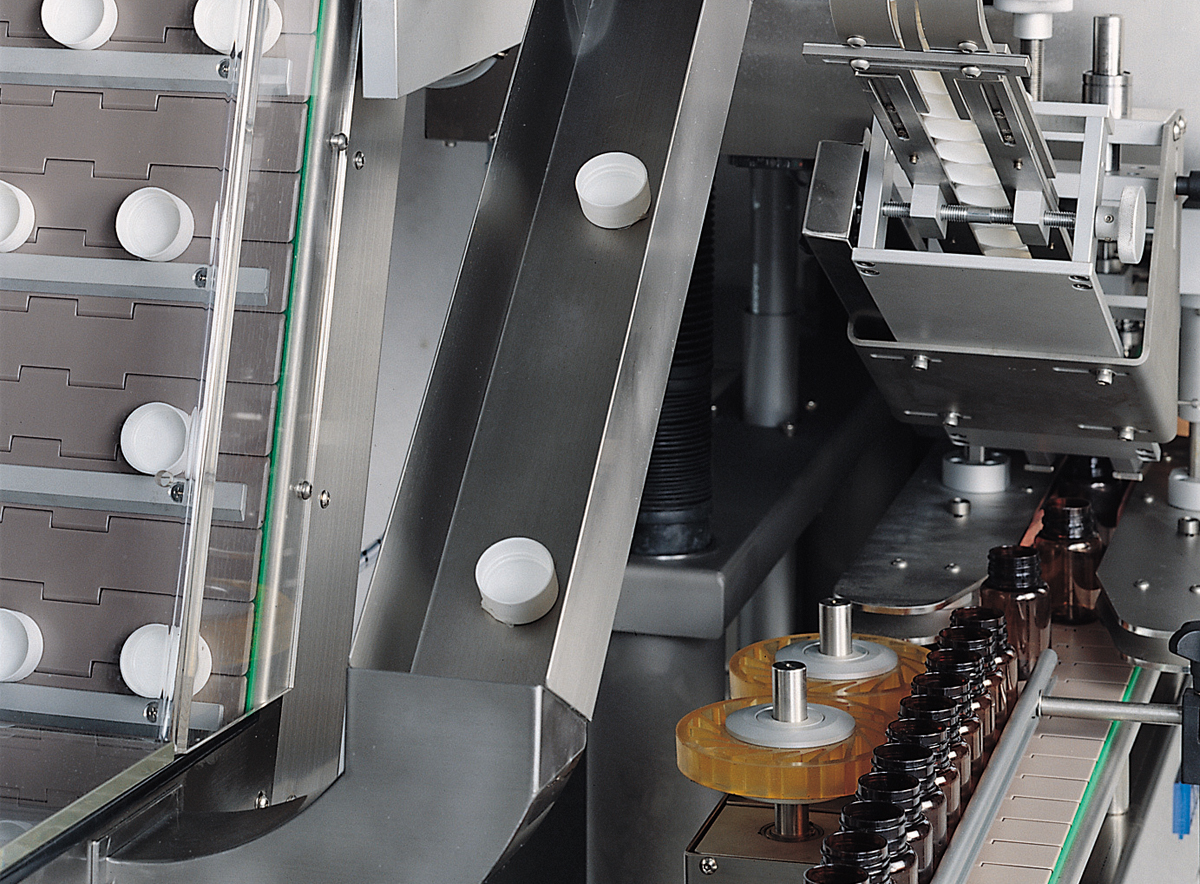

cap sorter
cap sorter
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Motorized sanitary conveyor (6" wide belt available)
  • Tower lamp, hopper level control
  • Cap inspection package (level cap, no cap, foil presence)
  • Rejection system, reject confirmation
  • Dual-belt gripping system
  • 21 CFR Part 11 License

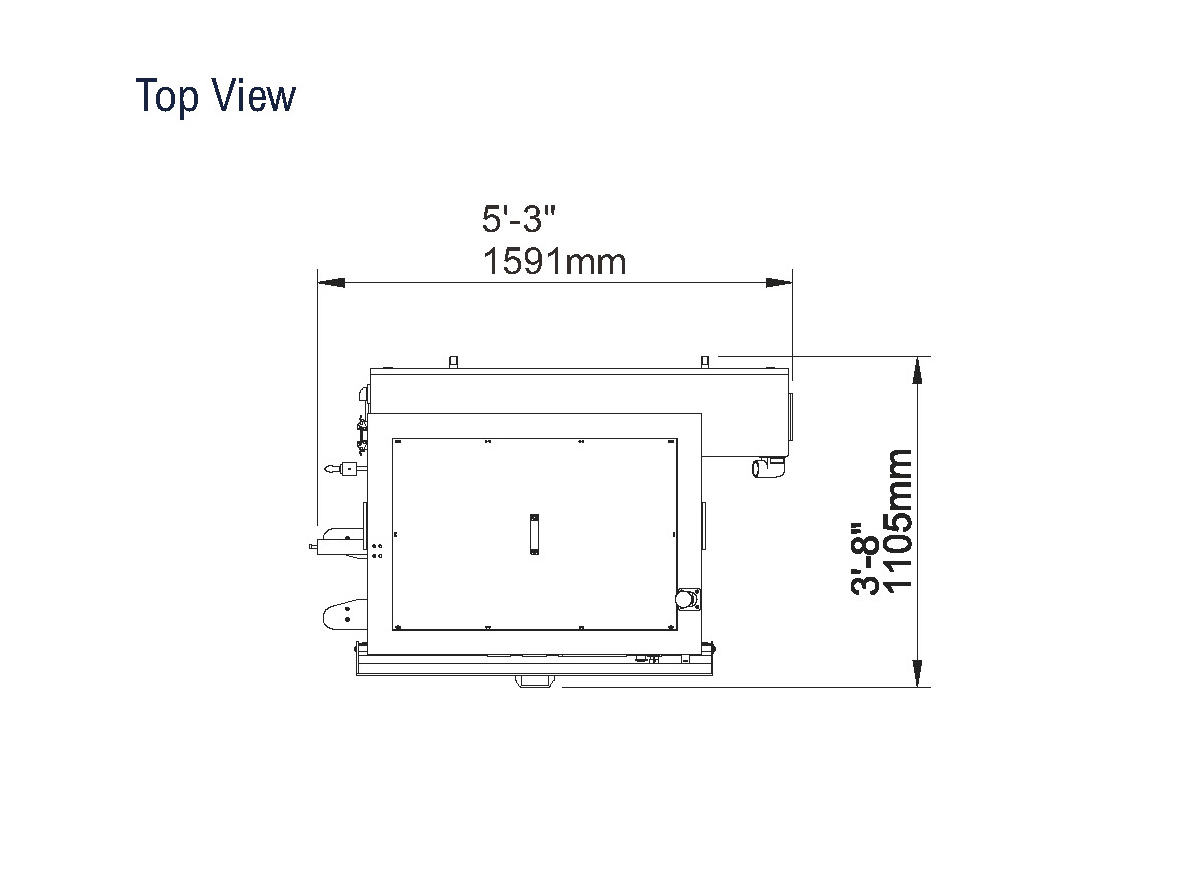

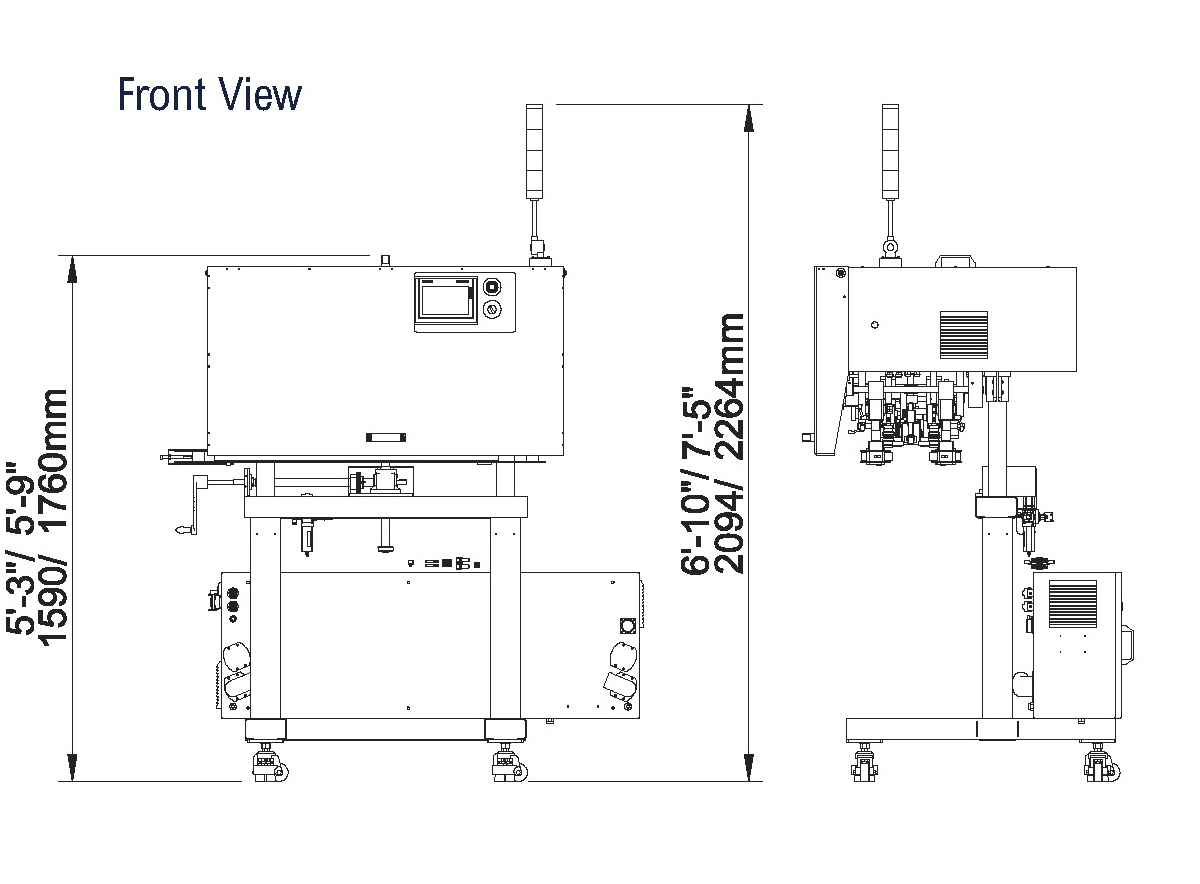

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.



Technical Specifications CVC 1205 Technical Specifications
Cap Height ½” to ¾” (13mm - 19mm)
Cap Type Plastic screw and CRC
Cap Diameter 1” to 4 ¼” (25mm - 108mm)
Power source 220V, 50/60 Hz, Single Phase
Power Consumption 7.5 Amp
Air Pressure Minimum 85 psi (ISO 8573-1)
Air Consumption 15-20 cfm
Consumption Machine Dimensions 5'-3" x 3'-8" x 7'-5" (1591mm x 1105mm x 2264mm) (L x W x H)
Speed Up to 140 Bottles per Minute(BPM)
Bottle Height 2" to 8" (51mm to 203mm)
Bottle Body Height 2" (51mm) below the shoulder
Bottle Diameter 1-¼” to 4 ½" (32mm - 114 mm) (maximum 7½” bottle diameter on a 6" wide conveyor)
Hopper Weight 397 lbs. (180kg)
Machine Weight 926 lbs. (420kg)
Noise Level 78 dB
