CVC Technologies, Inc. USA. Leading pharma packaging.

Rotary Capper

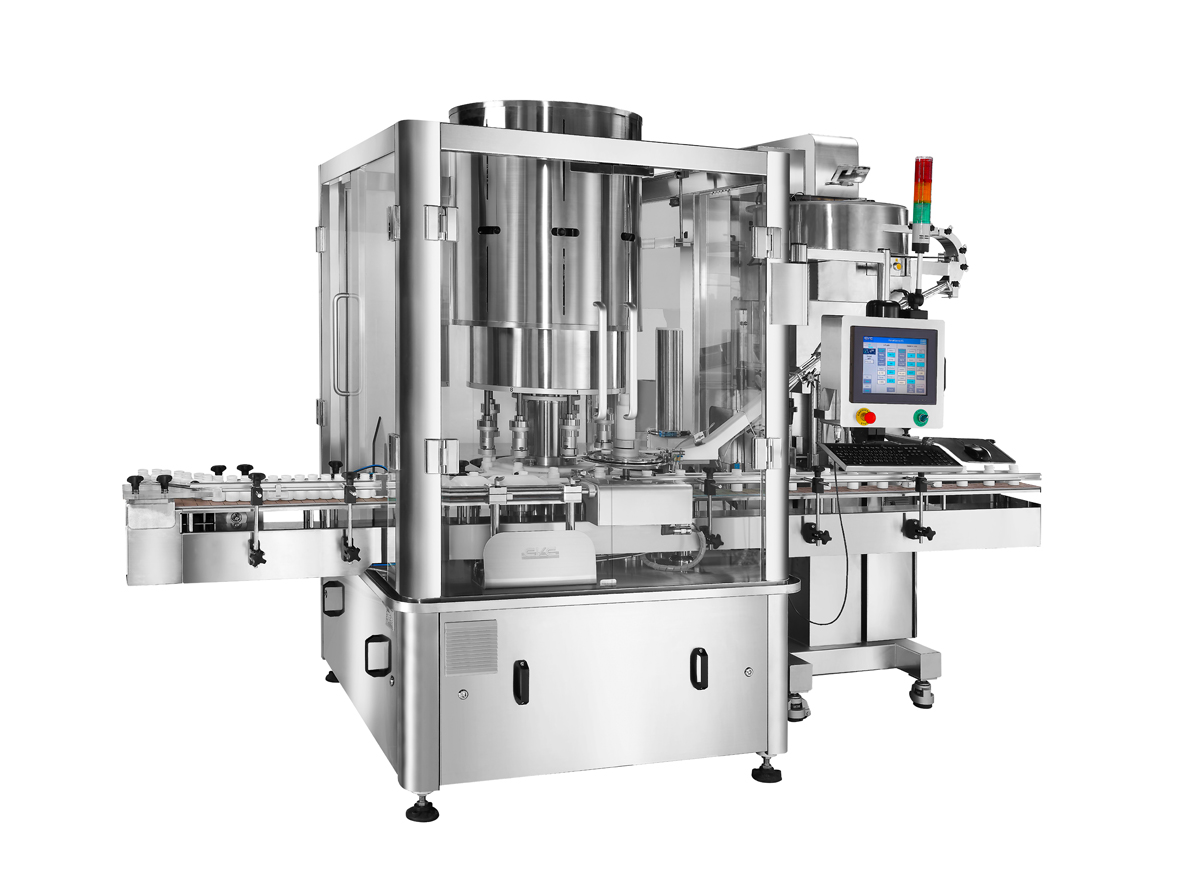

CVC 3074-8

The compact-designed CVC 3074-8 rotary capping system provides the great performance and stability to satisfy the modern bulk production.

CVC Rotary Servo Capping Systems are available for the following types of capping applications:

  • Plastic Screw-on caps
  • Snap-on caps
  • Push-in stoppers, and plugs

STANDARD FEATURES

  • Production Output is up to 200 bottles per min. (Actual output will be depending on customer's containers and caps. Our factory evaluation is required.)

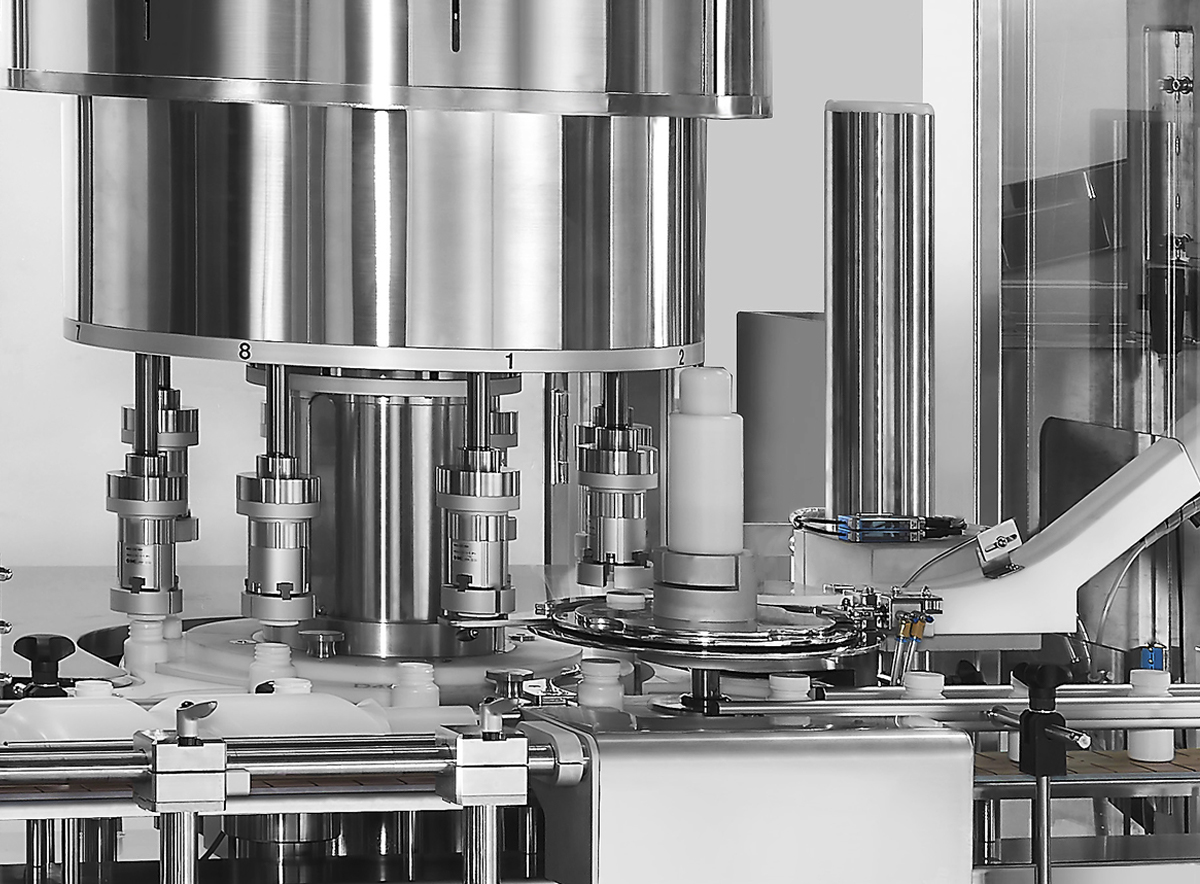

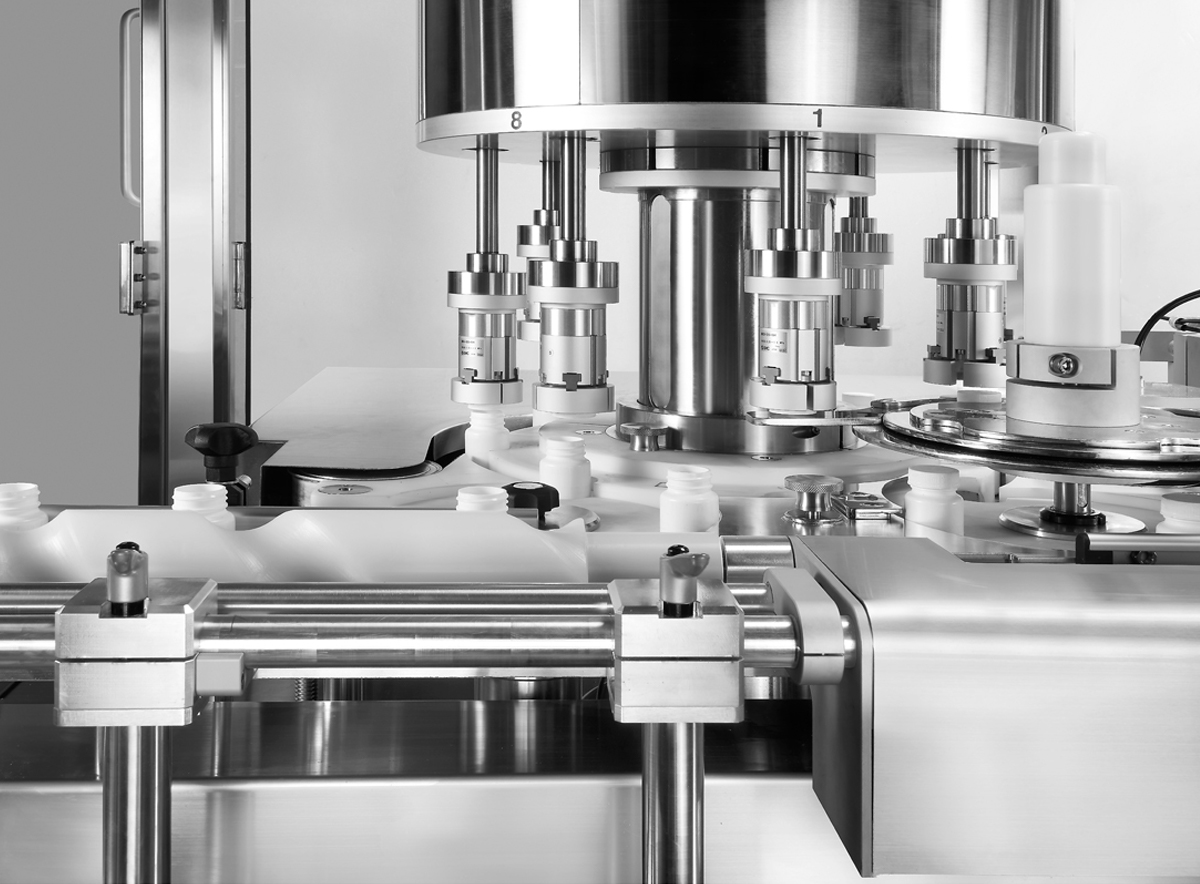

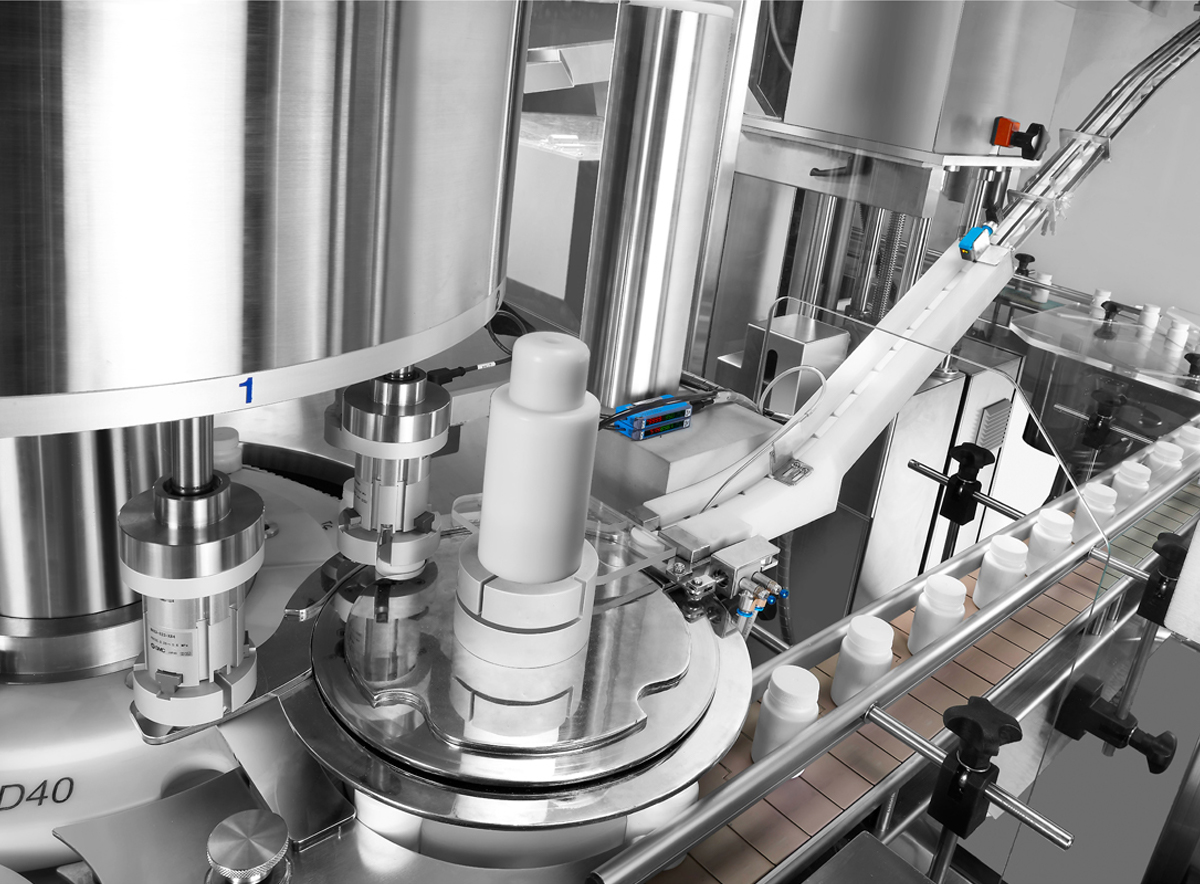

  • 8 Servo Driven Capping Heads
  • Table top design features ease of machine cleanup and operator's access
  • Stainless steel construction, meeting GMP regulations
  • Servo motor driven system is applied for consistent torque application
  • Siemens PLC and 12.1" Touch Screen Panel PC-based HMI
  • Up to 500 Recipes which allow operator to perform quick storage and recall of capping job memory
  • Main Drive System is servo motor driven
  • Capping head up/down and rotation are individually driven by advanced Linmot liner motors, which feature precise capping control and ease of adapting to a wide range of capping applications
  • Capping torque inspection system
  • CE standard PC safety guard
  • Type 304 stainless steel bin, frame, cap disc enclosure panels.
  • ISO 9001 : 2015 certified
CVC 3074-8
CVC 3074-8
CVC 3074-8
CVC 3074-8
CVC 3074-8
CVC 3074-8
CVC 3074-8
CVC 3074-8
CVC 1200K Centrifugal Cap Sorter
CVC 1200K Centrifugal Cap Sorter
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

Low maintenance cost and time:

With the use of servo main drive system, the CVC rotary capper requires only minimal maintenance.

AVAILABLE OPTIONS:

  • 21CFR Part 11 compliance
  • OPC UA for data collection
  • Cap Prefeeder (Cap Stock Elevator/Hopper)
  • Fallen bottle detection
  • Bottle & cap detection system is used for foil liner and crooked bottle detection
  • Rejection system is in conjunction with verification devices to removing unqualified containers: cocked caps, missing foil liners, low capping torque level (if capping torque is lower than set torque)
  • Rejection verification check
  • Bottle format changeover parts
  • Cap format changeover parts
  • Cap contact parts: type 316 stainless steel

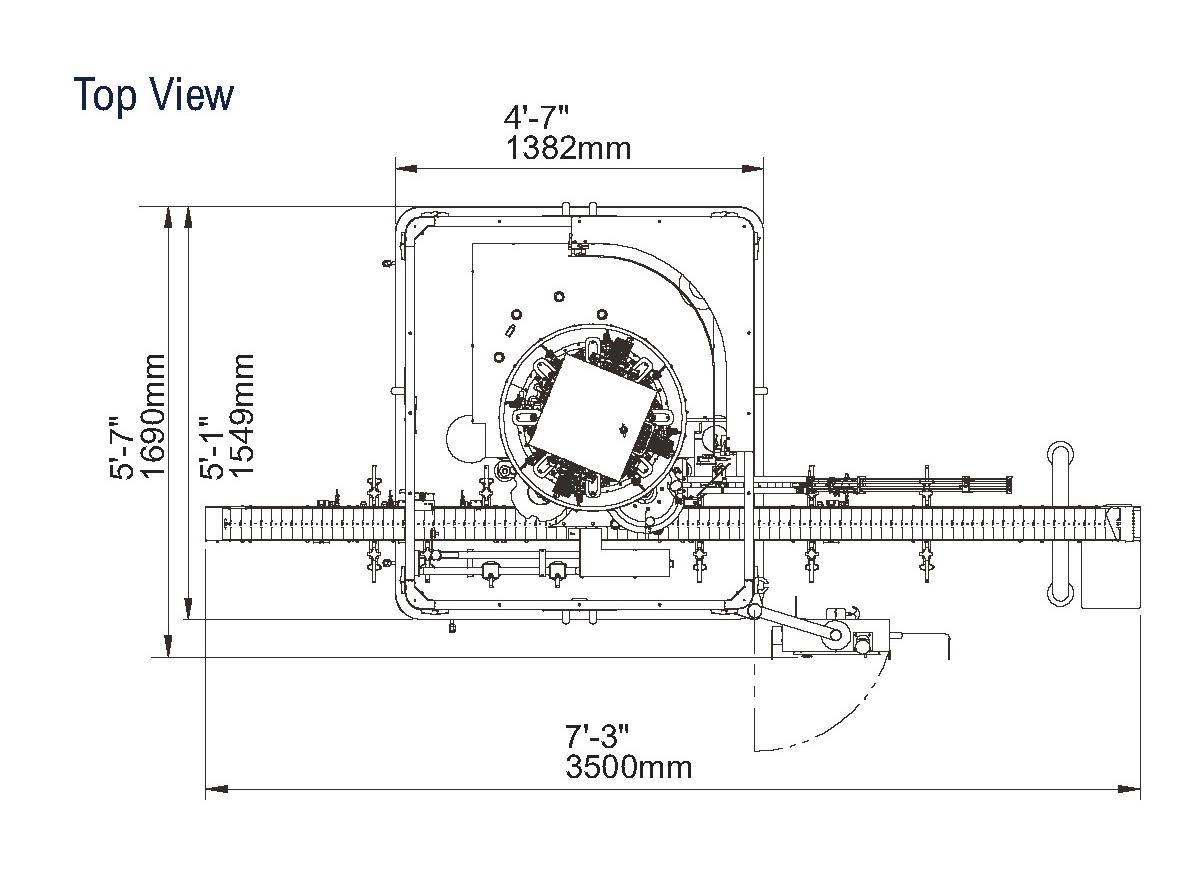

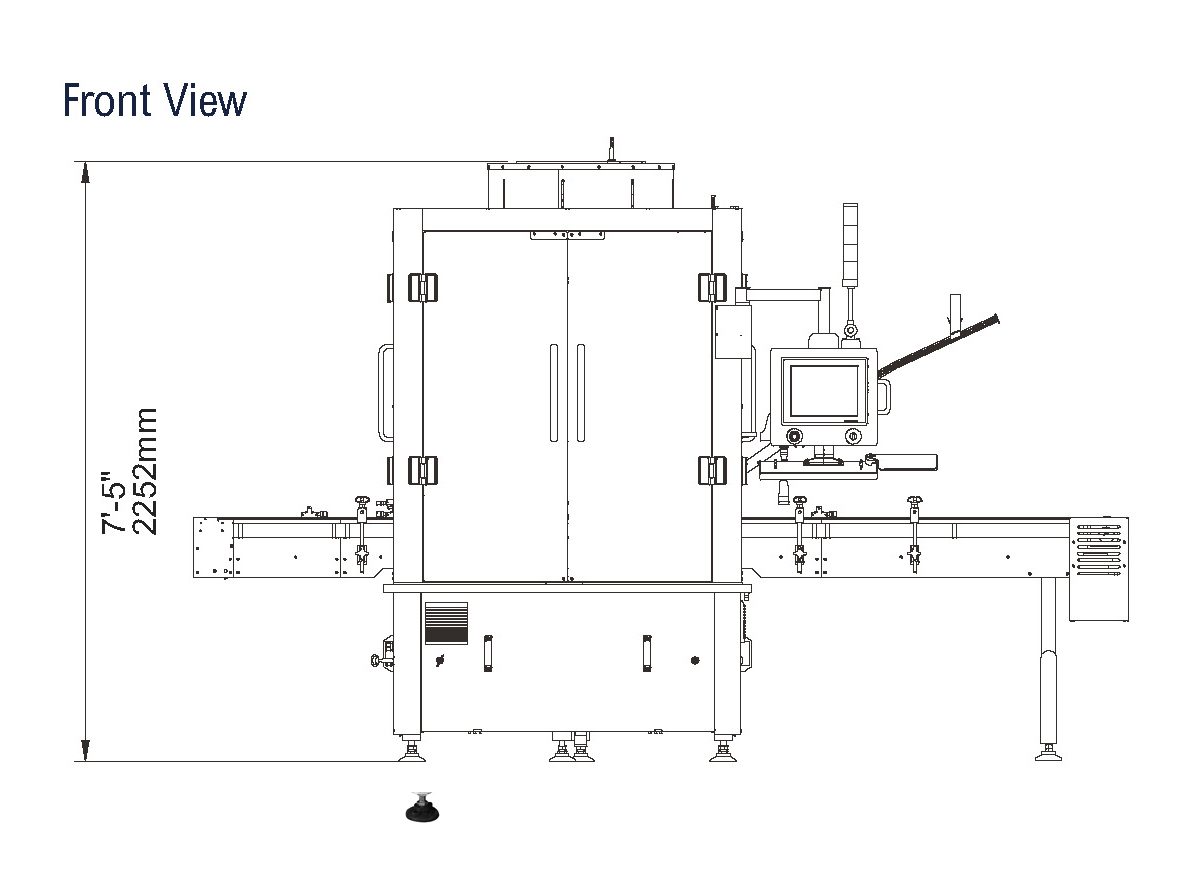

MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 3074-8 Technical Specifications
Productivity Up to 200 Bottles per Minute(BPM) based on 100ml round bottle (subject to trial confirmation)
Applicable Product Bottles shape: round and square bottles, irregular shaped bottle(*)
Cap types: Screw caps, Press-on caps (**)
* For irregular shaped bottles, please consult with CVC Engineering team
** For press-on caps, please consult with CVC Engineering team
Applicable Size Bottle Dia.: Ø30~70mm
Bottle Height: 65~220mm
Cap Dia.: Ø30~60mm
Cap Height: 8~22mm
Power Supply 380 V/ 50(60) HZ/ 3 PH
Power Consumption 10,000 VA (16 A)
Air Pressure 6 kgf/cm² (87 psi)
Air Consumption 1,947 L/min (68.8 CFM)
Consumption Machine Dimensions 3,500mm x 1,690mm x 2,252mm (11'-6" x 5'-7" x 7'-5") (L x W x H) (Including conveyor)
Machine Weight 2,223 Kg (4,900 Lbs)
Noise Level 70~75 db
