Front and Back Labeler with Wrap Station

CVC 430

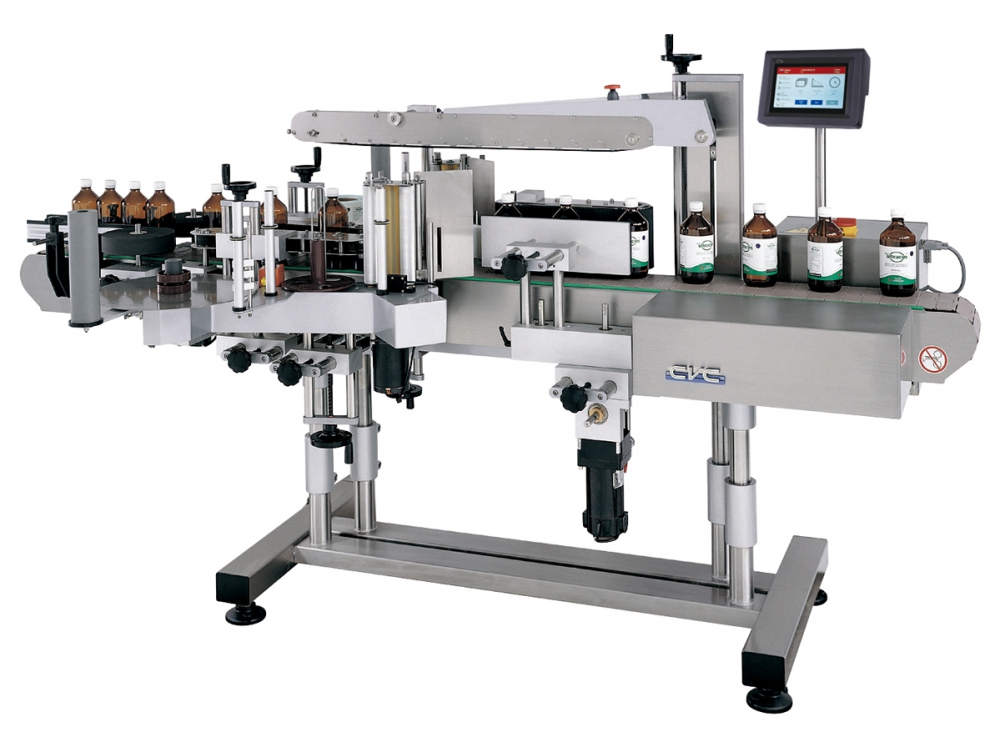

CVC Front and Back Labeler with Wrap Station CVC 430 is Dual-purpose machine designed to automatically apply pressure sensitive labels onto square or rectangular containers, and wrapping labels onto round containers.

It can also be ordered with an optional assembly for applying a label to 3, 4, or 5 panels of a square or rectangular container. The CVC 430 can satisfy all your requirements. Multiple applications but 1 Machine!

STANDARD FEATURES

  • SelfSet™ Auto Adjusting Control System
  • Stepper Motor Driven Head Labeling
  • Touch Screen HMI
  • Label Head with up to ± 1 mm (1/32”) Accuracy
  • Separator Wheel for Controlled Spacing
  • Top Hold Down Belt Assembly
  • Stainless Steel Frame on Lockable Casters
  • Stainless Steel Conveyor with Top Chain
  • Type 304 Stainless Steel Frame, Enclosure Panels

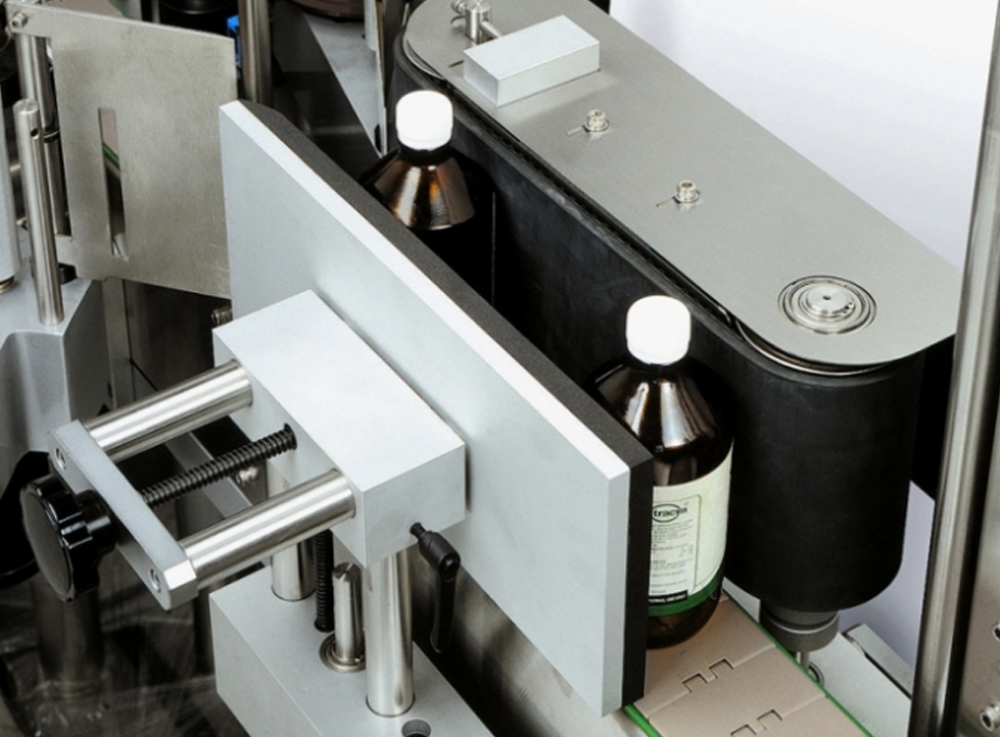

CVC 430
CVC 430
CVC 430
CVC 430

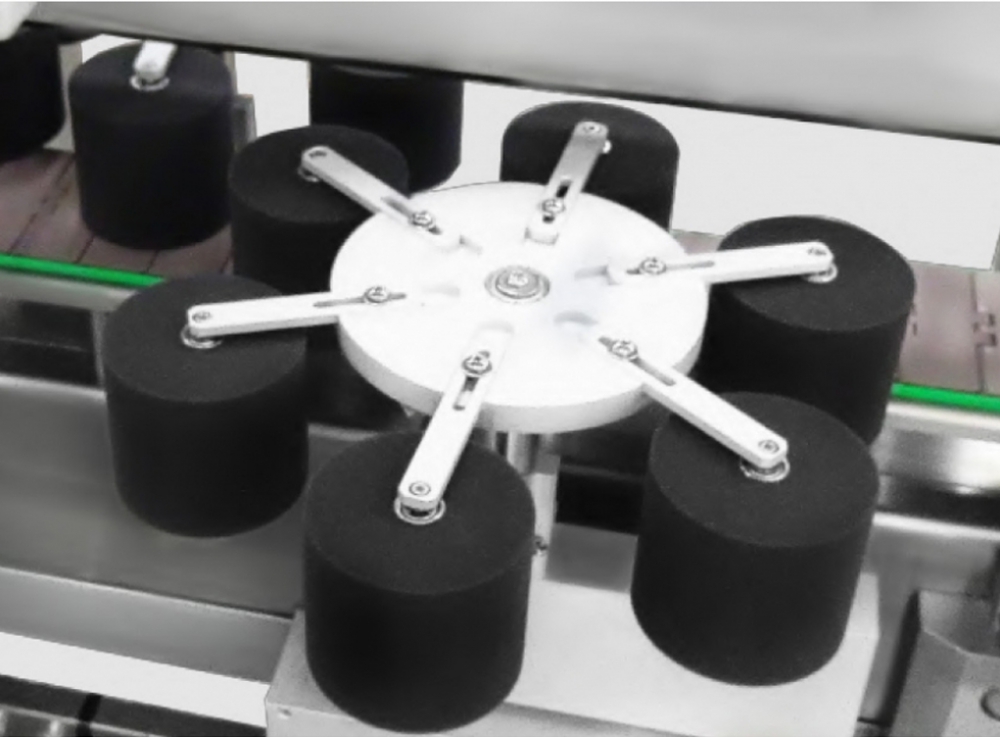

5-panel wrap station. (option)
5-panel wrap station. (option)

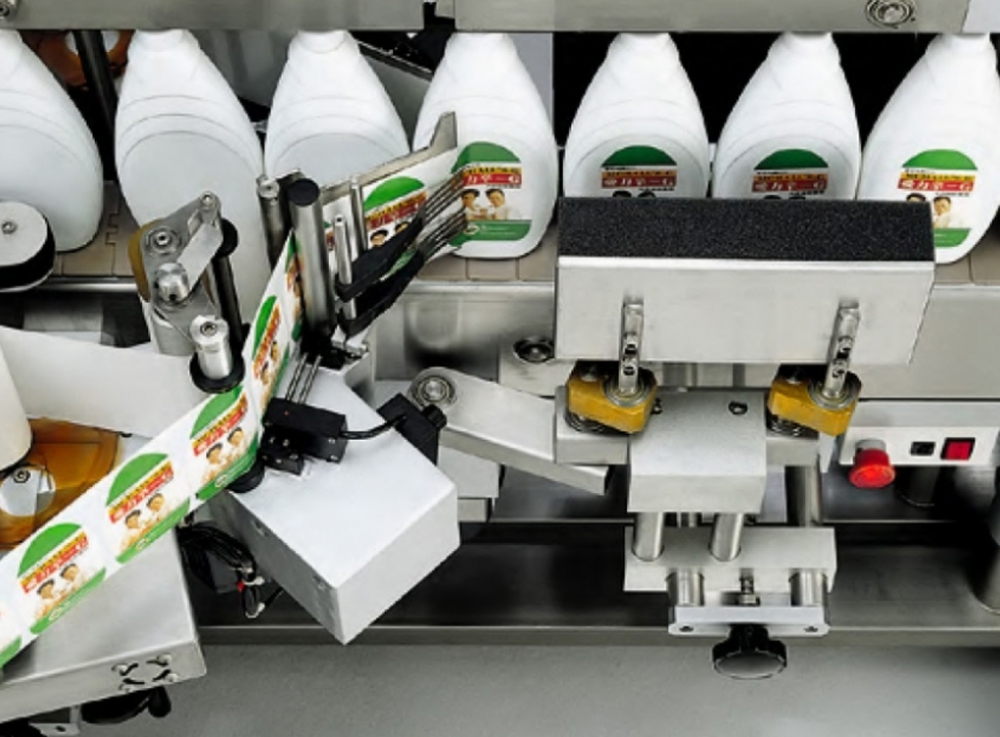

Push & Press Attachment. (option)
Push & Press Attachment. (option)

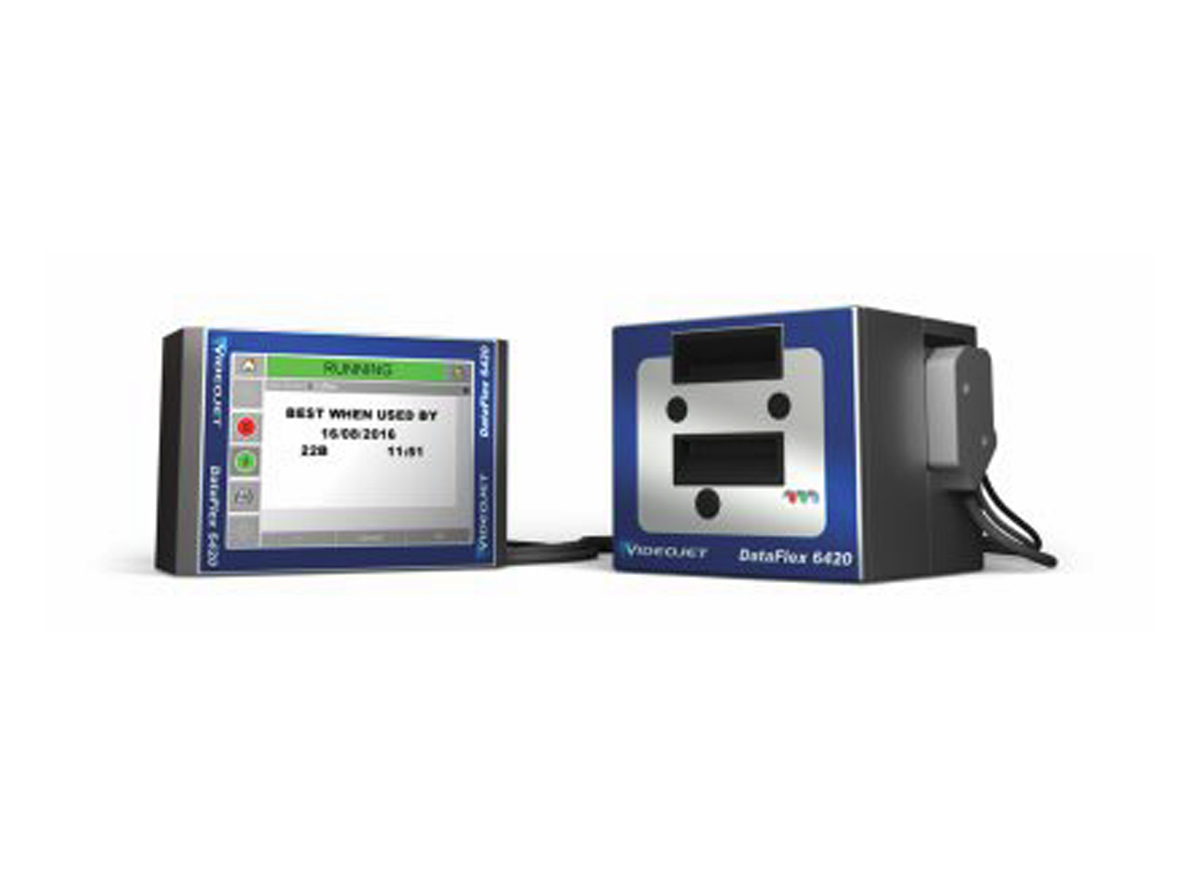

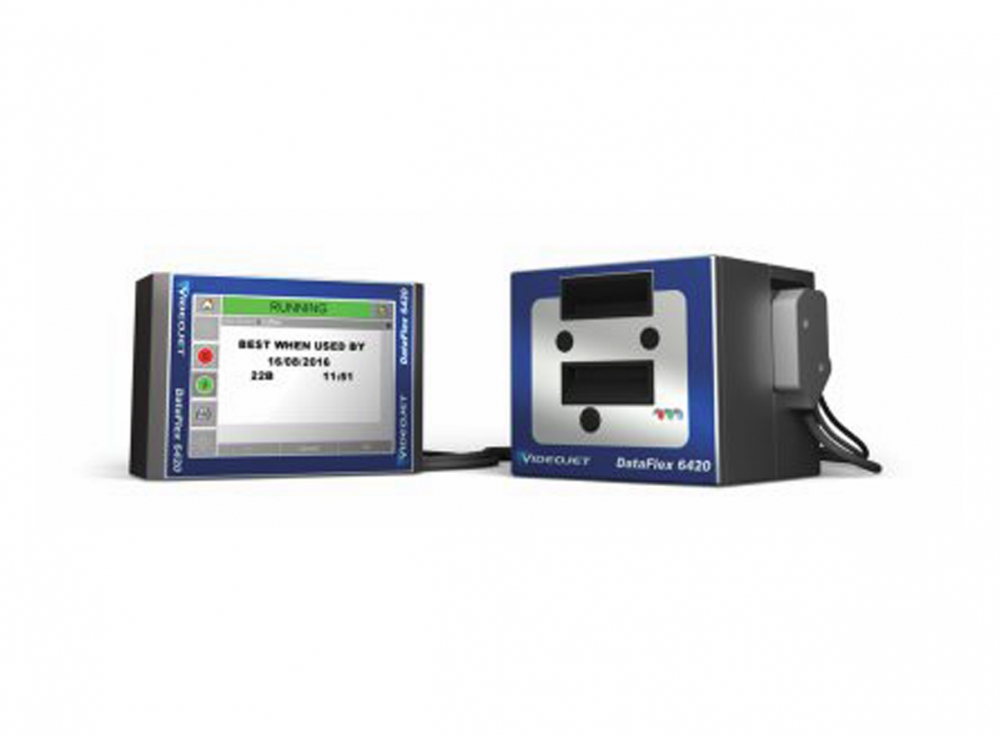

THERMAL TRANSFER PRINTER
THERMAL TRANSFER PRINTER

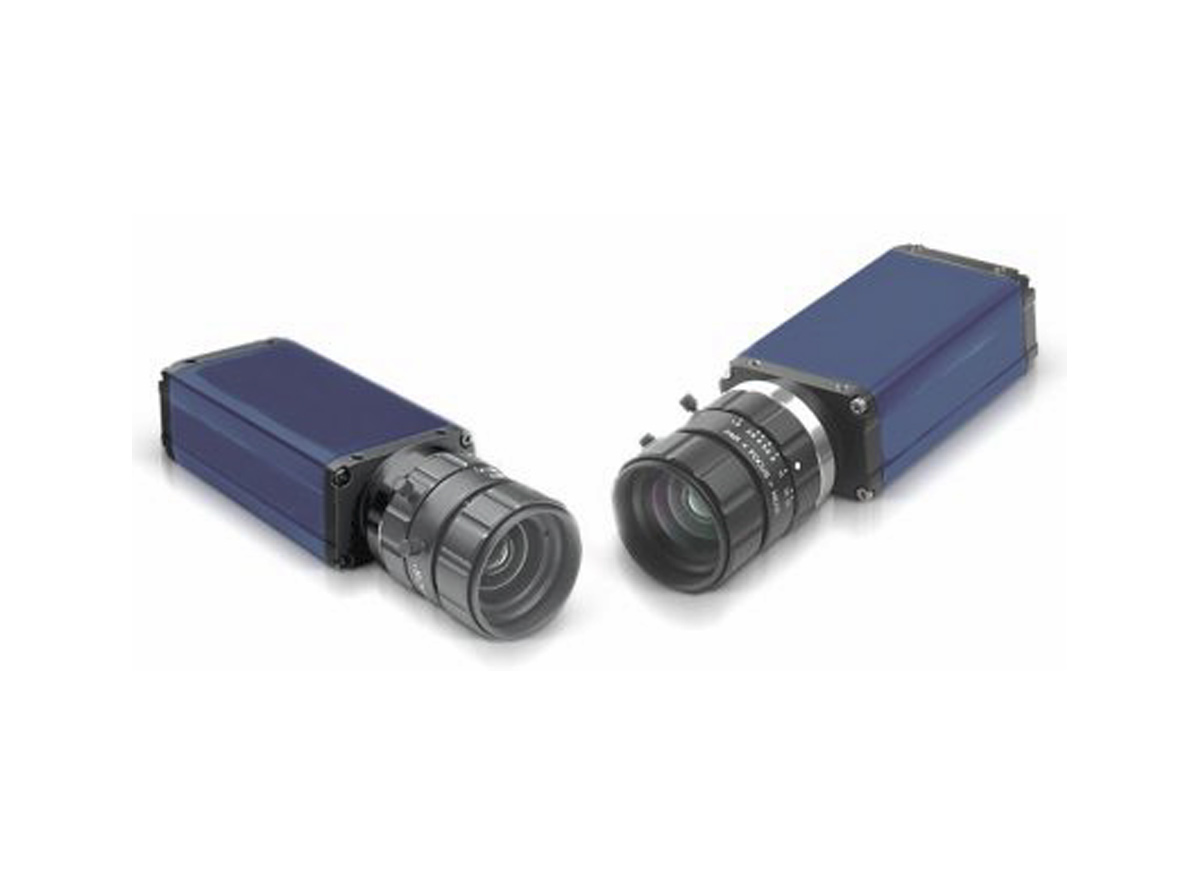

VISION INSPECTION SYSTEMS
VISION INSPECTION SYSTEMS
Previous Next Play Pause
CVC 430 CVC 430 5-panel wrap station. (option) Push & Press Attachment. (option) THERMAL TRANSFER PRINTER VISION INSPECTION SYSTEMS

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • C60 Hot Stamp (Lot/Date Coding)
  • Missing Hot Stamp Imprint Check
  • Integrated Thermal Printer (Lot/Date, Bar Code and Graphics)
  • Dataflex or Similar Lot/Date Code Printer
  • Clear, Metalic or Color Label Sensor
  • End to end Transfer Plates
  • Infeed and outfeed Conveyor Extensions
  • Adjustable Tilt for Tapered Bottles
  • Feed Screw
  • Stainless Steel Raised Bed Sanitary Conveyor (Factory installed only)
  • Push and Press Attachment
  • 3-panel, 4-panel or 5-panel Labeling Attachments

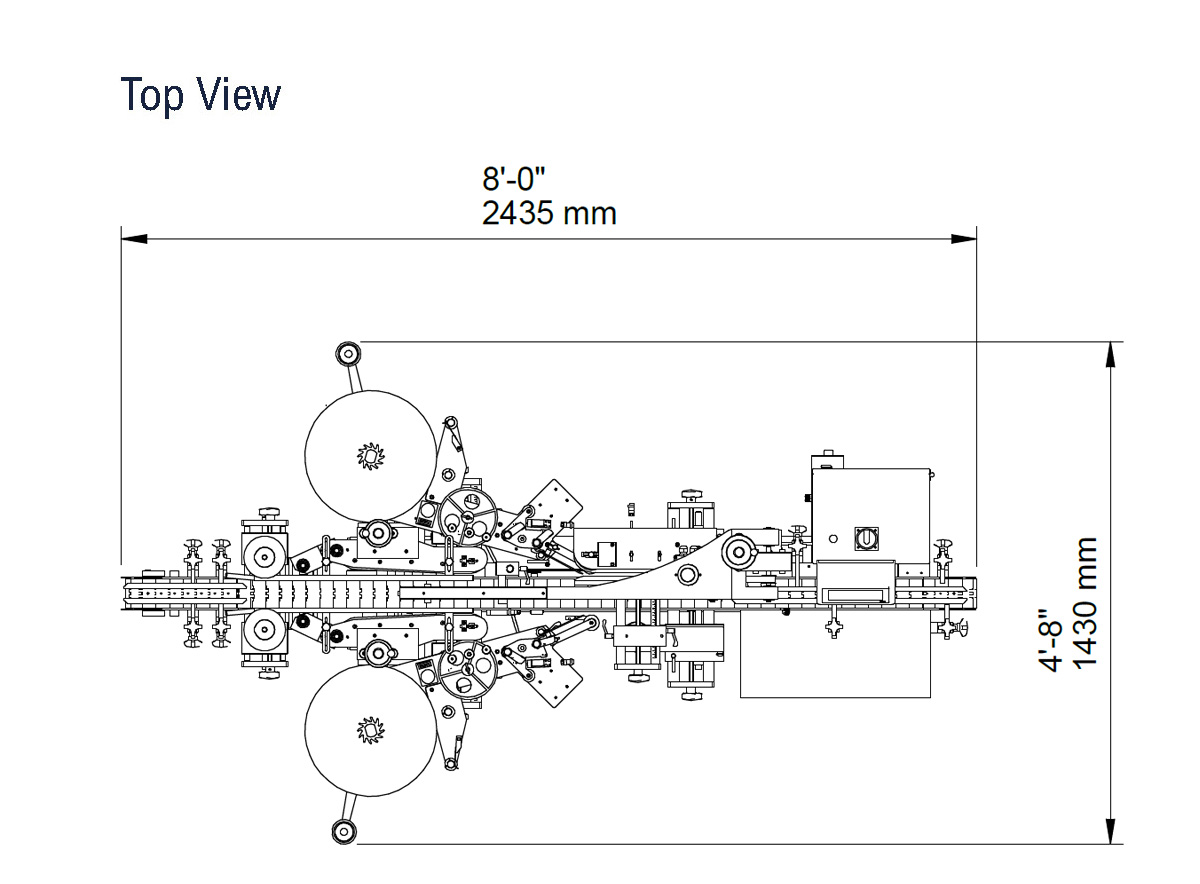

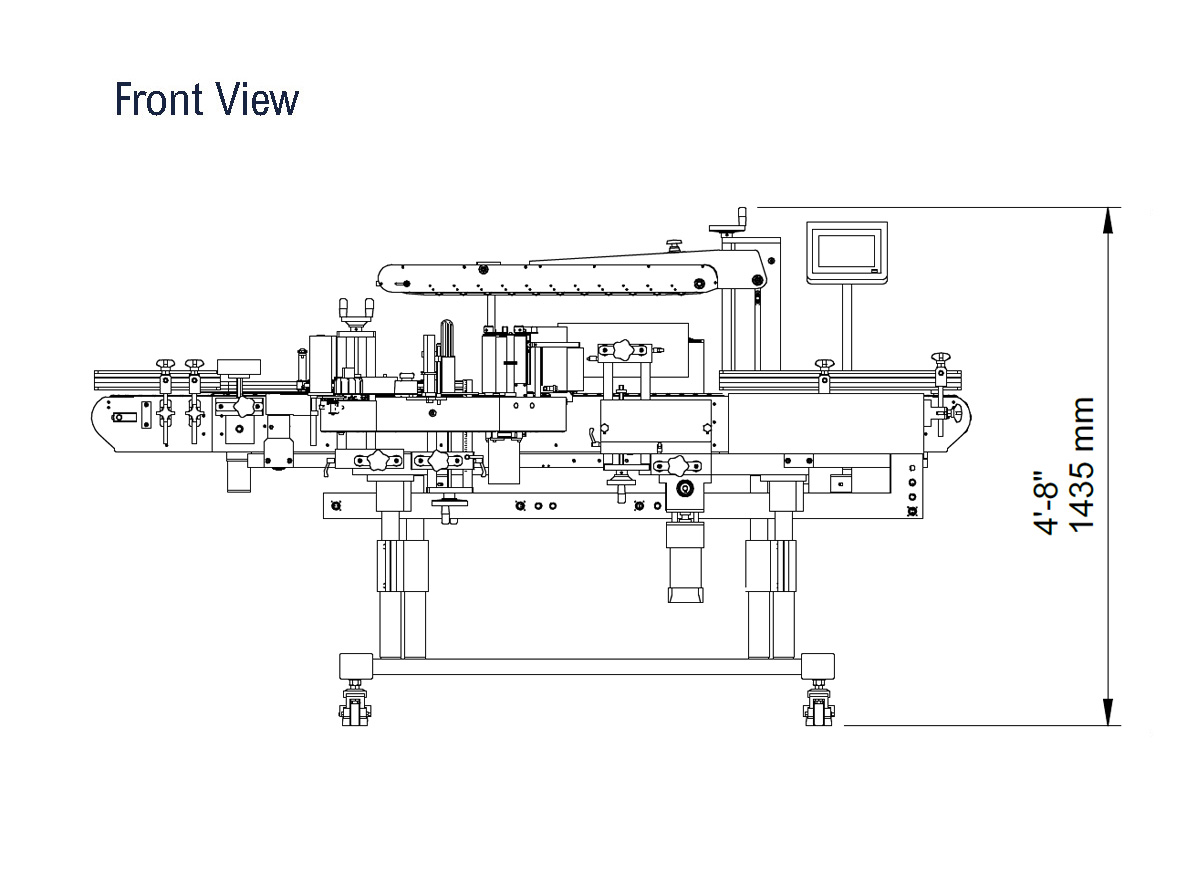

MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

Note: The actual rates may var y significantly depending on the following: products, product characteristics, required fill counts, quantity or volume, and bottle dimensions.

Technical Specifications CVC 430 Technical Specifications
Type U1
Productivity Up to 175 BPM (subject to trial confirmation) Dispense Speed: 23 M/min (75 ft/min)
Applicable Size Label:
Length: 15-250 mm (1/2" to 10")
Width: (dependent on label head type)
A: 15-80 mm (1/2" to 3")
B: 15-120 mm (1/2" to 4 3/4")
C: 15-150 mm (1/2" to 6")
D: 15-180 mm (1/2" to 7")
E: 15-220 mm (1/2" to 8 3/4")
F: 15-265 mm (1/2" to 11 1/2")
Flat/ Square Bottle:
Length: Flat Bottle: 30-110 mm (1 1/4" to 4 1/4")
Square Bottle: 30-200 mm (1 1/4" to 8")
Width: 30-100 mm (1 1/4" to 4")
Height: 75-320 mm (2 3/4" to 12 1/2")
Round Bottle:
Bottle with Cap Height: 50-220 mm (2" to 8 3/4")
Dia.: Ø30-110 mm (1 1/4" to 4 1/4")
Power 110/220 V, 50/60 HZ, 1 PH
Power Consumption 528 VA (110V: 4.8 A, 220V: 2.4 A)
Air Pressure 6 bar (87 psi)
Air Consumption 50 NL/min (1.8 CFM)
(for optional Lot/Date printer)
Consumption Machine Dimensions 2,435 x 1,430 x 1,435 mm (Including conveyor) (8’ x 4’-8” x 4’-8”)
Machine Weight 340 kg (750 lbs)
Noise Level ≤ 75 dB
