Tamper Evident Carton Sealer / Labeler

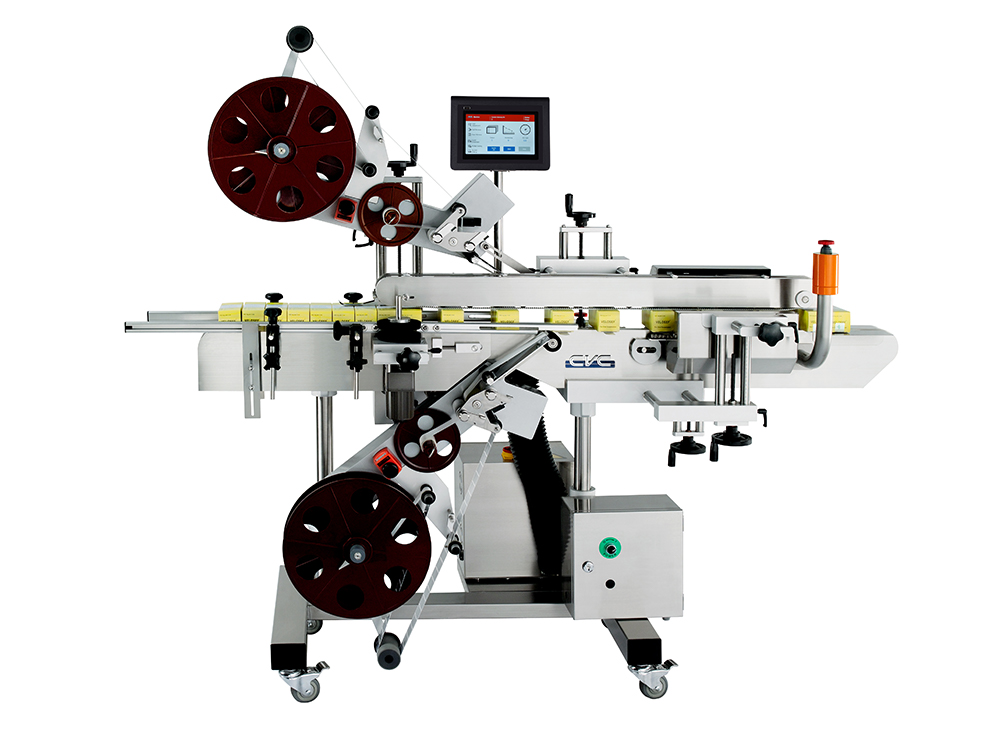

CVC 230

The CVC 230 is a carton sealing labeler featuring CVC exclusive selfset™ control system provides wrinkle-free labeling for top product labeling. The touch screen panel display shows all automatic settings.

All CVC labelers include our SelfSet™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

STANDARD FEATURES

  • SelfSet™ Auto Adjusting Control System
  • Stepper Motor (or Servo Motor) Driven Head Labeling
  • Touch Screen HMI
  • Label Head with up to ± 1 mm (1/32”) Accuracy (*Bottles/ Containers Dependent)
  • Label Sensor for Paper or Opaque Labels
  • Stainless Steel Frame on Lockable Casters
  • Stainless Steel Flatbed Conveyor, 6” Wide Endless Green Belt
CVC 230
CVC 230

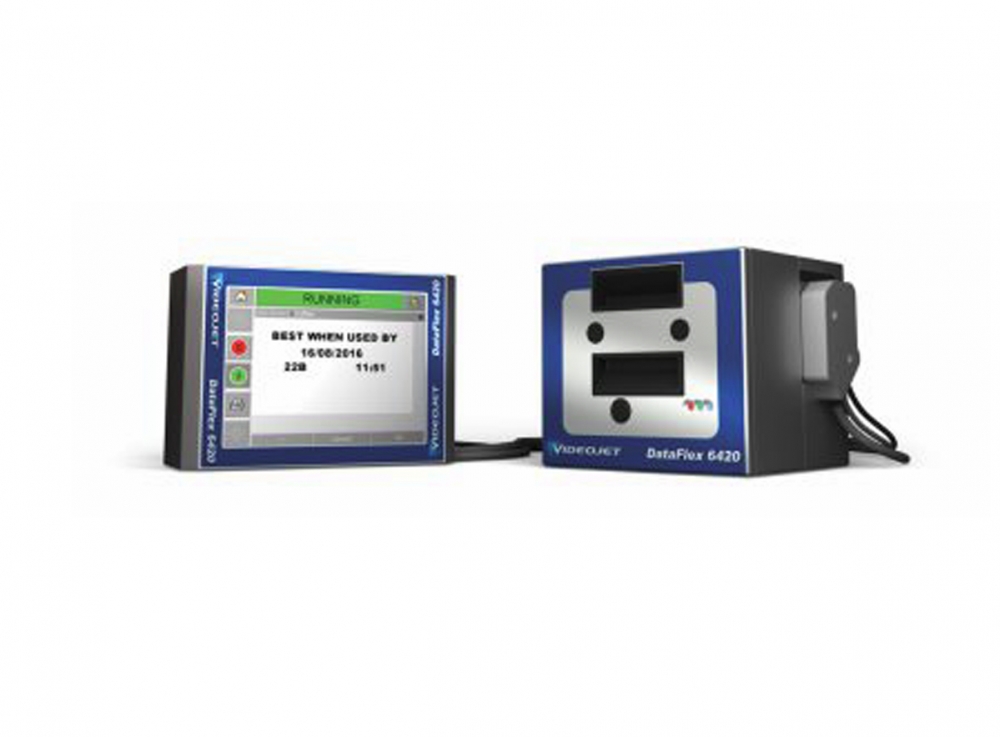

THERMAL TRANSFER PRINTER
THERMAL TRANSFER PRINTER
CVC 230
CVC 230
CVC 230
CVC 230
Previous Next Play Pause
CVC 230 THERMAL TRANSFER PRINTER CVC 230 CVC 230

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • C60/ C70 Hot Stamp (Lot/Date Coding)
  • Missing Hot Stamp Imprint Check
  • Integrated Thermal Printer (Lot/Date, Bar Code and Graphics)
  • Dataflex or Similar Lot/Date Code Printer
  • Clear, Metalic or Color Label Sensor
  • End to end Transfer Plates
  • Infeed and outfeed Conveyor Extensions
  • Separator Wheel for Controlled Spacing

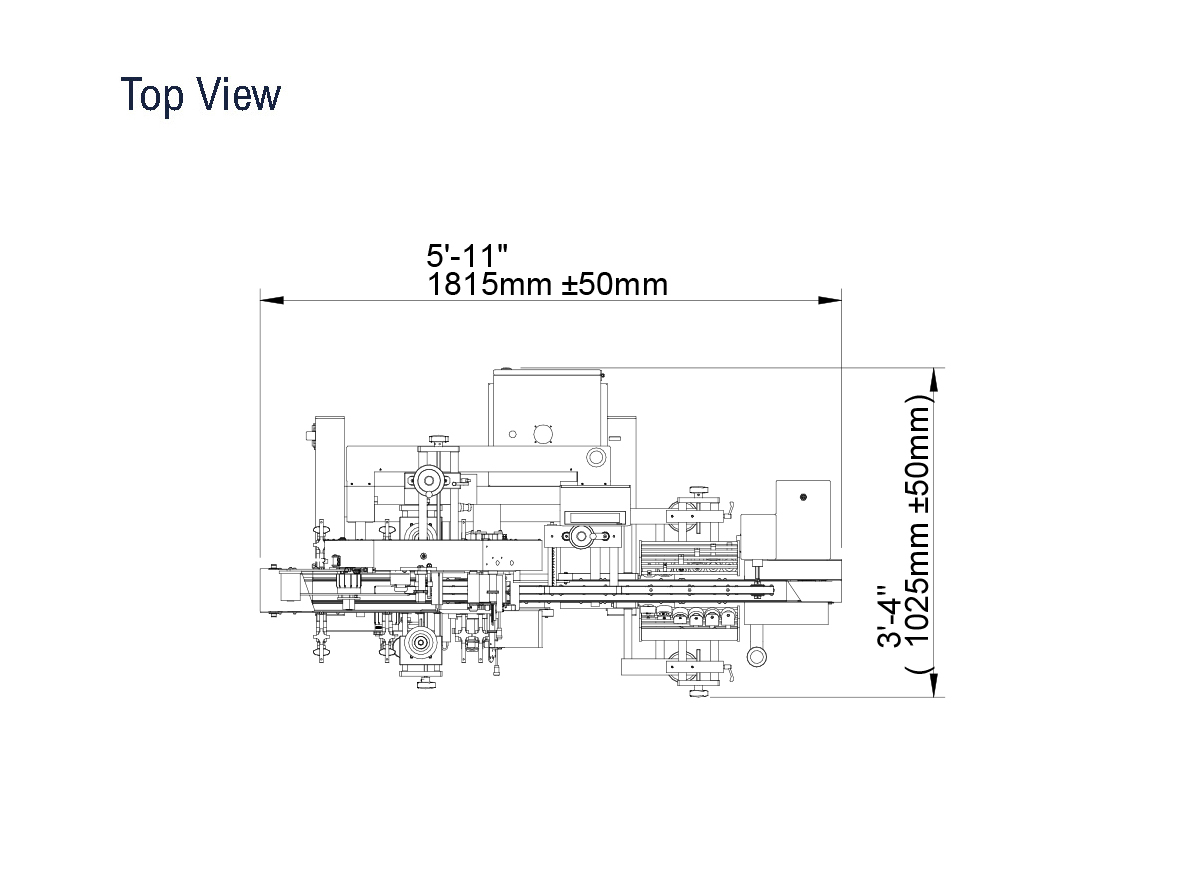

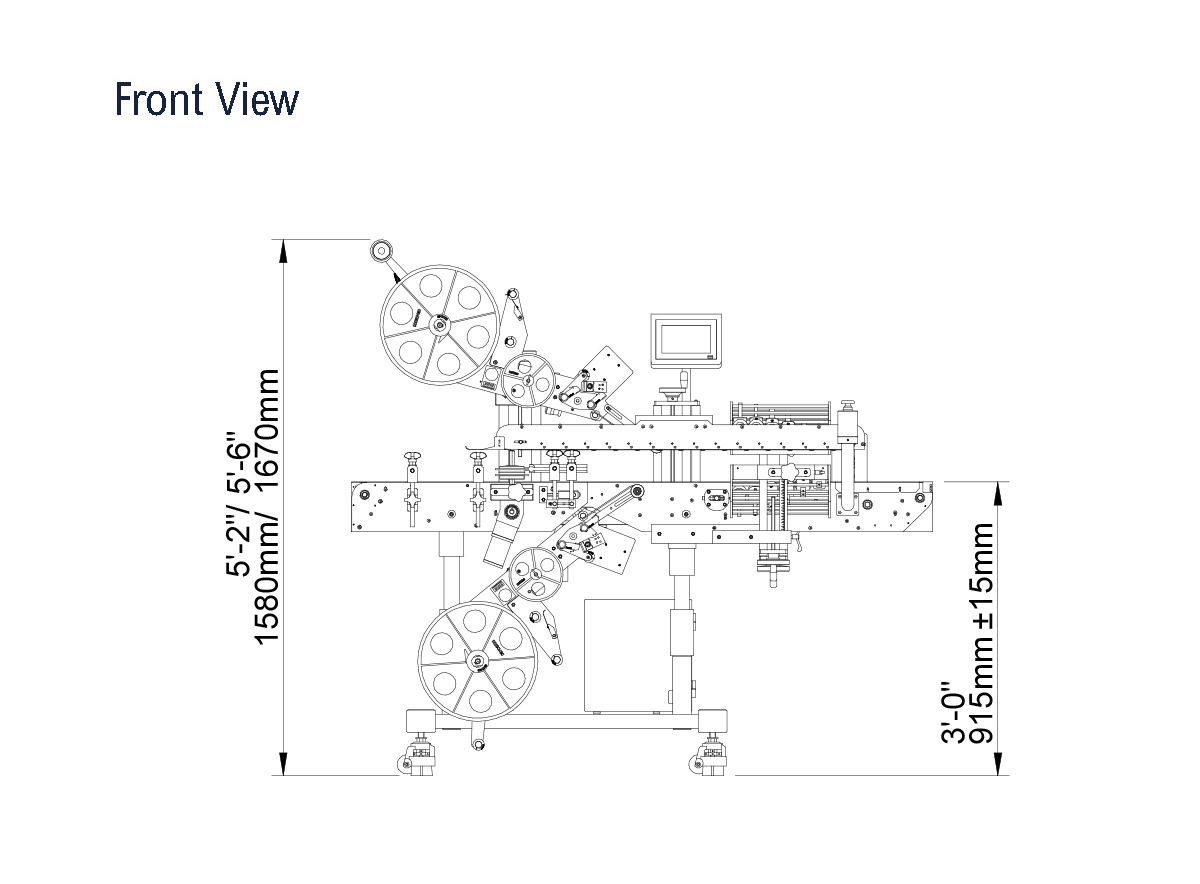

MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

Technical Specifications CVC 230 Technical Specifications
Type U1A / U1AW
Productivity Up to 180 PPM (subject to trial confirmation) Dispense Speed: 30 M/min (98 ft/min)
Applicable Size Label:
Length & Width: 16-30 mm (5⁄8" to 1 1⁄4")
Optional: 10-15 mm (3⁄8" to 1⁄2")
Carton:
Length: (depend on conveyor type)
U1A: 75-120 mm (3“ to 4 3⁄4")
U1AW: 105-200 mm (4 1⁄4" to 8”)
Width: 20-100 mm (3⁄4" to 4”)
Height: 10-100 mm (1⁄2" to 4”)
Power source 110/220 V, 50/60 HZ, 1 PH
Power Consumption 484 VA (110V: 4.4 A, 220V: 2.2 A)
Air Pressure 6 bar (87 psi)
Air Consumption 50 NL/min (1.8 CFM)
(for optional Lot/Date printer)
Machine Dimensions ( L x W x H ) 1,815 x 1,025 x 1,580-1,670 mm
(5’-11” x 3’-4“ x 5’-2“ to 5’-6“)
Machine Weight 270 kg (595 lbs)
Noise Level ≤ 75 dB
