TABLET/CAPSULE COUNTER

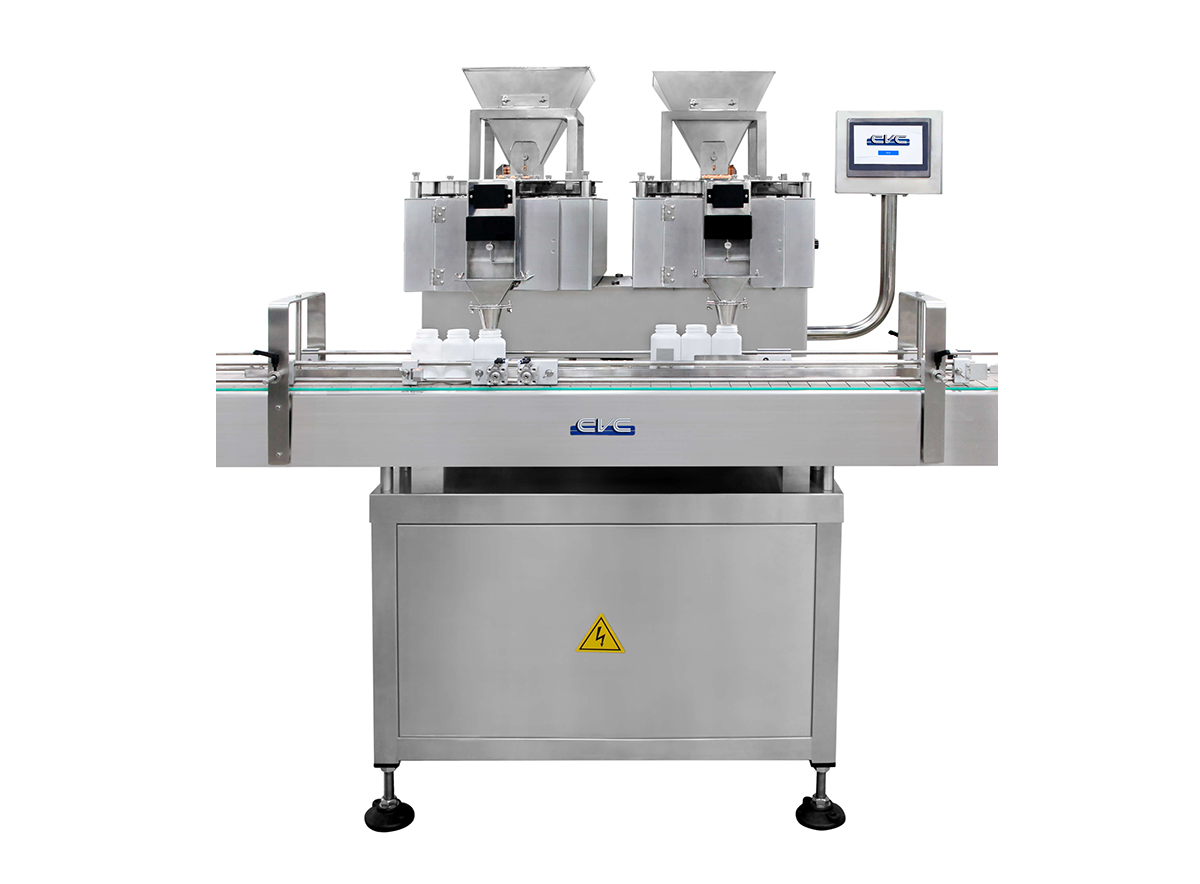

CVC 1000-TS

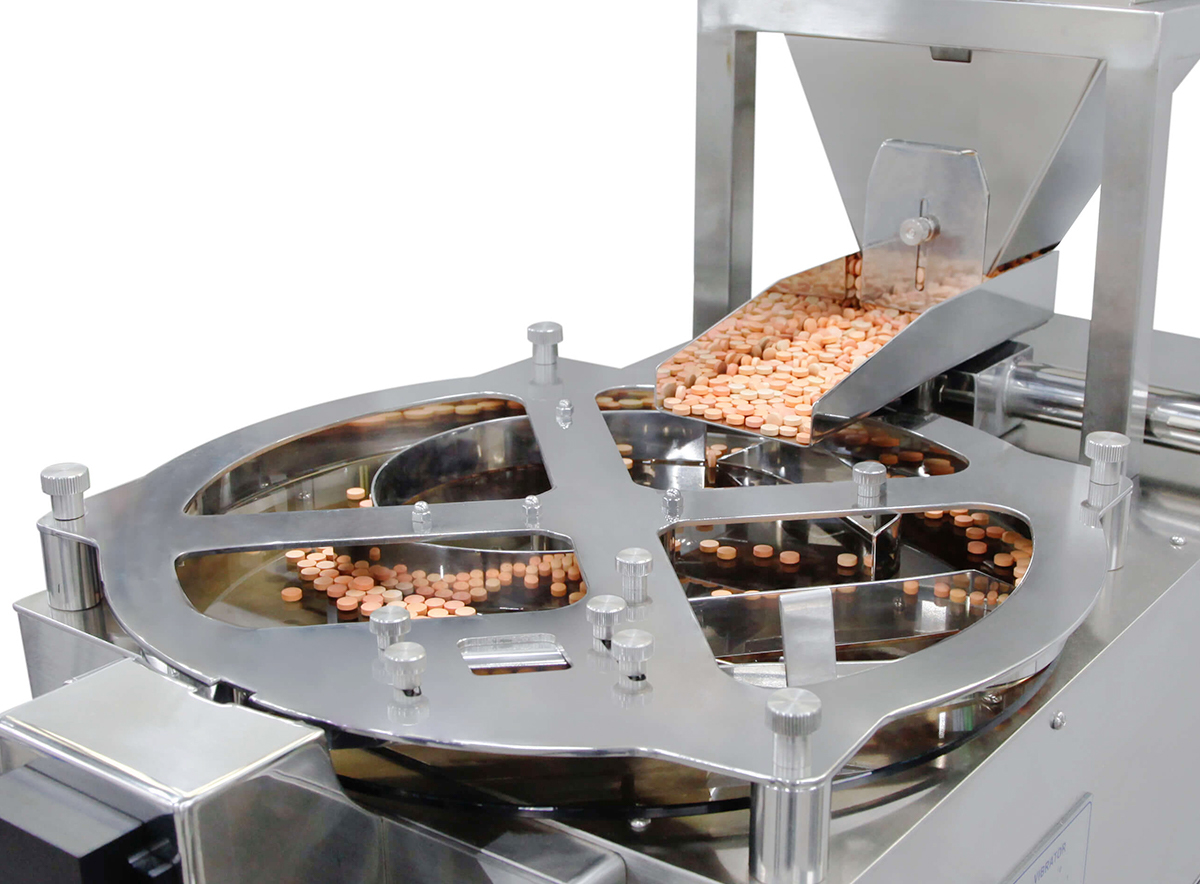

CVC tablet/ Capsule Counter has a simple and reliable design: tablets or capsules loaded from a stainless steel hopper are arranged by a rotary disc, and detected by optical fiber sensors as they are counted and filled into the container.

STANDARD FEATURES

  • Double head counter with a dual-track conveyor.
  • Output:Tablet (round): 2,000- 4,000 PPM / Capsule: 1,200- 2,000 PPM
  • Easy operation and adjustment, minimal maintenance and fast products changeover make CVC 1000-TS series become one of the most popular counters in pharmaceutical industries.
  • Operator can easily setup and adjust machine parameters from the touch screen.
  • Equipped with conveying and guiding system, CVC 1000-TS can be perfectly integrated with your existing lines.
  • Dust accumulating port is provided to secure accurate counting. (Vacuum unit is at customer's scope)
  • CVC 1000-TS series have comprehensive applications for colored capsules, transparent round softgel and coated or uncoated tablets.
  • Designs meet standards of cGMP.
CVC 1000-TS
CVC 1000-TS
CVC 1000-TS
CVC 1000-TS
Previous Next Play Pause
CVC 1000-TS CVC 1000-TS

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • A dust accumulator is attached inside of the machine to protect machine count accuracy.
  • PC cover for disc and vibrating chute.

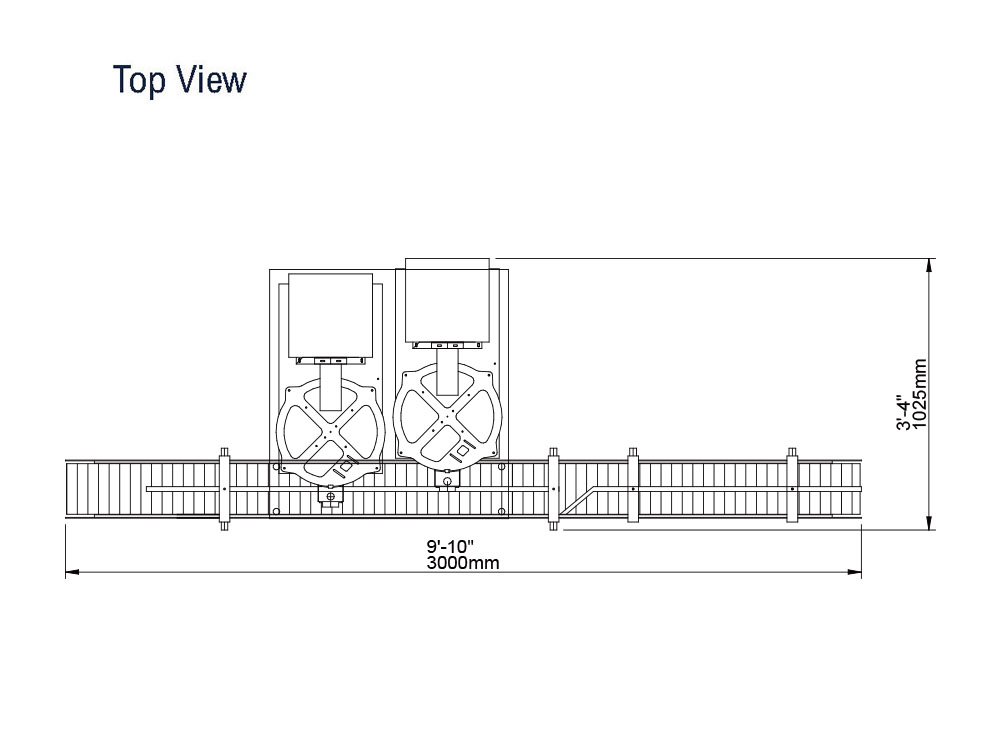

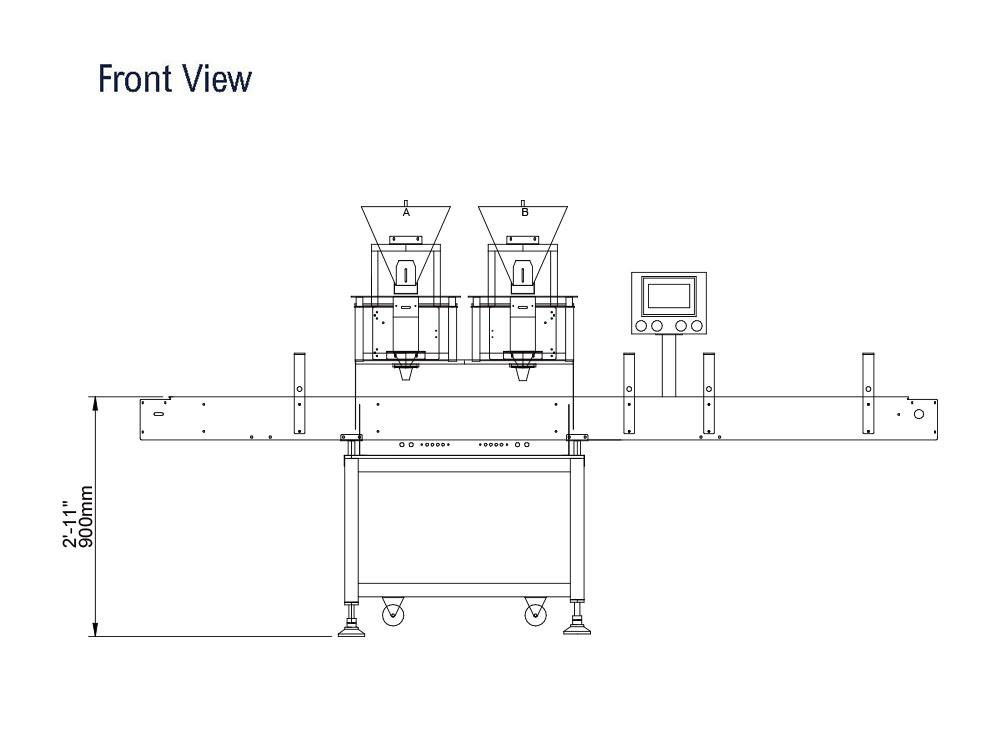

MACHINE LAYOUTS:

Technical data contained in this material are not binding and may be subject to change without prior notice.

Note: The actual rates may var y significantly depending on the following: products, product characteristics, required fill counts, quantity or volume, and bottle dimensions.

Technical Specifications CVC 1000-TS Technical Specifications
Productivity Round Tablet: 2,000-4,000 PPM
Capsule: 1,200-2,000 PPM
(subject to trial confirmation)
Applicable Size Round Tablet:
Dia: Ø3.5-15 mm ( 1/8” to 9/16”)
Height: 3.5-10 mm ( 1/8” to 3/8”)
Capsule: #00~#5
Bottle:
Dia.: Ø40-75 mm (1-1/2” to 2-3/4”)
I.D. of Mouth: Ø25-75 mm (1” to 2-3/4”)
Height: 60-160 mm (2-3/8” to 6-1/4” )
Power source 110 V/ 220 V, 50/60 HZ, 1 PH
Power Consumption 110 V: 1,200 VA (10.9 A)/ 220 V: 1,200 VA (5.5 A)
Air Pressure 6 bar (87 psi)
Air Consumption 99 NL/min (3.5 CFM)
Machine Dimensions ( L x W x H ) 2,500 x 1,025 x 1,636 mm (approx)
(8’-2.4“ x 3’-4.3” x 5’-4.4”)
Machine Weight 300 kg (661 lbs)
Noise Level ≦ 78 dB
