CVC Technologies, Inc. USA. Leading pharma packaging.

Induction Capsealer

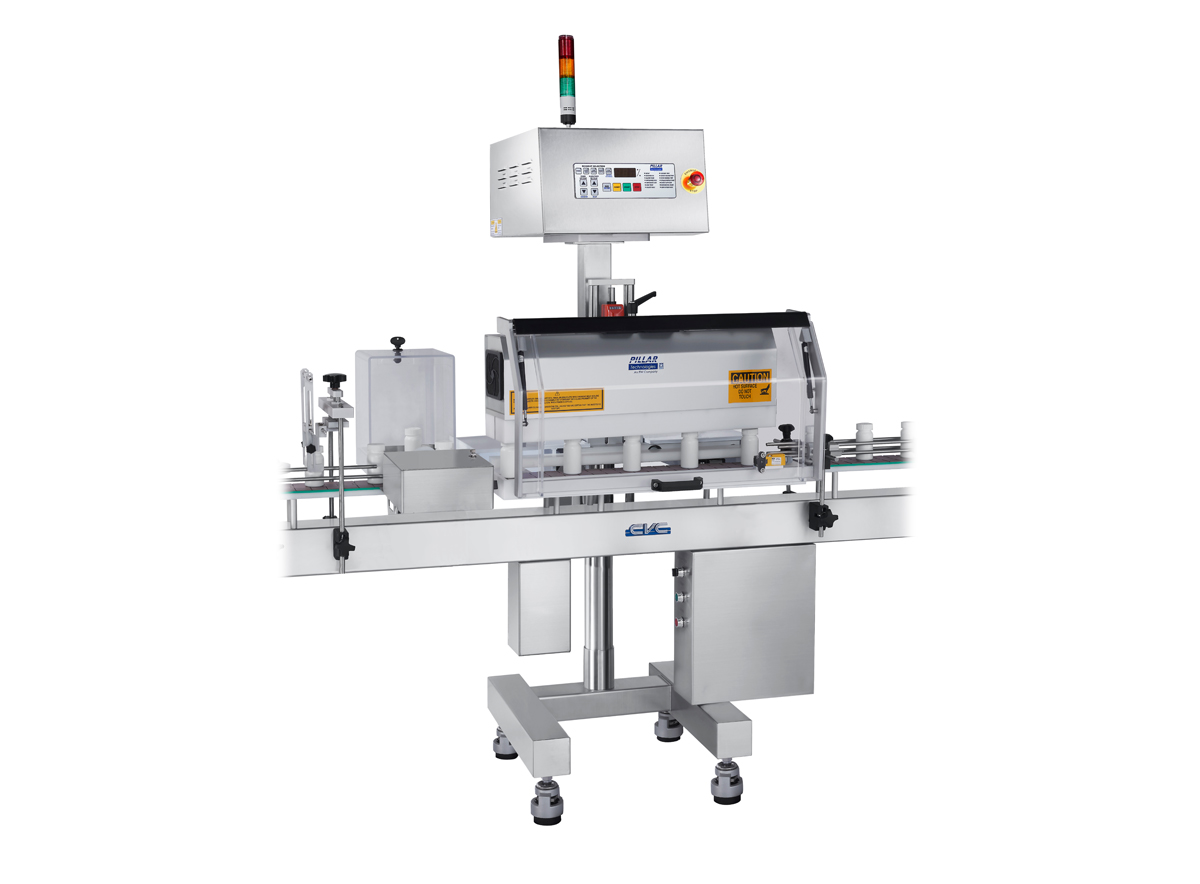

CVC 4000

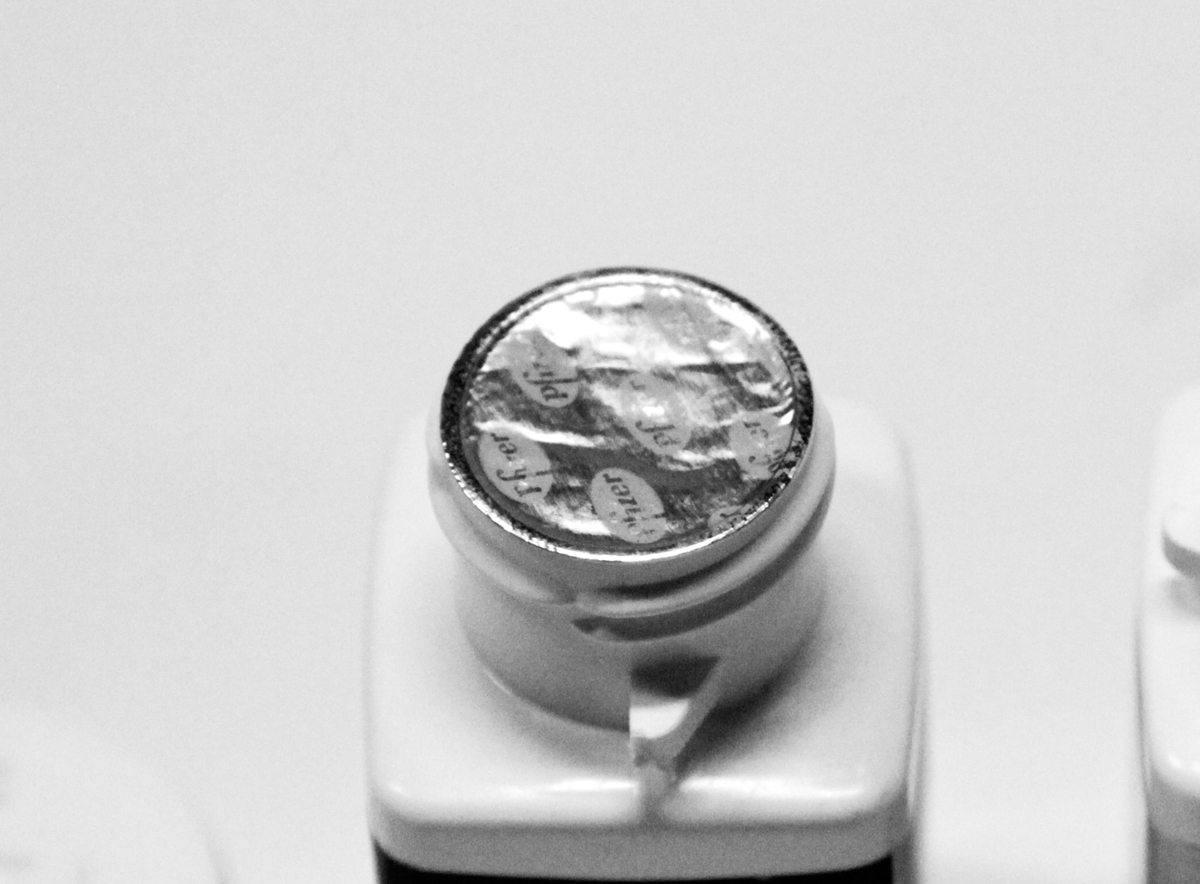

CVC 4000 Induction Capsealers add security and value to your products. The CVC induction system provides an effective means of tamper-evidence, improves shelf life and eliminates leaks. Once caps with foil liners are tightened to the bottle, the non-contact heating process is accomplished by the high frequency induction field, with almost no heat transfer to product.

STANDARD FEATURES

  • Display touchscreen instruction for machineoperation is available in two languages
  • SS-304 stainless steel bin, frame, enclosurepanels
  • Memory capacity for 10 jobs
  • Interlocked safety guarding
  • Bottle backlog sensor at outfeed
  • ISO 9001:2000 certified
  • SS-316 Contact Parts
CVC 4000
CVC 4000
CVC 4000
CVC 4000
Previous Next Play Pause

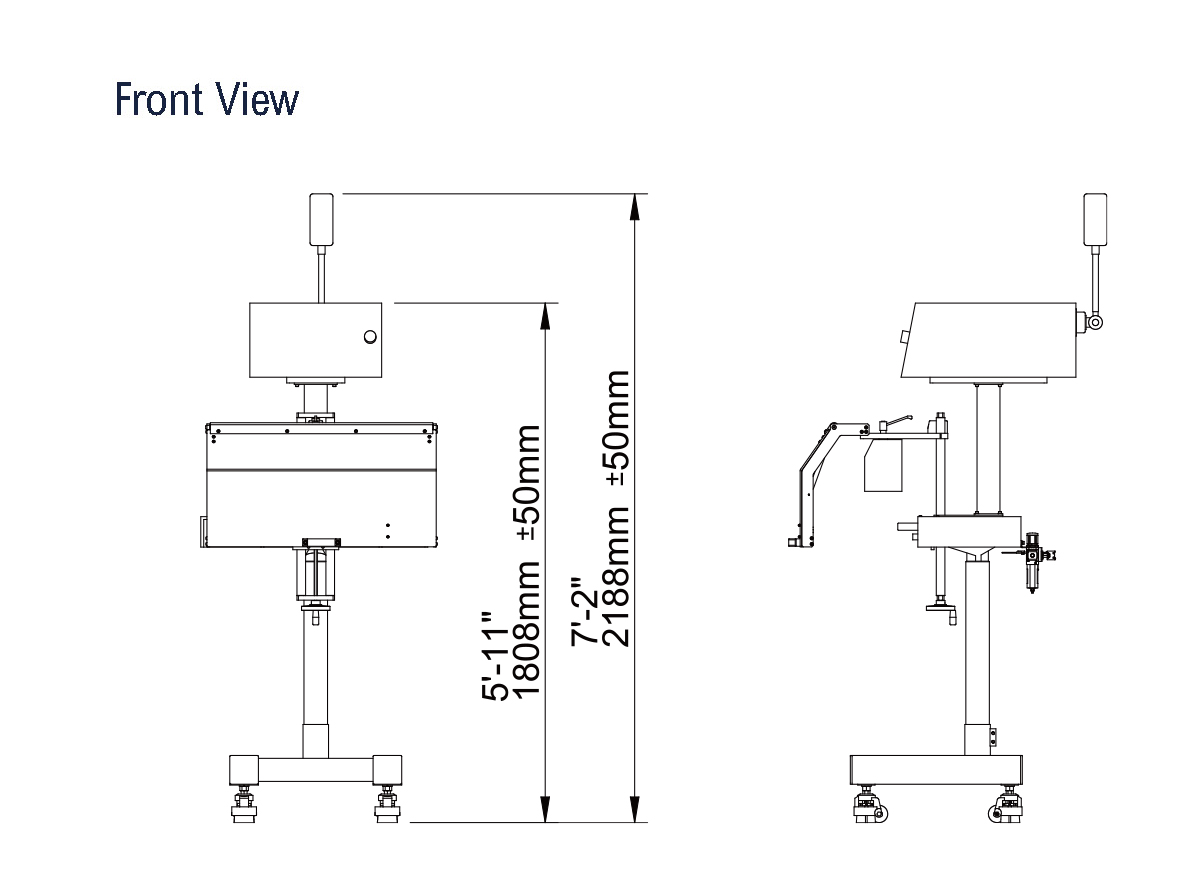

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

Technical Specifications CVC 4000 Technical Specifications
Cap Diameter 1 ⅛" to 4 ⅜" (30mm - 110mm)
Power source 240V, 50/60 Hz, Single Phase
Power output 4.0 KW
Consumption Machine Dimensions 5'-6" x 3'-5" x 4'-8" (828 x 1245 x 1510 mm) (L x W x H)
Speed Up to 200 Bottles per Minute (BPM)
Machine Weight 353 lbs. (160 kg)

CATALOG DOWNLOAD

Ask about this product
