CVC Technologies, Inc. USA. Leading pharma packaging.

Vibratory Press Capper

CVC 1201VP

The CVC 1201VP Vibratiory Press Capper is a very flexible machine designed to apply and press snap-on caps, measuring cups onto containers at rates of up to 50 bottles per minute. The CVC 1201VP is Siemens PLC Controlled. Options Include 3-Color Stack Tower Light, Cap Elevator, Cap Inspection (Missing Cap on Bottle, Crooked cap), Reject, and Reject Verification.

  • Built to cGMP Standards
  • Stainless Steel Construction
  • Quick and Easy Change Over

STANDARD FEATURES

  • Siemens PLC Controlled
  • Memory Capacity for 50 Jobs
  • Cap Press-on Station Equips with One Motorized Top Press Down Belt Assembly
  • Dual-belt Gripping System
  • Sanitary Conveyor ( 4½” Wide Belt Standard, Length: 2750 mm)
  • Safety Guard for CVC 1201P Press Capper
  • Integrated Customized Cap Vibratory Bowl Feeder/Sorter with Mounting Stands and Swivel Casters
  • ISO 9001:2015 Certified

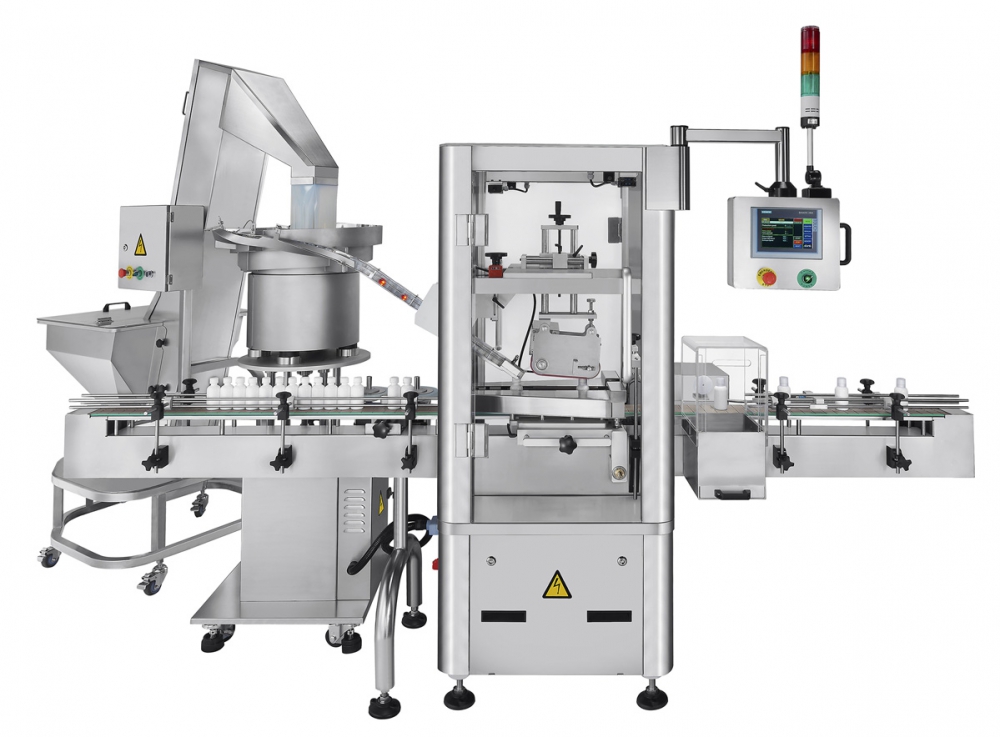

CVC 1201VP
CVC 1201VP

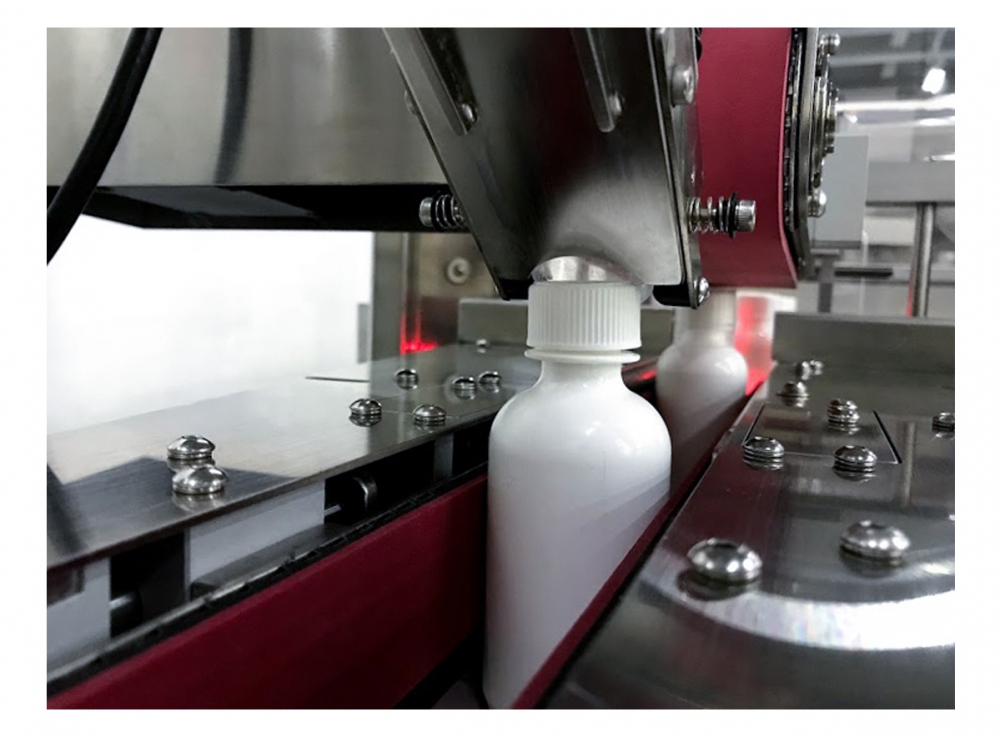

CVC1201V Vibratory Cap Sorter
CVC1201V Vibratory Cap Sorter

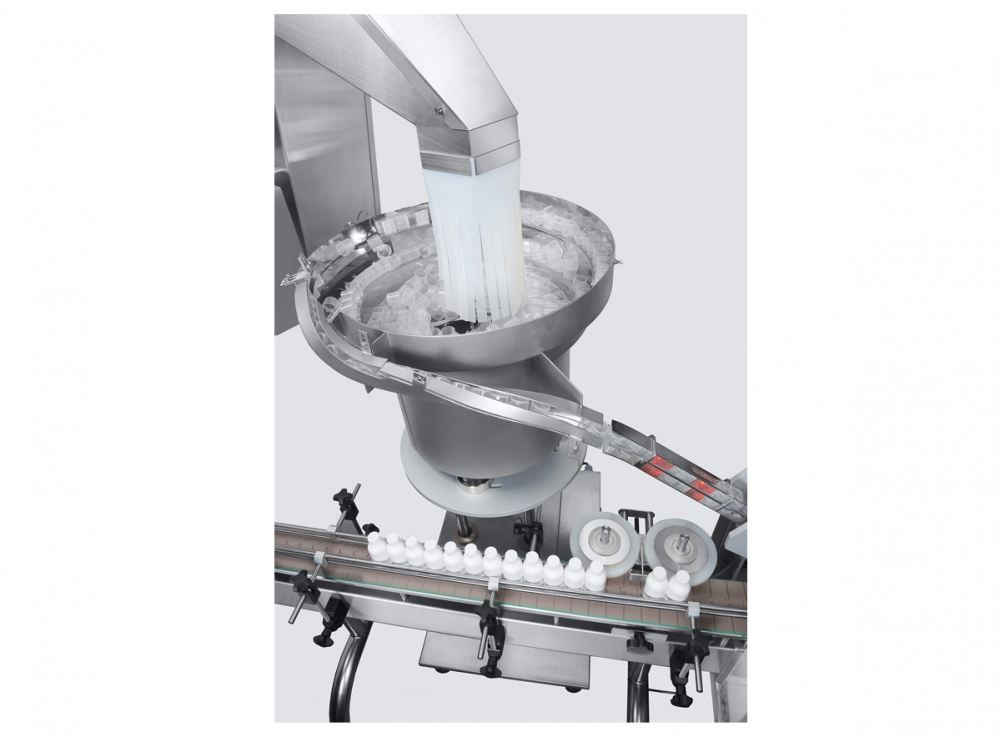

CVC1101 Cap Elevator/Feeder (option)
CVC1101 Cap Elevator/Feeder (option)
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Infeed/Outfeed Conveyor Extensions (4¼” Wide Belt Standard)
  • 3-Color Stack Tower Light
  • CVC1101 Cap Elevator
  • Cap Inspection Package (No Cap, Crooked Cap)
  • Reject System, Reject Verification
  • Customized Dual-belt Gripping System
  • Customized Cap Vibratory Bowl Feeder
  • 21 CFR Part 11 License
  • OPC UA for data collection



MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year par ts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 1201VP Technical Specifications
Cap Height ⅜" to 1" (10 mm - 25 mm)
Cap Diameter 1 ¼" to 3 ⅛" (Ø30mm - Ø80 mm)
Applicable Bottle Round
Power source 220V, 50/60 HZ, 1 phase
Power Consumption 1100 VA (5 A)
Air Pressure 6 bar (87 psi) (ISO 8573-1)
Air Consumption 28 NLit/m (0.98 cfm) (CVC1201P Press Capper)
24 NLit/m (0.84 cfm) (CVC1201V Vibratory Cap Sorter)
Consumption Machine Dimensions 9'-0" x 4'-0" x 7'-3" (2,750 mm x 1,215 mm x 2,210 mm) (L x W x H)
Speed Up to 50 BPM (subject to trial confirmation)
Bottle Height 3 ⅛" to 7 ⅞" (80 mm - 200 mm) (* Sujbect to our factory evalaution)
Bottle Diameter 1 ¼" to 3 ⅛" (Ø30mm - Ø80 mm) (* Sujbect to our factory evalaution)
Machine Weight 416 kg (918 lbs) (CVC1201P Press Capper)
293 kg (645 lbs) (CVC1201V Vibratory Cap Sorter)
Noise Level ≤ 80 dB
