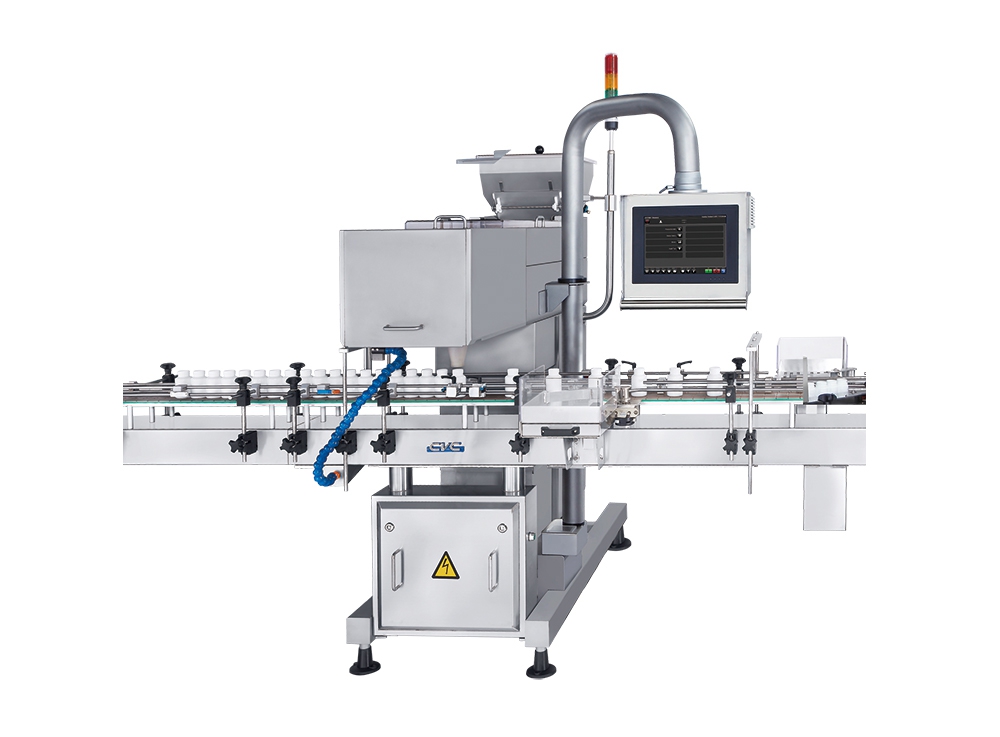

ELECTRONIC 12-CHANNEL COUNTER

CVC 1220C

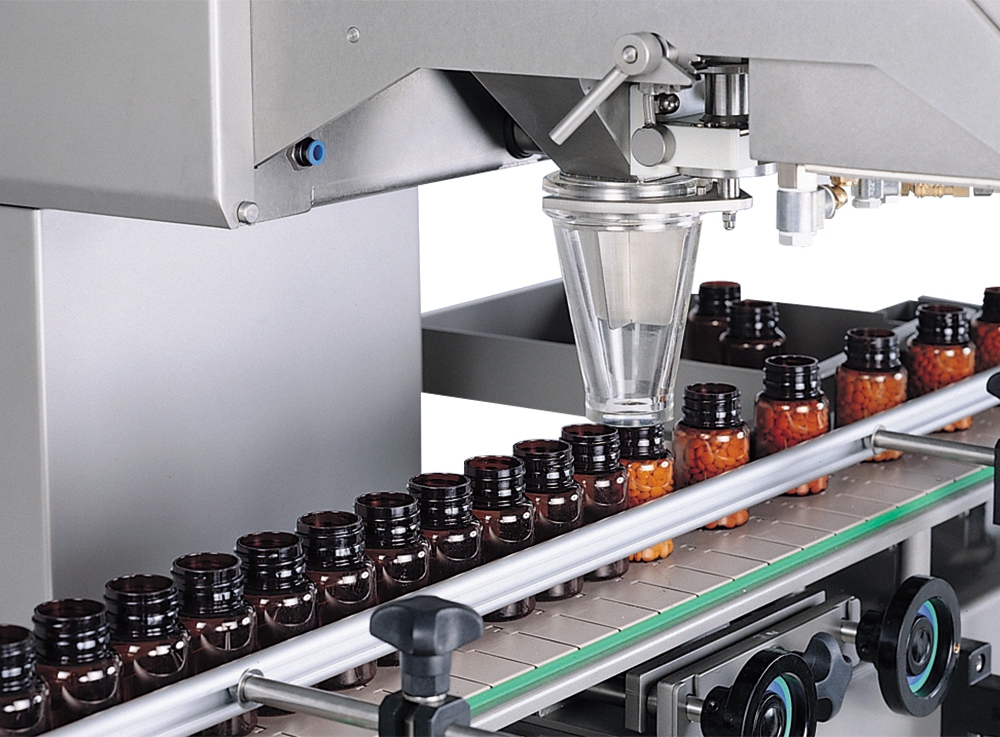

The CVC 1220C is an Electronic Channel Counter designed for high speed, highly accurate counting of tablets, capsules, and soft gels. The machine comes standard with an automatic dust compensation system, dual vacuum ports, product count verification, and reject. The 1220C can be setup to run one bottle using all 12 channels. Options include hopper level control with tower Lamp, upside down bottle sensor, static eliminator bar, channel blocker, and floor loaded tablet prefeeder.

STANDARD FEATURES

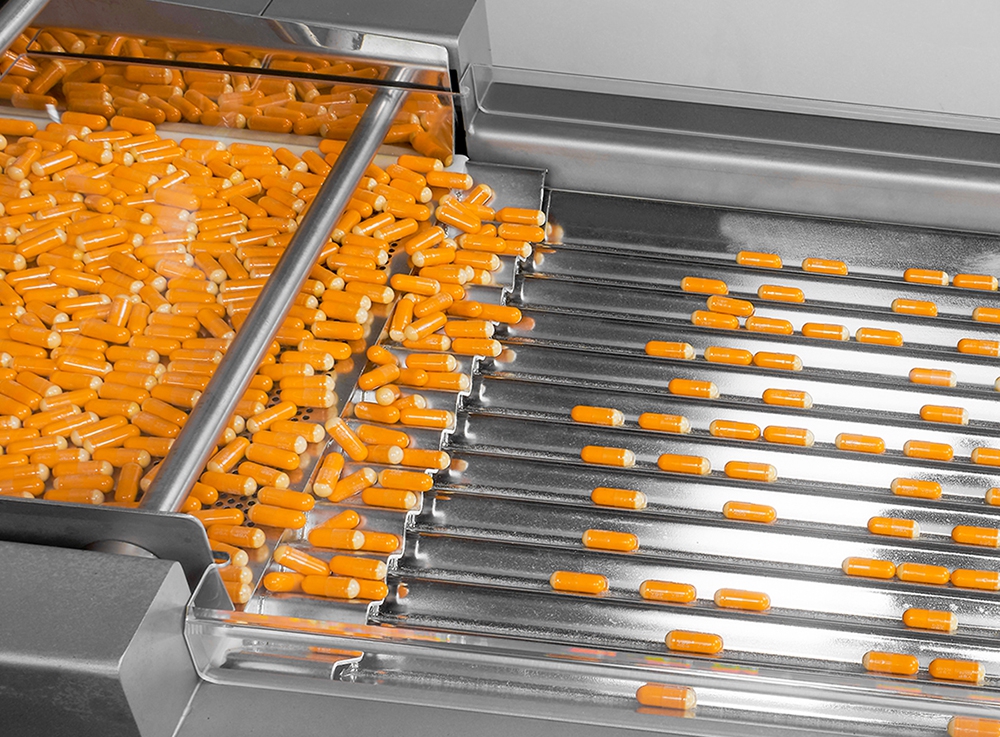

  • 12 V-shaped channels per head (tool less change over)
  • Auto dust compensation and dual dust extraction ports
  • Powered height adjustment and track- full/empty sensors
  • 2.83M-motorized single lane sanitary conveyor (single head)
  • 4.95M-motorized dual lane sanitary conveyor (dual head)
  • Rejection System
  • Memory capacity for up to 1000 jobs
    (*Requires Touch Screen controller)
  • 21CFR Part 11 Compliant
CVC 1220C
CVC 1220C

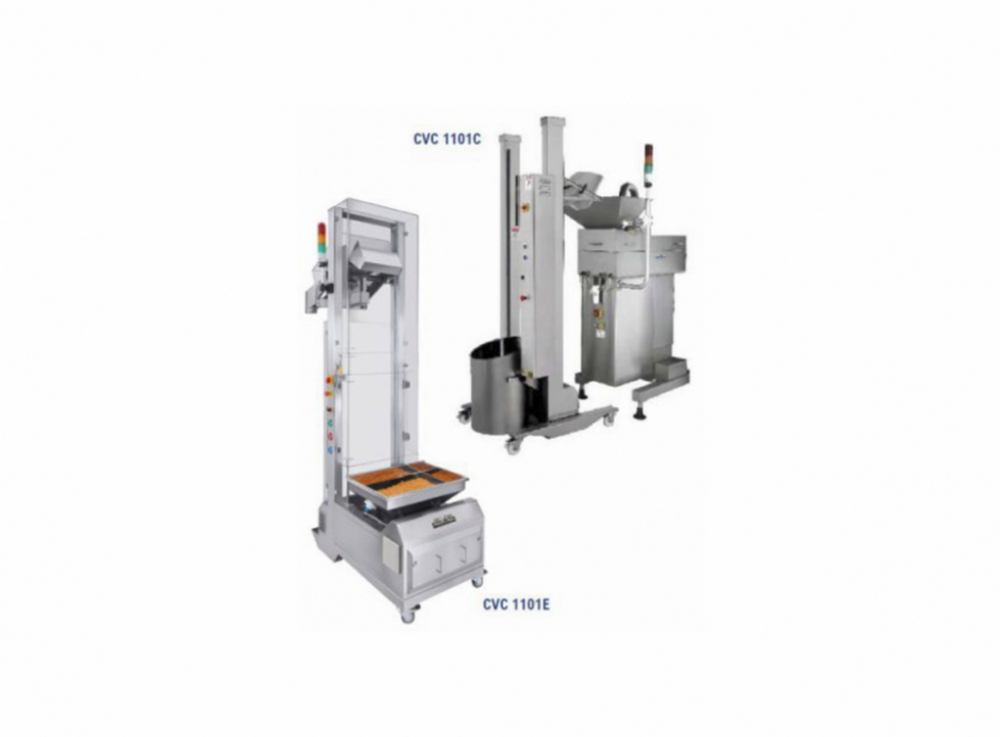

OPTIONAL: TABLET FEEDERS
OPTIONAL: TABLET FEEDERS

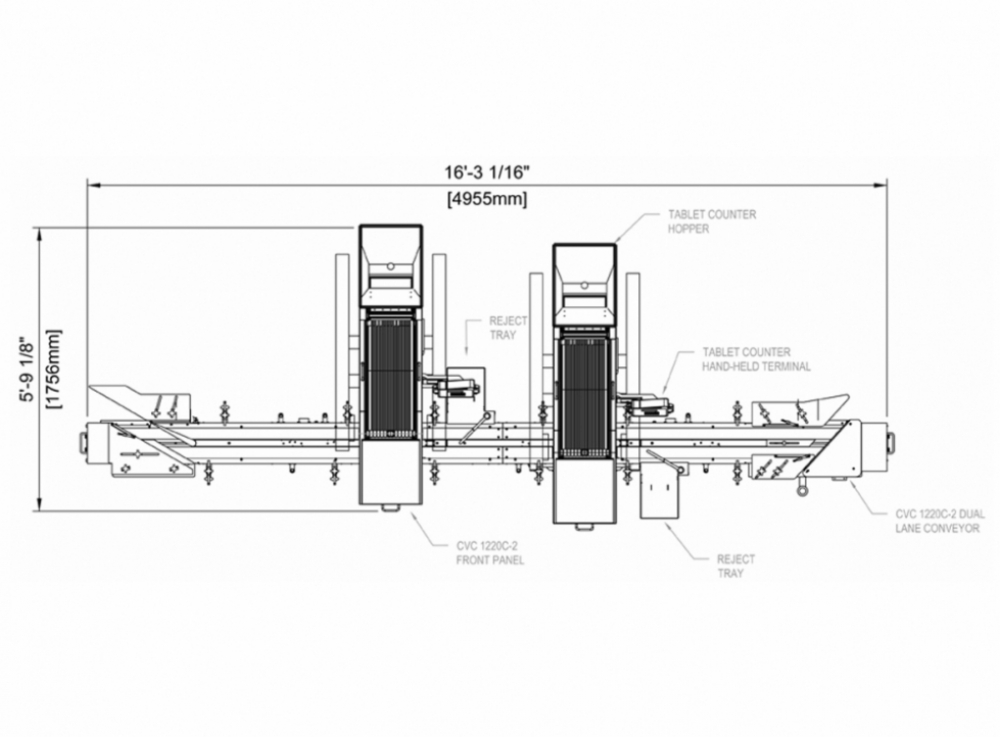

CVC1220C-2 WITH  DUAL LANE CONVEYOR
CVC1220C-2 WITH DUAL LANE CONVEYOR
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Channel blocker
  • Container upside down or fallen sensor
  • Floor loaded pre-feeder with integrated controls
  • Hopper level control system with tower lamp
  • Industrial PC, Windows 10
  • Static eliminator bar
  • Dual counting heads are available
  • Pre-feeding system
  • Customized vibratory plates

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year par ts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 1220C Technical Specifications
Power source 220V, 50/60 Hz, Single Phase
Power consumption 4 Amp
Air Consumption 7 cfm (200 L/sq. cm)
Machine dimensions 5'-10" x 2'-3" x 6'-2" (1776mm x 680mm x 1870mm) (L x W x H)
Speed Up to 55 bpm on a count of 100 products
Hopper Capacity 30 L
Bottle Height 1½" to 7¾” (38mm-197mm)
Bottle Diameter ¾” to 4" (19mm-100mm)
