CVC Technologies, Inc. USA. Leading pharma packaging.

Tablet/Capsule Elevator Feeder

CVC 1101C

The CVC 1101C pre-feeding systems is pharmaceutical grade low profile tablet pre- feeders, designed with a streamline easy-to-clean hopper, that would accommodate both tablets and capsules. The system is a compactly designed with hopper bin lifting system to automatically elevate and deliver tablets or capsules from floor level to the hopper of the counter.

The CVC 1101C is primarily used with single counting system configurations.

STANDARD FEATURES

  • On/off is automatically triggered.
  • Timer for tablet/capsule feeding time control.
  • Accompany with lower vacuum dust extraction port, dust accumulation is minimized.
  • Height adjustment is electrically controlled with auto lock; hopper is hooked when power cuts.
  • All contact parts are made of SS316.
  • Full cGMP compliance.

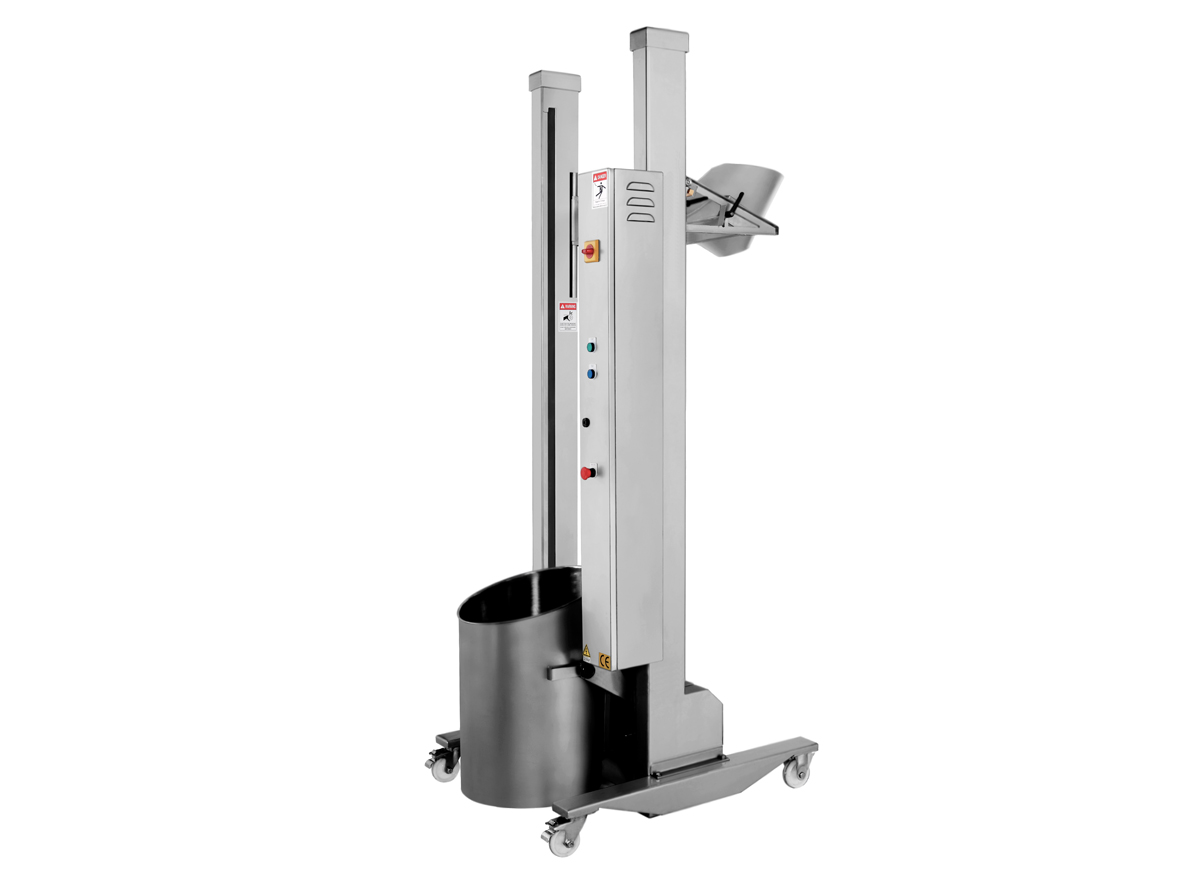

CVC 1101C
CVC 1101C

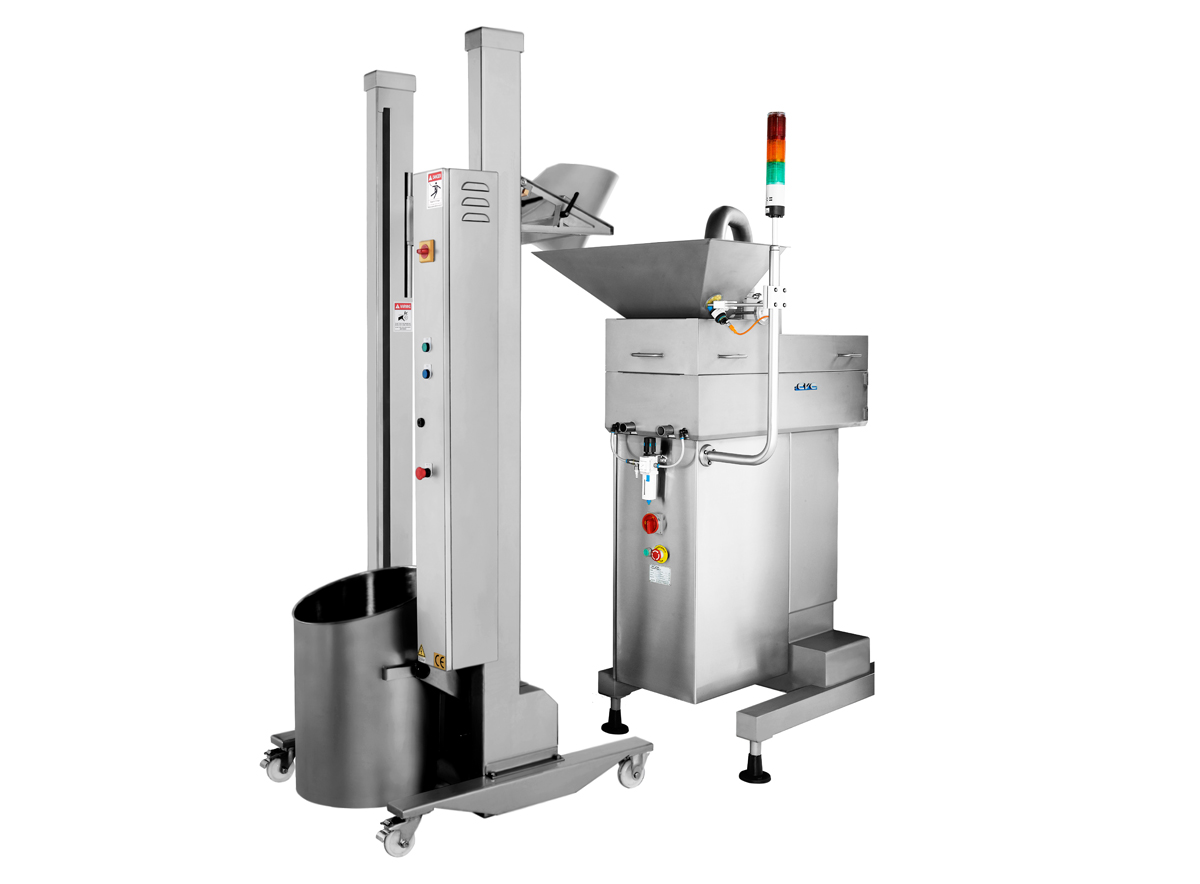

CVC 1101C + CVC 1220
CVC 1101C + CVC 1220
Previous Next Play Pause

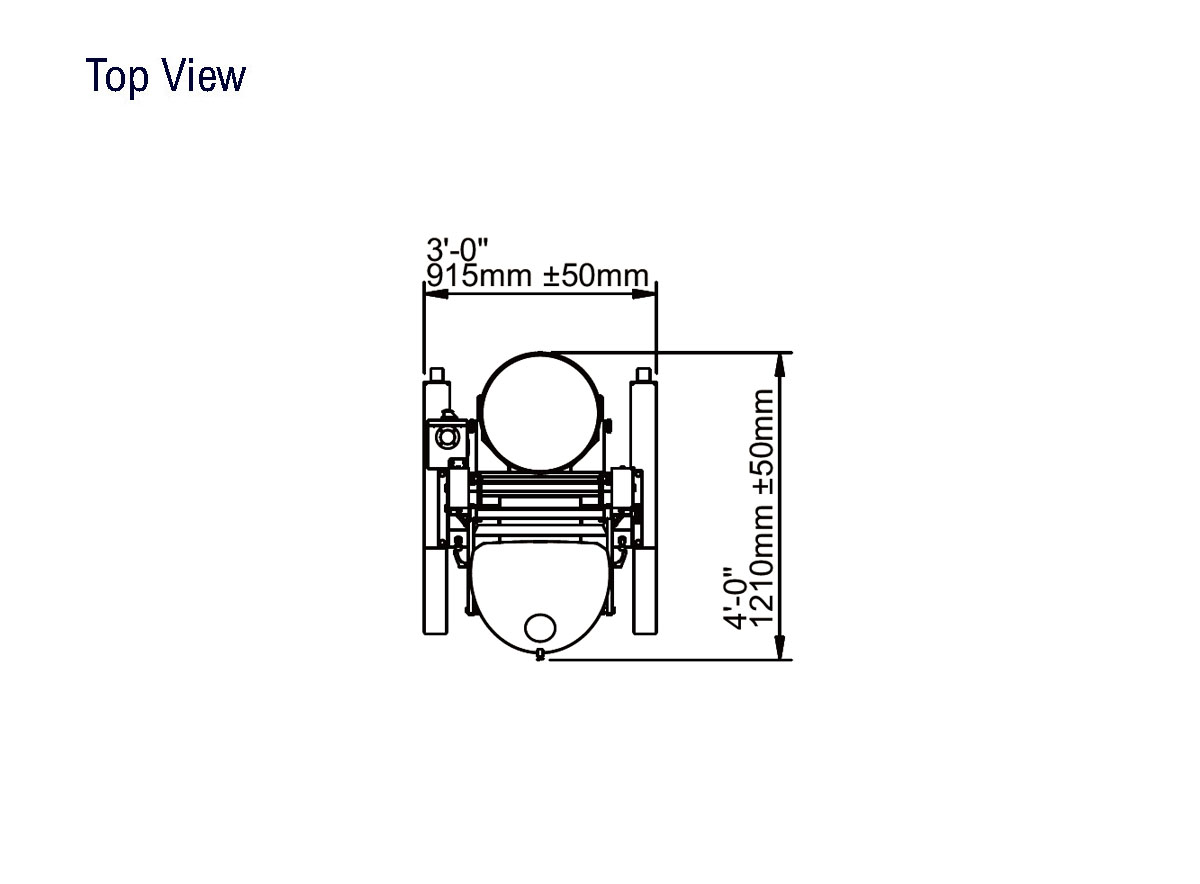

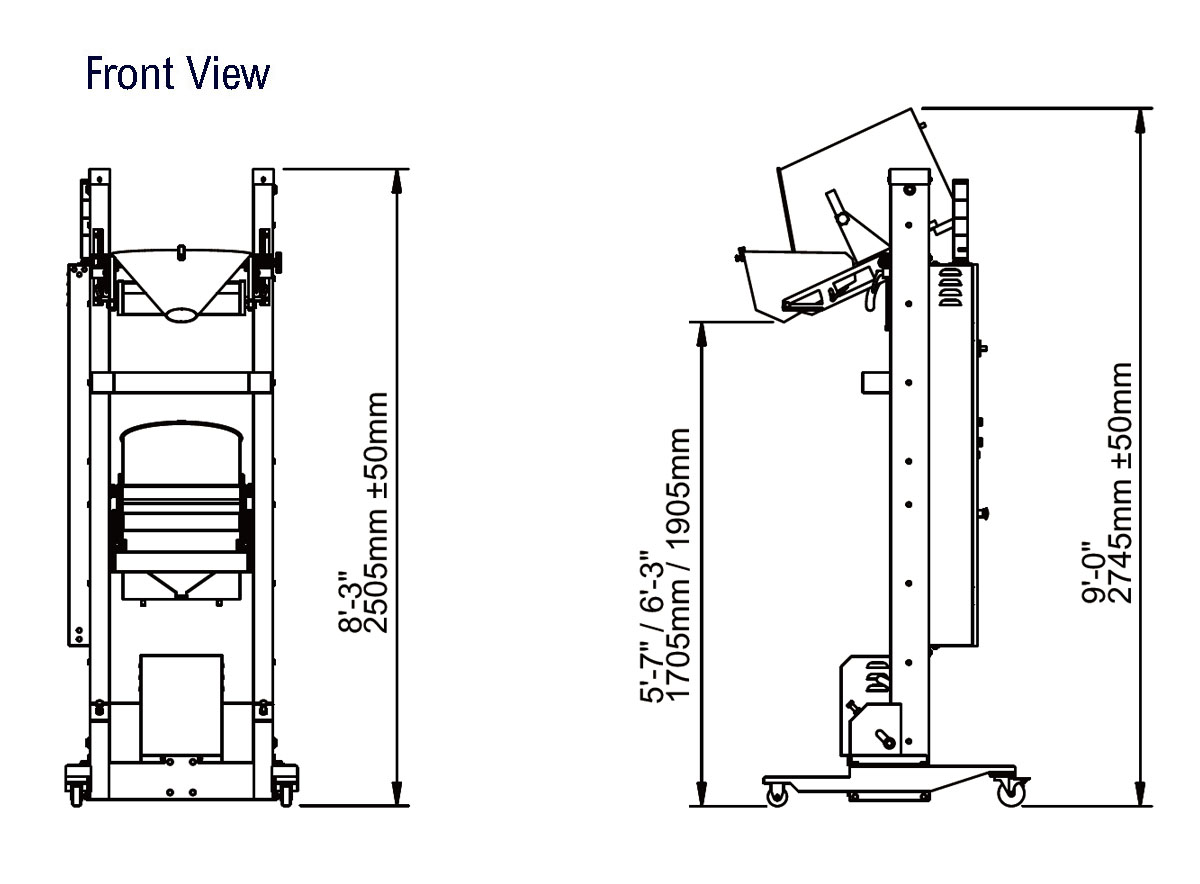

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year par ts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 1101C Technical Specifications
Hopper Capacity 2.5 cu. ft. (70L)
Power source 220V, 50/60 Hz, Single Phase
Power Consumption 750 Watts (3.4 Amps at 220V)
Consumption Machine Dimensions 1210mm x 912mm x 2743mm (L x W x H)
